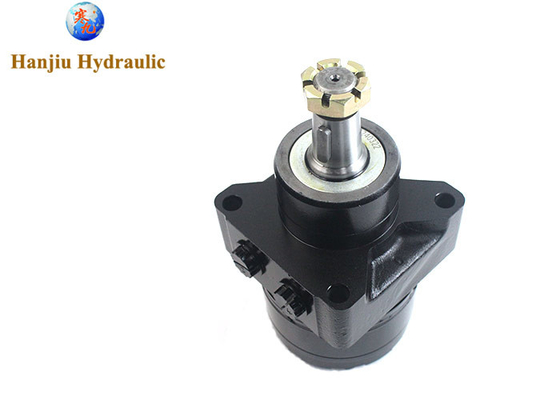

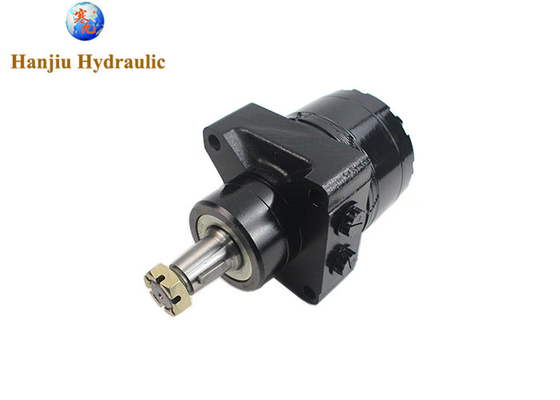

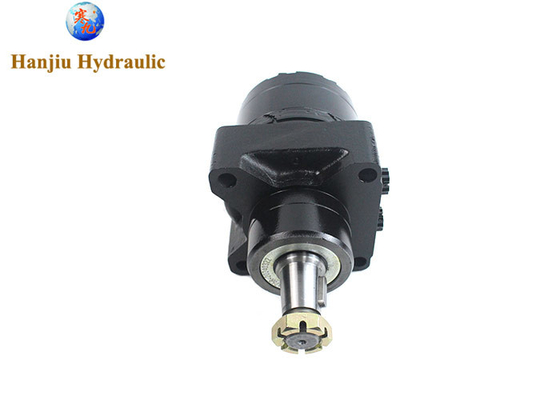

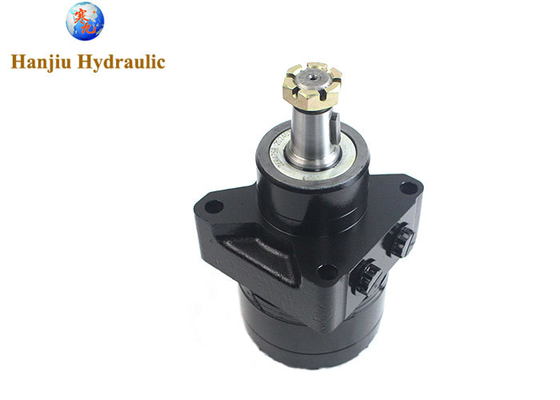

Roller Stator RE 530/531 High Torque Motor Wheel Drive Motor With Tapered Shaft

Roller Stator RE 530/531 High Torque Motor Wheel Drive Motor With Tapered Shaft
Roller Stator RE 530/531 High Torque Motor Wheel Drive Motor With Tapered Shaft
video play

Large Image :  Roller Stator RE 530/531 High Torque Motor Wheel Drive Motor With Tapered Shaft

Product Details:
Place of Origin: China
Brand Name: HANJIU
Certification: CE, ISO9001
Model Number: BMER-2-475-TS-T4-R-B
Payment & Shipping Terms:
Minimum Order Quantity: 100 Pieces
Price: 170 usd/pc
Packaging Details: box, pallet
Delivery Time: 35 - 45 work days
Payment Terms: T/T, Western Union
Supply Ability: 10000 pieces per year
Contact Now
Detailed Product Description
Product: Low Speed High Torque Hydraulic Motor Model No.: BMER-2-475-TS-T4-R-B
Size: 470ml/r Flange: Wheel Flange
Shaft: 31.75 Tapered Shaft Rotation: CCW
Port: 7/8-14UNF Material: Cast Iron
Highlight:

wheel drive Roller Stator

,

tapered shaft Roller Stator

,

RE 530/531 Roller Stator

Roller Stator RE 530/531 high torque motor, wheel drive motor with tapered shaft



Quick review:



Model no.: BMER-2-475-TS-T4-R-B



matching White motor RE530/531 ;Parker TG series motor



displacement 470 ml/r
flange wheel mount
pilot 82.55*5
ports BMER-2-475-TS-T4-R-B
output shaft
Cone-Shaft Ø31.75, Parallel key
7.96×7.96×25.4
rotation right
paint black







Specification:



Type BMER BMER BMER BMER BMER BMER BMER BMER BMER BMER BMER
125 160 200 230 250 300 350 375 475 540 750
Geometric displacement (cm3/rev.)   118 156 196 228 257 296 345 371 462 540 745
Max. speed (rpm) cont. 360 375 330 290 290 250 220 200 160 140 100
int. 490 470 425 365 350 315 270 240 195 170 120
Max. torque (N•m) cont. 325 450 530 625 700 810 905 990 1085 980 1050
int. 380 525 600 710 790 930 1035 1140 1180 1240 1180
peak 450 590 750 870 980 1120 1285 1360 1260 1380 1370
Max. output (kW) cont. 12.0 15.0 15.5 16.0 17.5 18.0 17.5 16.5 14.5 11.5 8.0
int. 14.0 17.5 18.0 19.0 20.0 21.0 20.0 19.0 16.5 15.0 10.0
Max. pressure drop (MPa) cont. 20.5 20.5 20.5 20.5 20.5 20.5 20.5 20.5 17.5 14 10.5
int. 24 24 24 24 24 24 24 24 19 17.5 12
peak 27.6 27.6 27.6 27.6 27.6 27.6 27.6 27.6 20.5 20.5 14
Max. flow (L/min) cont. 45 60 70 70 75 80 80 75 75 75 75
int. 60 75 85 85 90 95 95 90 90 90 90





Roller Stator RE 530/531 High Torque Motor Wheel Drive Motor With Tapered Shaft 0Roller Stator RE 530/531 High Torque Motor Wheel Drive Motor With Tapered Shaft 1Roller Stator RE 530/531 High Torque Motor Wheel Drive Motor With Tapered Shaft 2

Application

  • Medium-duty wheel drives
  • Augers
  • Mixers
  • Winch drives
  • Swing drives
  • Grapple heads
  • Feed rollers
  • Broom drives

Roller Stator RE 530/531 High Torque Motor Wheel Drive Motor With Tapered Shaft 3
