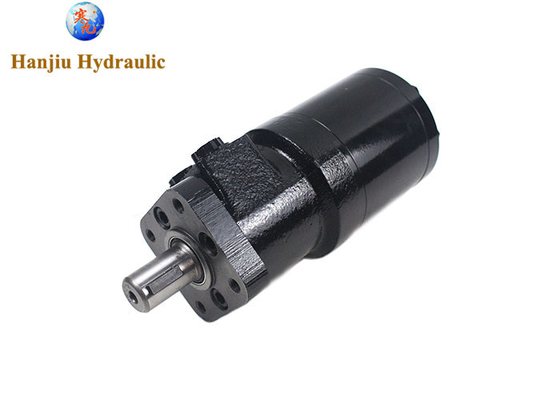

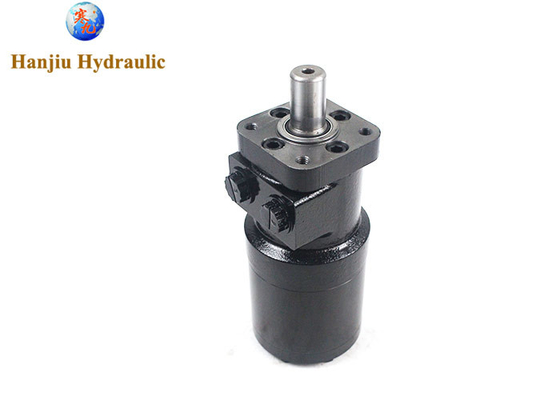

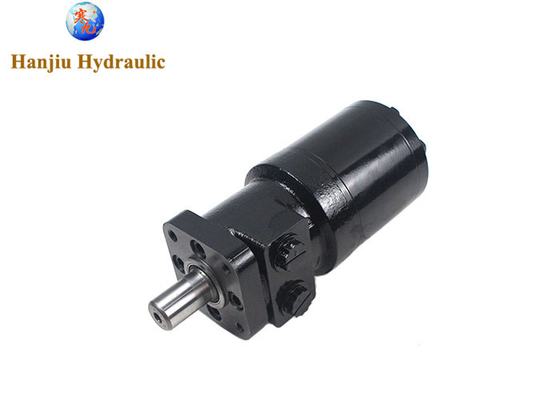

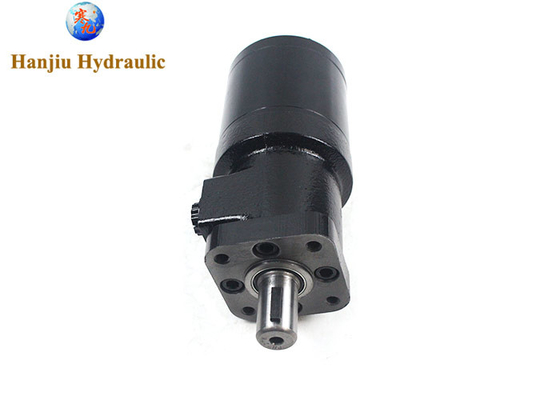

BMRS-375 Low Speed High Torque Hydraulic Motor 4 Bolt Mount 160 RPM Straight Key Shaft

BMRS-375 Low Speed High Torque Hydraulic Motor 4 Bolt Mount 160 RPM Straight Key Shaft
BMRS-375 Low Speed High Torque Hydraulic Motor 4 Bolt Mount 160 RPM Straight Key Shaft
video play

Large Image :  BMRS-375 Low Speed High Torque Hydraulic Motor 4 Bolt Mount 160 RPM Straight Key Shaft

Product Details:
Place of Origin: China
Brand Name: Hanjiu
Certification: CE,ISO9001
Model Number: BMRS Hydraulic motor
Payment & Shipping Terms:
Minimum Order Quantity: 50 units
Price: Negotiable
Packaging Details: Carton packing , with a tray or wooden box if needed .
Delivery Time: 10-15 working days
Payment Terms: T/T, Western Union,Paypal .
Supply Ability: 100,000 units / Year
Contact Now
Detailed Product Description
Product Name: Hydraulic Orbital Motors Displacement: 375CC
Applications: Agricultural Machine, Drilling Machines Material: Cast Iron
Oil Temperature: Normal-35℃-80℃ Shaft: Straight Key Shaft 25mm
Highlight:

BMRS-375 Hydraulic Motor

,

160 RPM Hydraulic Motor

,

4 Bolt Mount Hydraulic Motor

BMRS-375 Low Speed High Torque Hydraulic Motor 4 Bolt Mount 160 RPM,Straight key shaft





Features:

  • Shaft: φ25.4mm woodruff key
  • Flange: 4 bolt  Mounting
  • Ports: 7/8-14 O-ring
  • Drain: 7/16-20UNF
  • Corrosion-resistant Black Paint

Technical Specifications for BMRS-375-H4-K-S

  • Displacement: 22.7 in³/rev (375 cm³/rev)
  • Max Speed: 155 rpm (cont) / 190 rpm (int)
  • Max Torque: 365 N.M (cont) / 495 N.M (int)
  • Max Differential: 7.0MPA (cont) / 10MPA (int)
  • Max Flow: 60l/min (cont) / 75l/min (int)

Drop-In Replacement for:

  • Char-Lynn 103- SERIES


Main Specifications:



Technical data for BMRS with 25 and 1 in and 1 in splined and 28.56 tapered shaft:



Type BMR
BMRS
36		 BMR
BMRS
50		 BMR
BMRS
80		 BMR
BMRS
100		 BMR
BMRS
125		 BMR
BMRS
160		 BMR
BMRS
200		 BMR
BMRS
250		 BMR
BMRS
315		 BMR
BMRS
375
Geometric displacement (cm3 /rev.) 36 51.7 81.5 102 127.2 157.2 194.5 253.3 317.5 381.4
Max. speed (rpm) cont. 1085 960 750 600 475 378 310 240 190 155
int. 1220 1150 940 750 600 475 385 300 240 190
Max. torque (N·m) cont. 72 100 195 240 300 360 360 390 390 365
int. 83 126 220 280 340 430 440 490 535 495
peak 105 165 270 320 370 460 560 640 650 680
Max. output (kW) cont. 8.5 9.5 12.5 13 12.5 12.5 10 7 6 5
int. 9.8 11.2 15 15 14.5 14 13 9.5 9 8
Max. pressure drop (MPa) cont. 14 14 17.5 17.5 17.5 16.5 13 11 9 7
int. 16.5 17.5 20 20 20 20 17.5 15 13 10
peak 22.5 22.5 22.5 22.5 22.5 22.5 22.5 20 17.5 15
Max. flow (L/min) cont. 40 50 60 60 60 60 60 60 60 60
int. 45 60 75 75 75 75 75 75 75 75
Weight (kg) 6.5 6.7 6.9 7 7.3 7.6 8 8.5 9 9.5




BMRS-375 Low Speed High Torque Hydraulic Motor 4 Bolt Mount 160 RPM Straight Key Shaft 0BMRS-375 Low Speed High Torque Hydraulic Motor 4 Bolt Mount 160 RPM Straight Key Shaft 1BMRS-375 Low Speed High Torque Hydraulic Motor 4 Bolt Mount 160 RPM Straight Key Shaft 2

Applications:
• Agricultural augers,harvesters, seeders
• Car wash brushes
• Food processing
• Railroad maintenance equipment
• Machine tools
• Conveyors
• Industrial sweepers and floor polishers
• Saw mill works
• Turf equipment
• Concrete and asphalt equipment
• Skid steer attachments








BMRS-375 Low Speed High Torque Hydraulic Motor 4 Bolt Mount 160 RPM Straight Key Shaft 3
