| Product: | Hydraulic Geroler Motor | Displacement: | 200CC |
|---|---|---|---|
| Max.Speed(rpm): | Cont.366rpm/int.439rpm | Max.Torque(N.m): | Cont.510N.m/int.439N.m |
| Max. Pressure Drop: | Cont.17.5MPa/int.20MPa | Max.flow(L/min): | Cont.75L/min~int.90L/min |
| Highlight: | OMH200 Hydraulic Orbit Motor,151H1007 Hydraulic Orbit Motor,Small Hydraulic Orbit Motor |
||

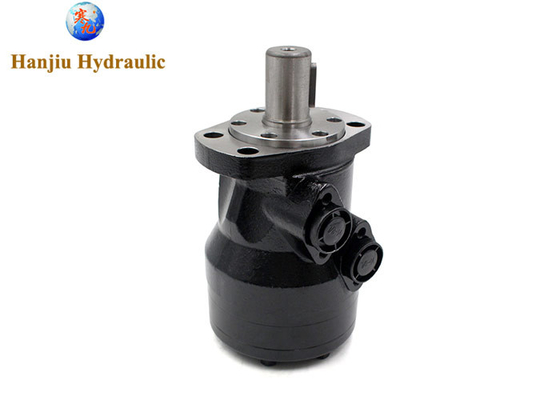

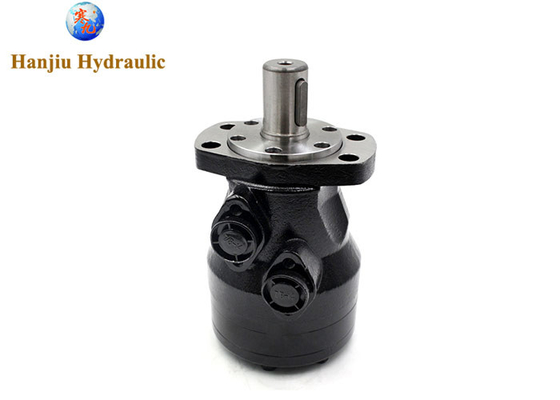

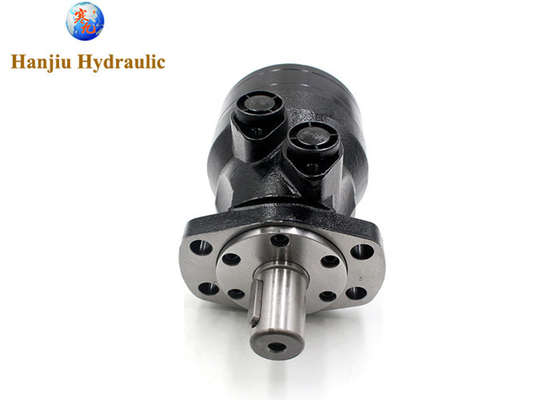

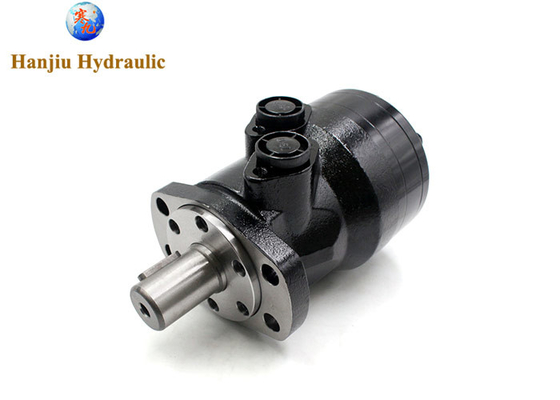

HYDRAULIC ORBIT MOTOR. SMALL MOTORS 151H1007,OMH200,straight key shaft,G1/2 port threads
Type: 151H1007=BMH200
| Series | OMH/BMH |
| Motor Type | Piston |
| Pressure Type | Fixed |
| Direction of Rotation | Bidirectional |
| Speed Range | 445 RPM |
| Displacement Size | 201.3 Cc |
| Flow | 90 LPM |
| Pressure Range | 215 BAR |
| Torque | 610 Nm |
| Frame Size | 200 |
Main Specifications:
| Type |
BMH 200 |
BMH 250 |
BMH 315 |
BMH 400 |
BMH 500 |
|
|
Displacement (cc/rev) |
203.2 | 255.9 | 316.5 | 406.4 | 489.2 | |
|
Max torque (n.m) |
cont | 510 | 621 | 740 | 850 | 830 |
| int | 439 | 348 | 282 | 220 | 184 | |
|
Max pressure (mpa) |
cont | 17.5 | 17.5 | 17.5 | 15.5 | 12.5 |
| int | 20 | 20 | 20 | 19 | 16 | |
|
Max speed rate (rpm) |
cont | 366 | 290 | 236 | 183 | 155 |
| int | 439 | 348 | 282 | 220 | 184 | |
|
Max flow (L/min) |
cont | 75 | 75 | 75 | 75 | 75 |
| int | 90 | 90 | 90 | 90 | 90 | |
|
Weight(kg)
|
10.5 | 11 | 11.5 | 12.3 | 13.0 | |
Geroler motors offer several key advantages that make them well-suited for a wide range of applications
1. High Torque Output
Geroler motors are renowned for their exceptional torque output, even at low speeds.
This makes them ideal for heavy-duty applications where significant rotational force is required.
2. Smooth Operation
Geroler motors provide a smooth and pulsation-free operation, ensuring consistent performance and reduced noise levels.
3. Compact Design
Geroler motors are known for their compact size, allowing for efficient use of space in various installations.
4. Reversibility
Geroler motors can operate in both clockwise and counterclockwise directions, providing versatility in applications requiring reversible motion.
5. Wide Speed Range
Geroler motors are capable of operating over a wide range of speeds, making them adaptable to various requirements.
6. High Efficiency
Geroler motors generally exhibit high efficiency, converting hydraulic energy into mechanical energy with minimal losses.
7. Reliability and Durability
Geroler motors are designed for reliability and durability, ensuring long-term performance and minimal maintenance.
8. Versatility
Geroler motors are available in various sizes and configurations, making them suitable for a wide range of applications across different industries.
9. Low-Speed Performance
Geroler motors are particularly well-suited for low-speed applications, where they can maintain high torque output without sacrificing efficiency.
10. Ease of Maintenance
Geroler motors typically require minimal maintenance, with simple procedures for inspection and repair.
These advantages make Geroler motors a valuable choice for applications demanding high torque, smooth operation, and reliability.
