Product Details:
Payment & Shipping Terms:
|

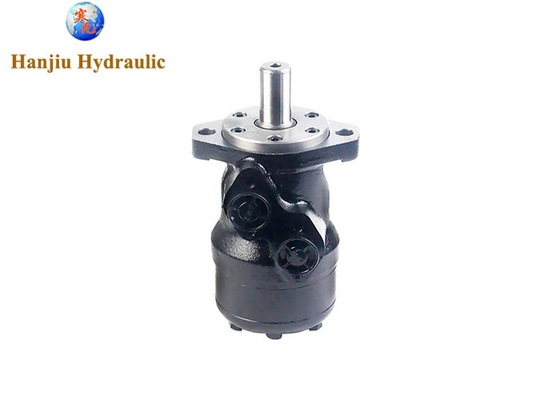

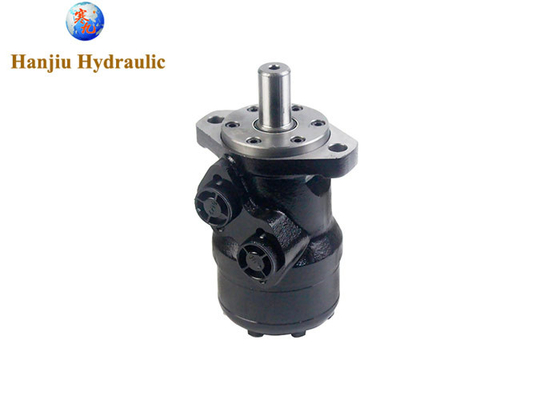

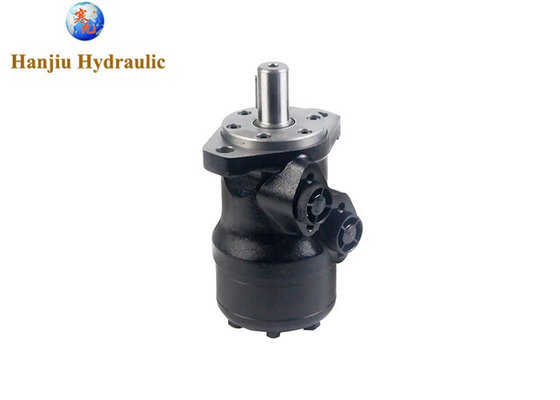

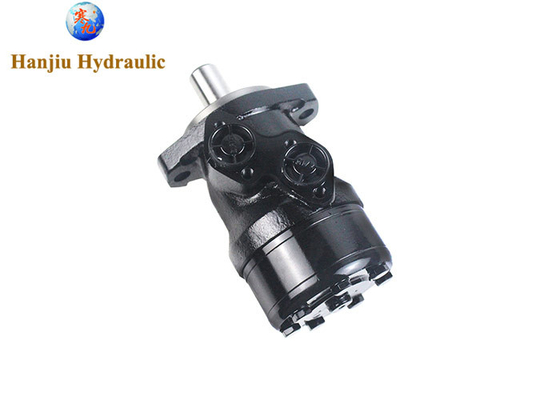

| Product Name: | Hydraulic Orbital Motors | Displacement: | 36cc,50cc,80cc,100cc,125cc,160cc......500cc |
|---|---|---|---|
| Applications: | Hydraulic Bunker, Harvesters | Material: | Cast Iron |
| Max.torque: | Peak 270 N.M | Max.flow: | Cont 60/int.75 L/min |
| Highlight: | High Output Torque Hydraulic Drive Motor,BMR125 Hydraulic Drive Motor,Trailed Bunker Harvester Hydraulic Drive Motor |
||
Product details:
| product type | BMR motors,11185517,OMR125 |
| displacement | 125cc |
| flange | 2-φ13.5 Rhomb-flange pilot φ82.5x8 |
| shaft | 25mm key shaft |
| oil ports | G1/2 manifold mount 4-M8,G1/4 |
Main Specifications:
Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:
| Type | BMR BMRS 36 |
BMR BMRS 50 |
BMR BMRS 80 |
BMR BMRS 100 |
BMR BMRS 125 |
BMR BMRS 160 |
BMR BMRS 200 |
BMR BMRS 250 |
BMR BMRS 315 |
BMR BMRS 375 |
|
| Geometric displacement (cm3/rev.) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 | |
| Max. speed (rpm) | cont. | 1085 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
| int. | 1220 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 | |
| Max. torque (N·m) | cont. | 72 | 100 | 195 | 240 | 300 | 360 | 360 | 390 | 390 | 365 |
| int. | 83 | 126 | 220 | 280 | 340 | 430 | 440 | 490 | 535 | 495 | |
| peak | 105 | 165 | 270 | 320 | 370 | 460 | 560 | 640 | 650 | 680 | |
| Max. output (kW) | cont. | 8.5 | 9.5 | 12.5 | 13 | 12.5 | 12.5 | 10 | 7 | 6 | 5 |
| int. | 9.8 | 11.2 | 15 | 15 | 14.5 | 14 | 13 | 9.5 | 9 | 8 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 17.5 | 17.5 | 17.5 | 16.5 | 13 | 11 | 9 | 7 |
| int. | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 15 | 13 | 10 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 17.5 | 15 | |
| Max. flow (L/min) | cont. | 40 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 45 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8 | 8.5 | 9 | 9.5 | |
Hydraulic motors are essentially mechanical actuators that work to convert fluid power into the mechanical energy needed to power a machine.
Fluid power is the driving force behind all hydraulic operations, including the way motors work
The benefits of hydraulics in agriculture machinery
They can efficiently handle heavy loads, operate machinery, and perform tasks such as lifting, digging, and pulling. By adjusting flow rates and pressure levels, farmers can fine-tune the performance of equipment like tractors, harvesters, and sprayers.
If you want to know more professional knowledge about hydraulic motors, you can visit the official website of Hanjiu, which manufactures hydraulic motors and spare parts.
The products are sold all over the world and have gained good reputation and feedback. Currently, we have agents in more than ten countries and regions around the world.
