| Features: | Low Speed High Torque | Product Name: | Hydraulic Geroler Motor |
|---|---|---|---|
| Material: | Cast Iron | Model Number: | BMPH-50 |
| Displacement: | 50CC | Shaft: | 1 In. Straight W/ Woodruff Key |
| Highlight: | 936D Hydraulic Motor,930D Hydraulic Motor,49.5CC Hydraulic Motor |
||

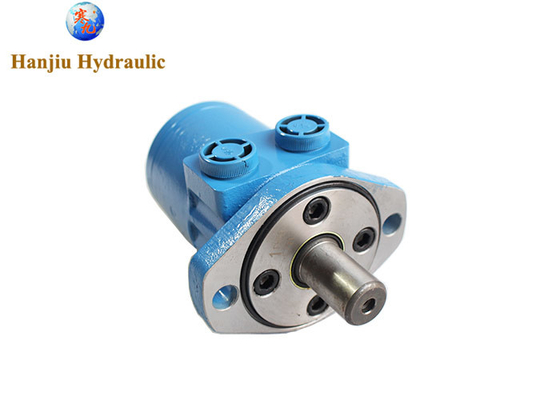

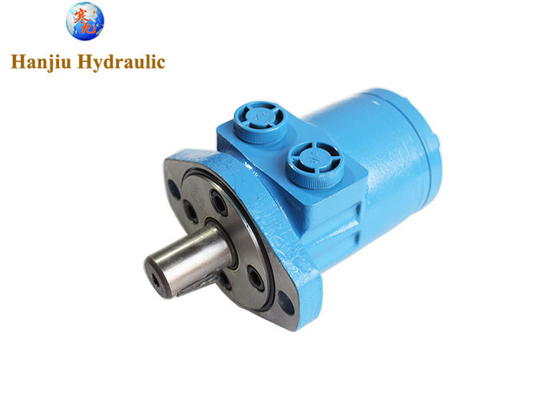

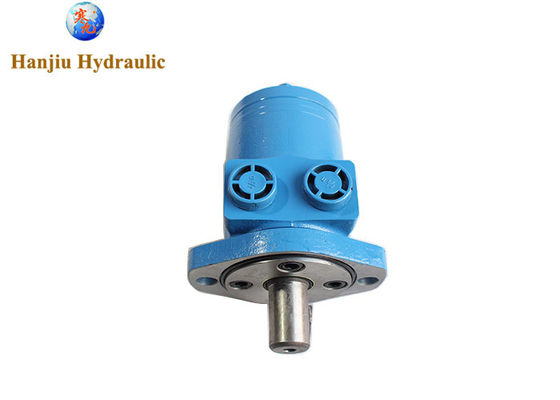

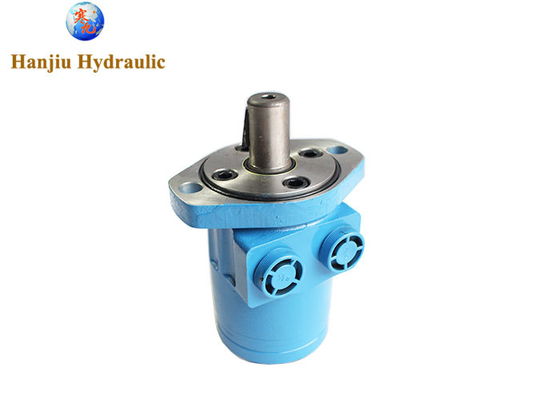

HYDRAULIC MOTOR 49.5CC FOR 925D 930D 936D DRAPER SIDE BELT AH159155
HANJIU aftermarker hydraulic motor to suit side belt draper drive on Harvester 900 series Draper cutting platforms. Mounted to the drive roller for the side Draper belt, this 49.5cc motor can be used on either the right hand or feft hand draper decks. It features a 2 bolt mount, 1" straight shaft and 1/2" BSPP ports.
► Product details
model type:BMPH-50
Competibal type:AH159155 101-2627-009
displacement:50cc
flange:Ø13.5 Rhomb-flange , 2-pilot Ø82.5×2.8
shaft: φ25.4mm,woodruff key shaft
port threads:NPT ports
► Specification
| Type | BMPH 36 |
BMPH 50 |
BMPH 80 |
BMPH 100 |
BMPH 125 |
BMPH 160 |
BMPH 200 |
BMPH 250 |
BMPH 315 |
BMPH 400 |
BMPH 500 |
|
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 77.7 | 96.2 | 120.2 | 157.2 | 194.5 | 240.3 | 314.5 | 389.5 | 486.5 | |
| Max. speed (rpm) | cont. | 1500 | 1150 | 770 | 615 | 490 | 383 | 310 | 250 | 192 | 155 | 120 |
| int. | 1650 | 1450 | 960 | 770 | 615 | 475 | 385 | 310 | 240 | 190 | 150 | |
| Max. torque (N·m) | cont. | 55 | 100 | 146 | 182 | 236 | 302 | 360 | 380 | 375 | 360 | 385 |
| int. | 76 | 128 | 186 | 227 | 290 | 370 | 440 | 460 | 555 | 525 | 560 | |
| peak | 96 | 148 | 218 | 264 | 360 | 434 | 540 | 550 | 650 | 680 | 680 | |
| Max. output (kW) | cont. | 8 | 10 | 10 | 11 | 10 | 10 | 10 | 8.5 | 7 | 6 | 5 |
| int. | 11.5 | 12 | 12 | 13 | 12 | 12 | 12 | 10.5 | 8.5 | 7 | 6 | |
| Max. pressure drop (MPa) | cont. | 12.5 | 14 | 14 | 14 | 14 | 14 | 14 | 11 | 9 | 7 | 6 |
| int. | 16.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 14 | 10.5 | 9 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 18 | 16 | 14 | 12 | |
| Max. flow (L/min) | cont. | 55 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 5.6 | 5.6 | 5.7 | 5.9 | 6 | 6.2 | 6.4 | 7 | 6.9 | 7.4 | 8 | |
Hydraulic Components in Agricultural Machinery
Hydraulic systems are integral to modern agricultural machinery, providing power and control for a wide range of functions.
Orbital motors Provide high torque at low speeds, ideal for driving implements like
Harvesters Header lift, cutterbar drive, grain unloading, and platform controls.
Balers Bale chamber control, pick-up, and tying mechanisms.
Sprayers Boom control, pump operation, and agitation.
