| Type: | Low Speed High Torque Motor | Material: | Cast Iron |
|---|---|---|---|
| Displacement: | 400ml/r | Flange: | Wheel Flange |
| Port Size: | Manifold Ports | Drain Line: | 7/16-20UNF |
| Speed: | 246 - 365 Rpm | Torque: | 765 - 885 Nm |
| Highlight: | Sugarcane Harvester Orbit Motor,Eaton Orbit Motor,3510 3520 3522 Orbit Motor |
||

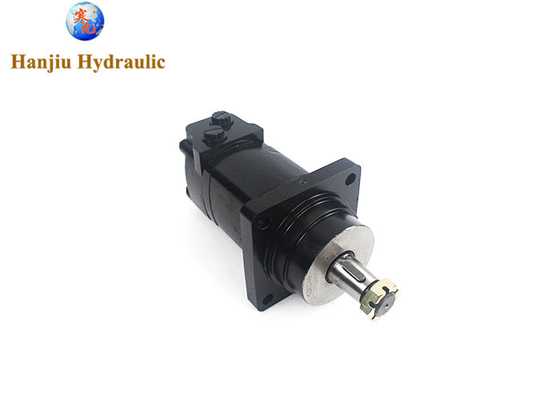

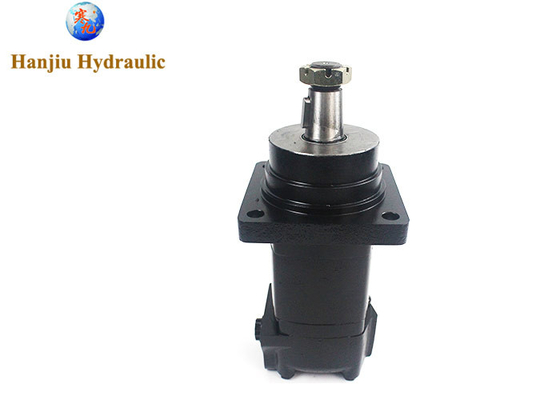

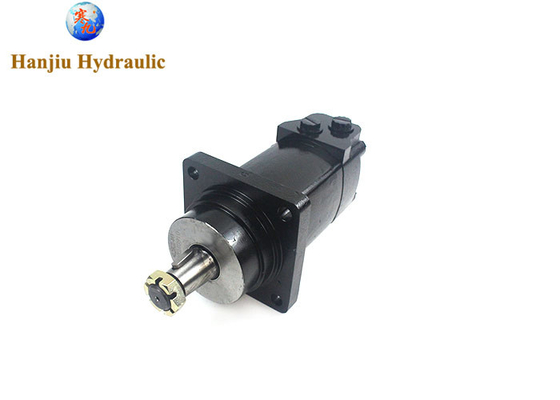

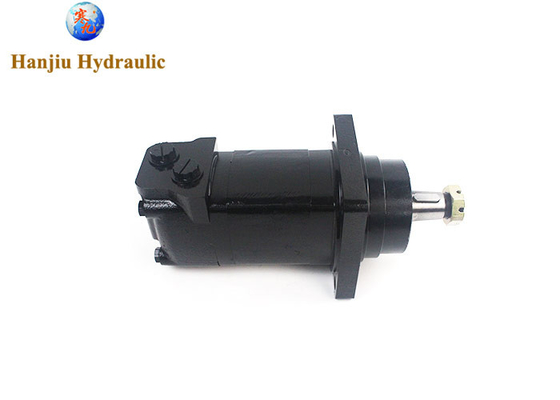

OEM CB11480557 Eaton Orbit Motor for Sugarcane Harvester 3510 3520 3522 hydraulic parts
Quick review:
Model No.:CB11480557
| type | BMK2 MOTOR eaton 2000 series motor |
| speed | 385 - 577 rpm |
| torque | 540 - 665 nm |
| mounting |
wheel Flange
|
| shaft | tapered shaft |
Main specifiction:
| Main Specifications: | |||||||||||
| Type | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | |
| 65 | 80 | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 475 | ||
| Geometric displacement (cm3 /rev.) |
65 | 80 | 100.9 | 129.8 | 156.8 | 193.4 | 242.5 | 304.3 | 390.8 | 485 | |
| Max. speed (rpm) | cont. | 835 | 800 | 742 | 576 | 477 | 385 | 308 | 246 | 191 | 153 |
| int. | 990 | 980 | 924 | 720 | 713 | 577 | 462 | 365 | 287 | 230 | |
| Max. torque (N·m) | cont. | 185 | 235 | 295 | 385 | 455 | 540 | 660 | 765 | 775 | 845 |
| int. | 245 | 345 | 445 | 560 | 570 | 665 | 820 | 885 | 925 | 930 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 21 | 21 | 21 | 20.5 | 20.5 | 20.5 | 21 | 15.5 | 12 |
| int. | 27.5 | 31 | 31 | 31 | 26 | 26 | 26 | 24 | 17 | 14 | |
| peak | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 20.5 | 17 | |
| Max. flow (L/min) | cont. | 55 | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 65 | 80 | 95 | 95 | 115 | 115 | 115 | 115 | 115 | 115 | |
| Weight (kg) | 9.2 | 9.4 | 9.7 | 10 | 10.2 | 10.5 | 11 | 11.5 | 12 | 12.4 | |
| * Continuous pressure :Max. value of operating motor continuously. | |||||||||||
| * Intermittent pressure :Max. value of operating motor in 6 seconds per minute. | |||||||||||
| * Peak pressure:Max. value of operating motor in 0.6 second per minute. | |||||||||||
With Hanjiu's products, sugarcane harvesters can have greater harvesting efficiency. HANJIU is committed to providing a complete power control system to ensure that the harvester can complete a series of harvesting tasks with high accuracy - including braking, steering, cutting, cleaning and loading and unloading, maximizing work efficiency.
More BMK2 motor, BMK2 - Orbital Motor (Displacement 65 – 500 CC) available:
