Product Details:
Payment & Shipping Terms:
|
| Type: | Low Speed High Torque Motor | Material: | Cast Iron |
|---|---|---|---|
| Displacement: | 315ml/r | Flange: | 2 Bolt SAE B Flange |
| Port Size: | Manifold Ports | Drain Line: | 7/16-20UNF |
| Speed: | 246 - 365 Rpm | Torque: | 765 - 885 Nm |
| Highlight: | 1041214006 Hydraulic Motor,104-1214 Hydraulic Motor,Eaton Char-Lynn 2000 Hydraulic Motor |
||

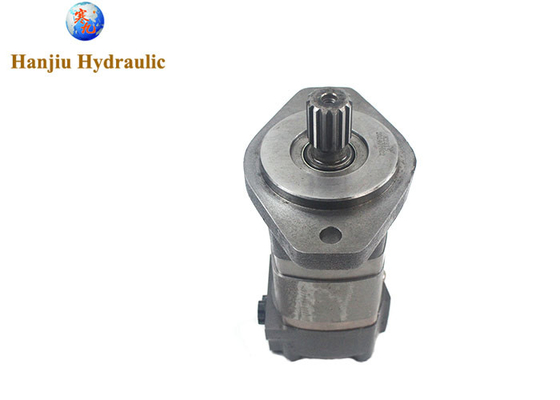

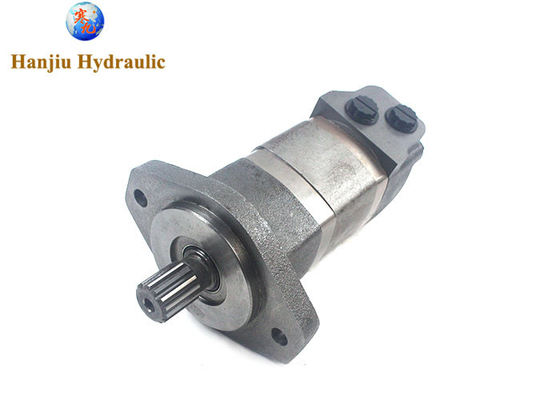

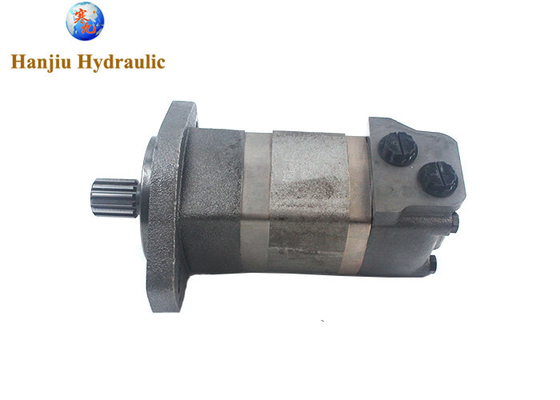

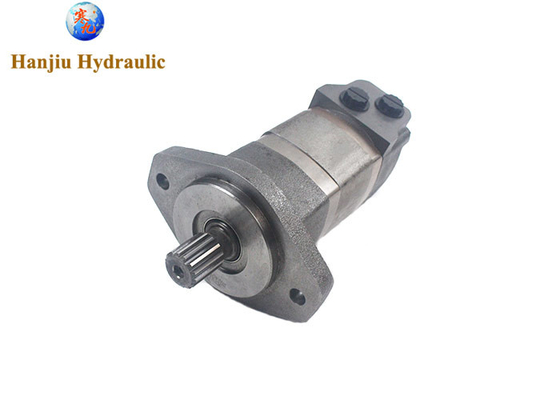

104-1214-006 1041214006 104-1214 Hydraulic Motor Compatible with Eaton Char-Lynn 2000 Series
Quick review:
Model No.: BMK2-315= 104-1214-006
| displacement | 315ml/r |
| speed | 246-365 rpm |
| torque | 765-885 nm |
| mounting |
2 Bolt SAE B Flange
|
| shaft | 14 teeth spline shaft |
Main specifiction:
| Main Specifications: | |||||||||||
| Type | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | |
| 65 | 80 | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 475 | ||
| Geometric displacement (cm3 /rev.) |
65 | 80 | 100.9 | 129.8 | 156.8 | 193.4 | 242.5 | 304.3 | 390.8 | 485 | |
| Max. speed (rpm) | cont. | 835 | 800 | 742 | 576 | 477 | 385 | 308 | 246 | 191 | 153 |
| int. | 990 | 980 | 924 | 720 | 713 | 577 | 462 | 365 | 287 | 230 | |
| Max. torque (N·m) | cont. | 185 | 235 | 295 | 385 | 455 | 540 | 660 | 765 | 775 | 845 |
| int. | 245 | 345 | 445 | 560 | 570 | 665 | 820 | 885 | 925 | 930 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 21 | 21 | 21 | 20.5 | 20.5 | 20.5 | 21 | 15.5 | 12 |
| int. | 27.5 | 31 | 31 | 31 | 26 | 26 | 26 | 24 | 17 | 14 | |
| peak | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 20.5 | 17 | |
| Max. flow (L/min) | cont. | 55 | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 65 | 80 | 95 | 95 | 115 | 115 | 115 | 115 | 115 | 115 | |
| Weight (kg) | 9.2 | 9.4 | 9.7 | 10 | 10.2 | 10.5 | 11 | 11.5 | 12 | 12.4 | |
| * Continuous pressure :Max. value of operating motor continuously. | |||||||||||
| * Intermittent pressure :Max. value of operating motor in 6 seconds per minute. | |||||||||||
| * Peak pressure:Max. value of operating motor in 0.6 second per minute. | |||||||||||
More BMK2 motor, BMK2 - Orbital Motor (Displacement 65 – 500 CC) available:
1. Types
Low speed high torque hydraulic motor types are relatively rich, can be divided into: radial piston hydraulic motor, crankshaft linkage hydraulic motor, pendulum cylinder hydraulic motor and cycloid hydraulic motor and so on several kinds.
2.Features and Advantages
(1) Low-speed function: no need to increase the deceleration device, and can realize stepless speed regulation.
(2) High torque: provide full torque, start without time and frequency limitations, especially suitable for full load restart conditions.
(3) Shock Load Resistance: Reliable, long-term continuous operation and long service life in harsh environments and working conditions.
(4) Easy to install and basically maintenance-free: directly on the driven shaft, high reliability, space saving
(5) Excellent controllability: precise positioning, slow rotation but smooth and fast response to acceleration and braking.
(6) Perfect function: when using two or more hydraulic motors, it provides perfect load distribution function or synchronization function.
3. Precautions for installation
(1) Reasonable and effective motor mounting is a prerequisite for prolonging the service life of the motor. Generally speaking, the screws on top of any mechanical parts have certain torque requirements. This ensures the tightening strength of the screws. Depending on the specifications of the screws and the materials used for installation, the size of the torque is also different. When installing, you need to use a torque wrench, so as to ensure that the tightness of each screw is equal, too high torque will make the screws produce metal fatigue, reducing the service life of the screws, too low torque will make the screws easy to loosen, and ultimately accidents will occur.
(2) When installing, it is necessary to clean the motor and torque arm joint surface and apply lubricant before installation. And the screws used should be cleaned and lubricated. Finally, install the instructions for reasonable installation.
