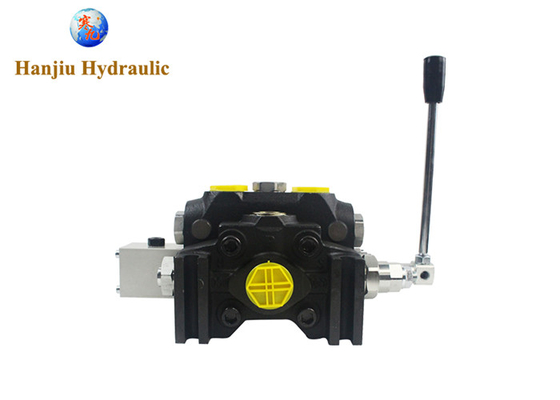

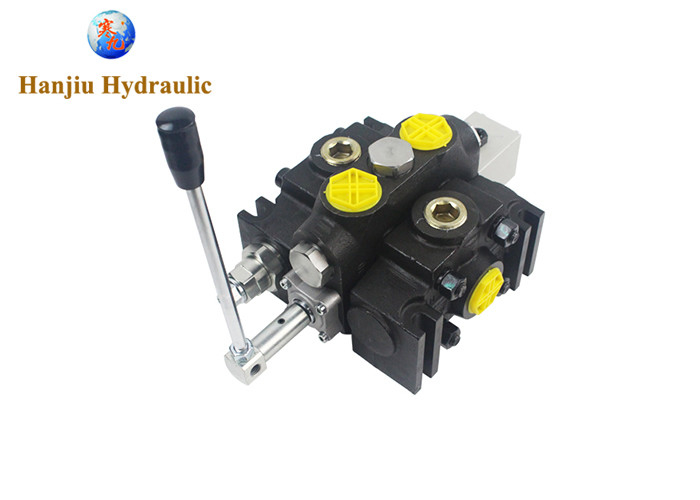

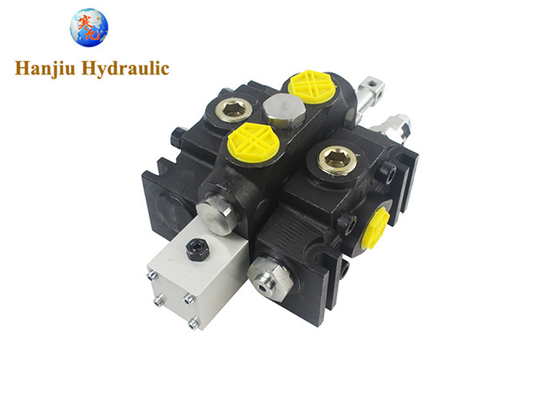

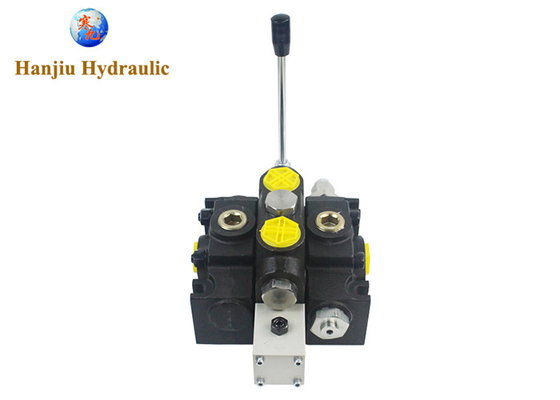

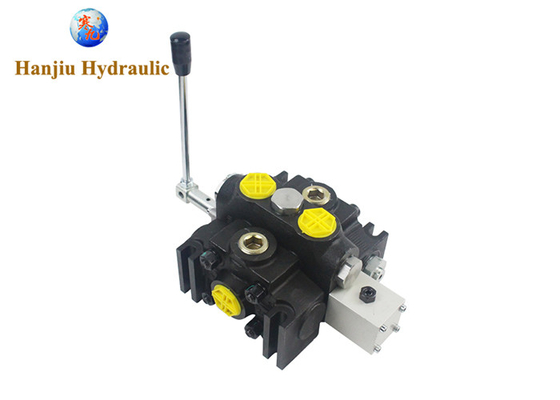

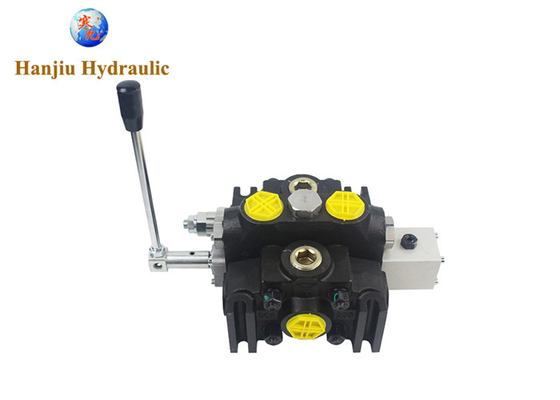

| Item: | Directional Control Valve | Model No.: | DCV200S-1-OX |
|---|---|---|---|
| Brand: | Hanjiu | Flow: | 200 Lpm |
| Highlight: | OEM hydraulic directional control valve,Factory hydraulic directional control valve,hydraulic directional control valve DCV200S-1-OX |
||
Welcome to the website of Hanjiu Technology
We focus on the design, development, manufacture and export of high-quality hydraulic directional valve
You can get hydraulic valves suitable for any equipment here
We have various series, various sizes, various spool type and control type
Here this page is our DCV series, sectional type hydraulic valve
DCV directional control valve is designed for high pressure hydraulic system such as drilling machine, sanitation, etc.
This series is the DCV200 series hydraulic Valve
| Specifications | |||
| Norminal flow rate | 200 lpm | 52.5 US GPM | |
| max pressure | 350 bar | 5076 psi | |
| operating range | 15 - 75 mm2/s | 15 ~ 75 cst | |
| viscosity | min | 12 mm2/s | 12 cst |
| max | 400 mm2/s | 400 cst | |
| ambient temperature range | ‘-40° ~ 80 ℃ | - 40℉ ~ 176 ℉ | |
| structure | sectional : 1 - 12 sections | ||
Features:
Auxiliary valve: over-load valve, anti-cavitation valve, combined valve, etc. not for DCV20-45)
Control type: manual, joystick, cable, pneumatic, solenoid, electro-pneumatic, electro-hydraulic, etc
Structure: monoblock, sectional
Carry-over port as hydraulic source for other parts.
Specifications:
We supply the hydraluic calbe vales for trimming machines,
like DCV40/60/80/100/140/200, also monoblock valve P40/P80,with cable controls
Sectional directional control valves, offers multi-function control valve method to solve hydraulic circuit system requirement. The compact construction design is one of strong features for sectional directional control valves include other features, such as low pressure drop, high efficiency. The sectional valve provides selective operation methods including manual control, hydraulic control, electro-hydraulic and pneumatic control. We provide good quality and high accuracy sectional directional control valve for all customers' requirements.
More valves:
| Product Series | Application equipment |
| DCV | Drilling rigs, cranes, flatbed trucks, special operation vehicles (sanitation trucks, garbage transport trucks, road sweepers), dump trucks, truck-mounted cranes and other construction machinery |
| P40/80/120 | Tractors, busy at both ends, flatbed trucks, truck-mounted cranes, mainly agricultural equipment |
| P81 | wood splitter |
| Wolf SD5/8/11 | Same as P40, it can also be used on drilling rigs and truck-mounted cranes. |
| Bucher DS15 | Same as DCV, can replace part of DCV according to installation size according to flow pressure. |
| RD5100/5200/5300 | Tractors, busy at both ends, flatbed trucks, truck-mounted cranes, mainly agricultural equipment |
| HDCF50 | Corn harvester, wheat ear picker, large weeder, peanut harvest/fruit picking machine and other crop harvesting machinery |
| HSV6/9 | Modify the excavator, change the excavator movement and other machinery |
| HSGK | Special for scissor-type aerial work vehicles |
| ZT12/20 | Sprayer, can replace DCV40, P40/80 and other functions |
| CDB15/20 | Loaders, forklifts (oil forks), drilling rig traveling valves, drilling rig dismounting valves |
| DF50/80 | tractor |
| Product series with L | loader |
