Genuine OEM White 11104624 OMR 160 NF Hydraulic Motor Made In China Black With FAST SHIPPING

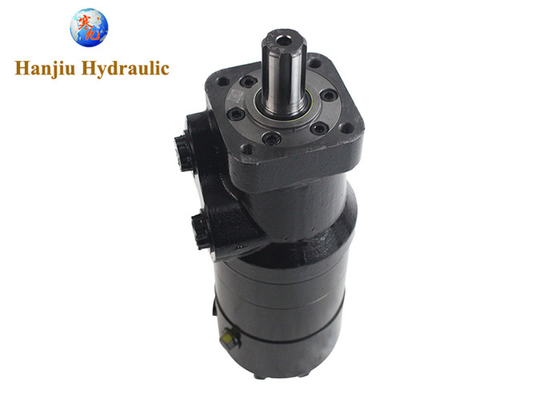

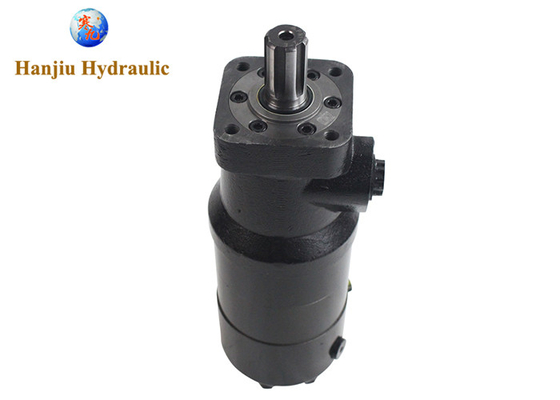

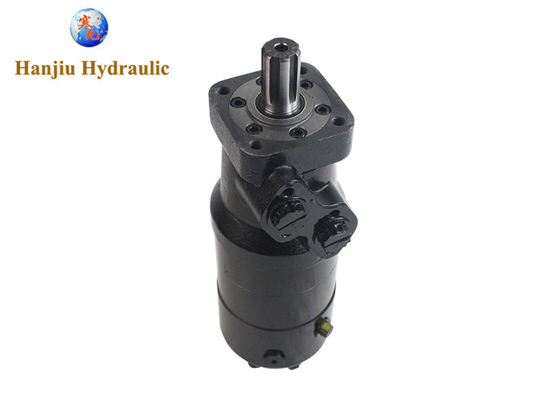

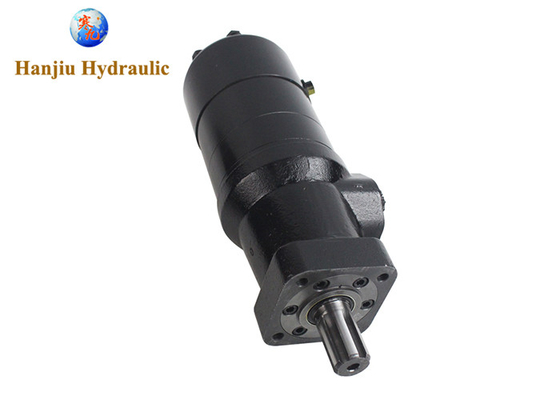

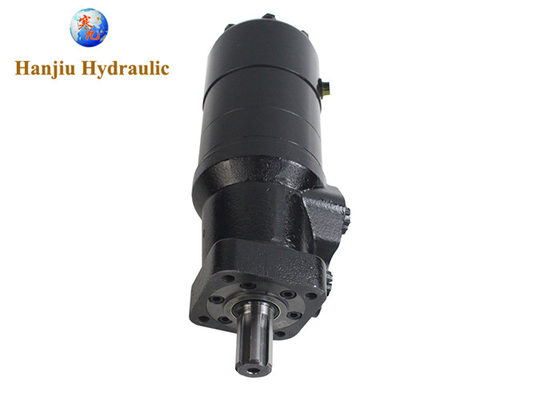

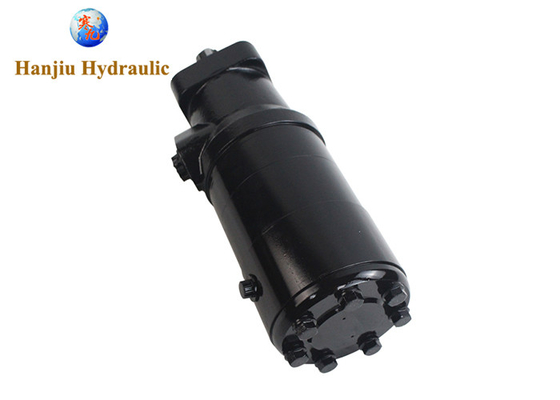

Large Image : Genuine OEM White 11104624 OMR 160 NF Hydraulic Motor Made In China Black With FAST SHIPPING

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE
Model Number:	11104624

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	Contact us to get best quote
Packaging Details:	Standard export package
Delivery Time:	35 work days
Payment Terms:	T/T, Western Union, Payple
Supply Ability:	300000 pieces per year

Contact Now

Detailed Product Description

Type:

Hydraulic Motor

Brand:

HANJIU

Model No.:

OMR 160 NF

11104624

Highlight:

11104624 OMR 160 NF Hydraulic Motor

Genuine Hydraulic Motor

11104624 Hydraulic Motor

Welcome to choose Hanjiu Hydraulics

You are visiting a high-end hydraulic motor developed by Hanjiu Hydraulics that is compatible with Danfss White OMR series

Many dealers prefer to choose with compatible installation and performance due to long delivery time and continued high prices

Not only can meet the installation and performance requirements, our quotation is reasonable and delivery time is fast

Danfss White 11104624 OMR 160 NF = Hanjiu BMR 160
Its parameters are as follows:

Main Specifications:

Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:

Type		BMR BMRS 36	BMR BMRS 50	BMR BMRS 80	BMR BMRS 100	BMR BMRS 125	BMR BMRS 160	BMR BMRS 200	BMR BMRS 250	BMR BMRS 315	BMR BMRS 375
Geometric displacement (cm3 /rev.)		36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4
Max. speed (rpm)	cont.	1085	960	750	600	475	378	310	240	190	155
Max. speed (rpm)	int.	1220	1150	940	750	600	475	385	300	240	190
Max. torque (N·m)	cont.	72	100	195	240	300	360	360	390	390	365
	int.	83	126	220	280	340	430	440	490	535	495
	peak	105	165	270	320	370	460	560	640	650	680
Max. output (kW)	cont.	8.5	9.5	12.5	13	12.5	12.5	10	7	6	5
Max. output (kW)	int.	9.8	11.2	15	15	14.5	14	13	9.5	9	8
Max. pressure drop (MPa)	cont.	14	14	17.5	17.5	17.5	16.5	13	11	9	7
	int.	16.5	17.5	20	20	20	20	17.5	15	13	10
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	20	17.5	15
Max. flow (L/min)	cont.	40	50	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	45	60	75	75	75	75	75	75	75	75
Weight (kg)		6.5	6.7	6.9	7	7.3	7.6	8	8.5	9	9.5

Technical data for BMR with 31.75 and 32 shaft:

Type		BMR BMRS 36	BMR BMRS 50	BMR BMRS 80	BMR BMRS 100	BMR BMRS 125	BMR BMRS 160	BMR BMRS 200	BMR BMRS 250	BMR BMRS 315	BMR BMRS 375
Geometric displacement (cm3 /rev.)		36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4
Max. speed (rpm)	cont.	1250	960	750	600	475	378	310	240	190	155
Max. speed (rpm)	int.	1520	1150	940	750	600	475	385	300	240	190
Max. torque (N·m)	cont.	72	100	195	240	300	380	450	540	550	580
	int.	83	126	220	280	340	430	500	610	690	690
	peak	105	165	270	320	370	460	560	710	840	830
Max. output (kW)	cont.	8.5	9.5	12.5	13	12.5	12.5	11	10	9	7.5
Max. output (kW)	int.	9.8	11.2	15	15	14.5	14	13	12	10	9
Max. pressure drop (MPa)	cont.	14	14	17.5	17.5	17.5	17.5	17.5	17.5	13.5	11.5
	int.	16.5	17.5	20	20	20	20	20	20	17.5	15
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	22.5	21	17.5
Max. flow (L/min)	cont.	45	50	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	55	60	75	75	75	75	75	75	75	75
Weight (kg)		6.5	6.7	6.9	7	7.3	7.6	8	8.5	9	9.5

* Continuous pressure:Max.value of operating motor continuously.
* Intermittent pressure:Max.value of operating motor in 6 seconds per minute .
* Peak pressure:Max.value of operating motor in 0.6 second per minute.

Genuine OEM White 11104624 OMR 160 NF Hydraulic Motor Made In China Black With FAST SHIPPING 0

Genuine OEM White 11104624 OMR 160 NF Hydraulic Motor Made In China Black With FAST SHIPPING 1

More BMR OMR series hydraulic motor available:

Integral Brake Hydraulic Orbit Motor Omr160 With Control Valve 1

Genuine OEM White 11104624 OMR 160 NF Hydraulic Motor Made In China Black With FAST SHIPPING 5

More Danfss O series hydraulic motor avaialbel:

Genuine OEM White 11104624 OMR 160 NF Hydraulic Motor Made In China Black With FAST SHIPPING 6

More White series hydraulic motor available:

WM (125/126 Series)
WD (145/146 Series)
WP (155/156 Series)
RS (200/201 Series)
WR (255/256 Series)
WG (277/278 Series)
WG (280/281 Series)
WS (350/351 Series)
WS (355/356 Series)
WS (357/358 Series)
CE (420/421 Series)
CE (430/431 Series)
RE (500/501 Series)
RE (520/521 Series)
RE (530/531 Series)

Genuine OEM White 11104624 OMR 160 NF Hydraulic Motor Made In China Black With FAST SHIPPING 7

HANJIU from China specializes in Hydraulic motors.

Suitable for both OEM and aftermarket, compatible with Danfss, White, Parker, Char-lynn, M+S, Dana etc.

If you send your request list, we will quote it for comparison.
