Product Details:
Payment & Shipping Terms:
|
| Categories: | Hydraulic Heavy Motor | Name: | OMT630 |
|---|---|---|---|
| Max.output: | Cont.31.2kw/int.35kw | Max Torque: | Cont.1080N.m/int.1260N.m |
| Flange: | Square Flange | Shaft: | Straight Key Shaft |
| Highlight: | key straight shaft orbit hydraulic motor,Screening Rotated Buckets orbit hydraulic motor,Orbit Hydraulic Motor OMT630 |
||

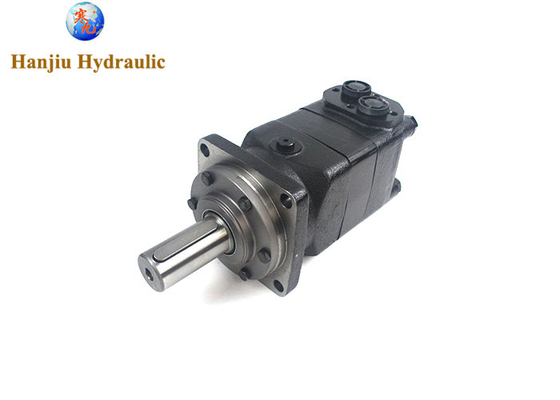

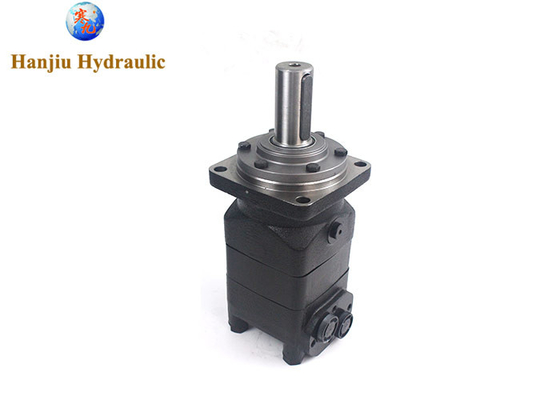

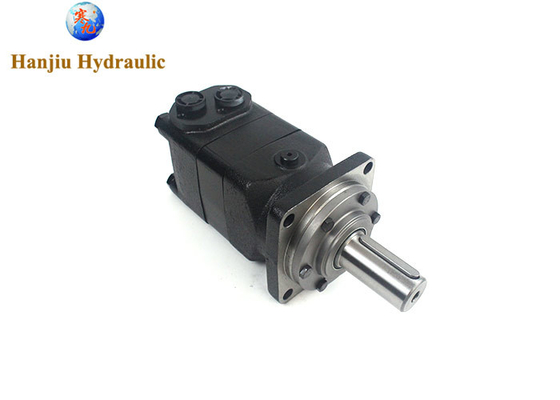

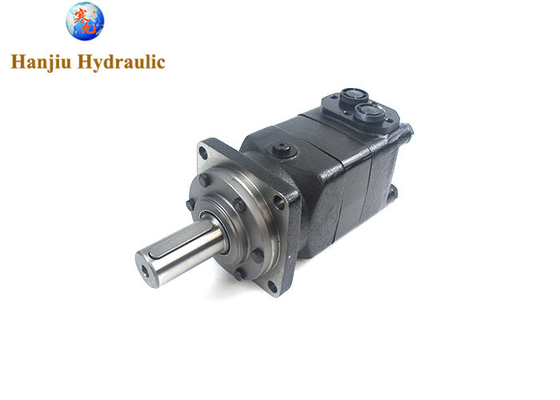

orbit hydraulic motor OMT630 For Screening Rotated Buckets, 4 bolts square flange, key straight shaft
Details
Main Specifications:
| Type | BMT 160 |
BMT 200 |
BMT 230 |
BMT 250 |
BMT 315 |
BMT 400 |
BMT 500 |
BMT 630 |
BMT 800 |
|
| displacement (cm3/rev. ) | 161.1 | 201.4 | 232.5 | 251.8 | 326.3 | 410.9 | 523.6 | 629.1 | 801.8 | |
| Max. speed (rpm) |
cont. | 625 | 625 | 536 | 500 | 380 | 305 | 240 | 196 | 154 |
| int. | 780 | 750 | 643 | 600 | 460 | 365 | 285 | 233 | 185 | |
| Max. torque (N.m) | cont. | 470 | 590 | 670 | 730 | 950 | 1080 | 1220 | 1318 | 1464 |
| int. | 560 | 710 | 821 | 880 | 1140 | 1260 | 1370 | 1498 | 1520 | |
| peak | 669 | 838 | 958 | 1036 | 1346.3 | 1450.3 | 1643.8 | 1618.8 | 1665 | |
| Max. output (KW) | cont. | 27.7 | 34.9 | 34.7 | 34.5 | 34.9 | 31.2 | 28.8 | 25.3 | 22.2 |
| int. | 32 | 40 | 40 | 40 | 40 | 35 | 35 | 27.5 | 26.8 | |
| Max.pressure drop (MPa) | cont. | 20 | 20 | 20 | 20 | 20 | 18 | 16 | 14 | 12.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 21 | 18 | 16 | 13 | |
| peak | 28 | 28 | 28 | 28 | 28 | 24 | 21 | 19 | 16 | |
| Max. flow (L/min) | rated | 80 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| cont. | 100 | 125 | 125 | 125 | 125 | 125 | 125 | 125 | 125 | |
| int. | 125 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | |
| Max. inlet pressure (Mpa) |
cont. | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 |
| int. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| peak | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 19.5 | 20 | 20.4 | 20.5 | 21 | 22 | 23 | 24 | 25 | |
Key Role of Hydraulic Motors
Rotation of the screening drum The primary function of the hydraulic motor is to rotate the cylindrical screening drum at a desired speed.
Additional functions In some designs, hydraulic motors may also be used to operate other components such as the bucket's tilt mechanism or the conveyor belt for material discharge.
Types of Hydraulic Motors Used
The specific type of hydraulic motor used in a screening rotated bucket will depend on factors such as
Bucket size and capacity Larger buckets may require more powerful motors.
Desired rotation speed The required speed will influence the motor's selection.
Torque requirements The motor must be capable of overcoming the resistance of the material being screened.
Commonly used motor types include
Orbital motors Offer high torque and smooth operation.
Piston motors Can provide higher speeds and power, but may be more complex.
Gear motors Used in specific applications where a combination of torque and speed is required.
Factors Affecting Motor Performance
Motor size and displacement Directly impacts the motor's power output.
Operating pressure The hydraulic system's pressure determines the motor's performance.
Motor efficiency Impacts the overall energy consumption of the system.
Motor mounting The motor's mounting options should be compatible with the bucket design.
By carefully selecting the appropriate hydraulic motor, the efficiency and productivity of the screening process can be significantly improved.
