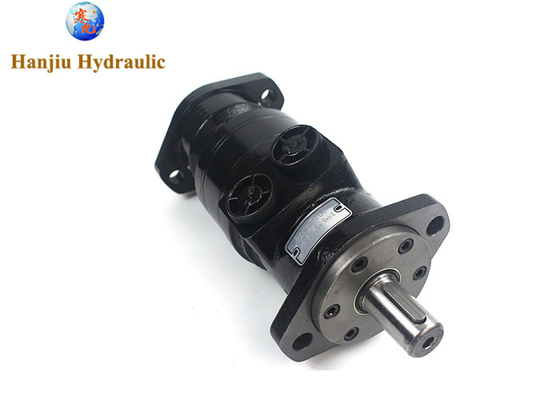

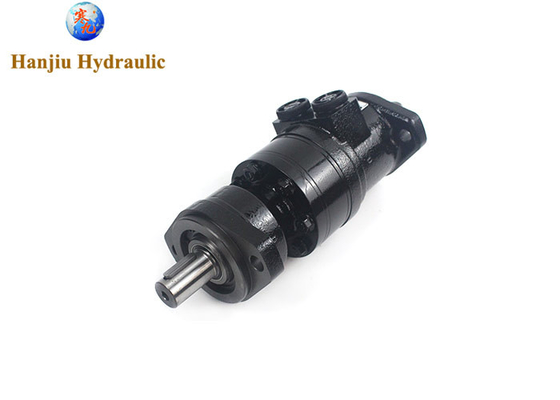

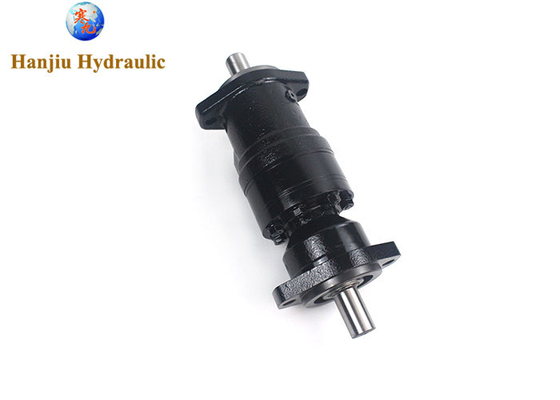

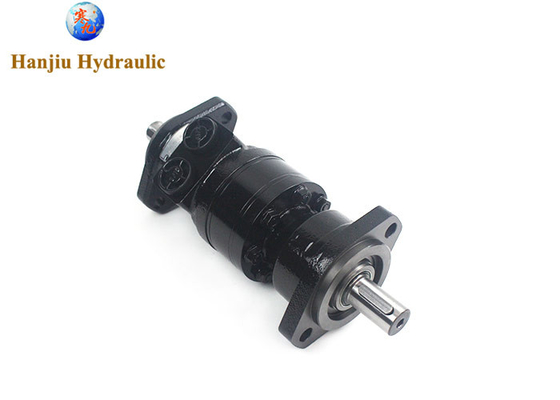

Double Shaft Hydraulic Motor MRB160C/C 160 Cc/rev, Straight Keyed Shaft 25 Mm 2 Holes Oval Mounting Flange

Large Image : Double Shaft Hydraulic Motor MRB160C/C 160 Cc/rev, Straight Keyed Shaft 25 Mm 2 Holes Oval Mounting Flange

Product Details:

Place of Origin:	China
Brand Name:	Hanjiu
Certification:	CE
Model Number:	BMRYB160

Payment & Shipping Terms:

Minimum Order Quantity:	50 units
Price:	Negotiable
Packaging Details:	Carton packing , with a tray or wooden box if needed .
Delivery Time:	10-15 working days
Payment Terms:	T/T, Western Union,Paypal .
Supply Ability:	100,000 units / Year

Contact Now

Detailed Product Description

Product Name:	Hydraulic Double End Motors	Displacement:	36cc,50cc,80cc,100cc,125cc,160cc......500cc
Applications:	Car Carriers, Transporters	Oil Temperature:	Normal-35℃-80℃
Warranty:	1 Year	Material:	Cast Iron
Highlight:	160 cc/rev Hydraulic Motor , 25 mm Hydraulic Motor , MRB160C/C Hydraulic Motor

Double Shaft Hydraulic Motor MRB160C/C,160 cc/rev, straight keyed shaft 25 mm 2 holes oval mounting flange

BMRYB series hydraulic motors are with dual shaft and the rollers in the gear rim reduce local stress, spread the tooth load over their projected area and reduce the tangential reaction forces on the inner gear reducing friction to a minimum. This gives long operating life and better efficiency even at continuous high pressures.

BASIC INFORMATION
Maximum speed (continuous): 375 rpm
Maximum torque (continuous): 300 Nm
Maximum shaft torque A (continuous): 200 Nm
Maximum shaft torque B (continuous): 200 Nm
Maximum output power: 12.5 kW
Maximum flow (continuous): 60 l / min
Ports A and B: G 1/2
Mounting flange: SAE A standard
Drive shaft journal: Ø 25
Maximum supply pressure: 175 bar
Product details:

product type	BMRYB motors
displacement	160cc
flange	2-φ13.5Rhomb-flange pilot φ82.5x8
shaft	φ25 straight key
oil ports	G1/2 manifold mount 4-M8,G1/4

Main Specifications:

Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:

Type		BMR BMRS 36	BMR BMRS 50	BMR BMRS 80	BMR BMRS 100	BMR BMRS 125	BMR BMRS 160	BMR BMRS 200	BMR BMRS 250	BMR BMRS 315	BMR BMRS 375
Geometric displacement (cm3 /rev.)		36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4
Max. speed (rpm)	cont.	1085	960	750	600	475	378	310	240	190	155
Max. speed (rpm)	int.	1220	1150	940	750	600	475	385	300	240	190
Max. torque (N·m)	cont.	72	100	195	240	300	360	360	390	390	365
	int.	83	126	220	280	340	430	440	490	535	495
	peak	105	165	270	320	370	460	560	640	650	680
Max. output (kW)	cont.	8.5	9.5	12.5	13	12.5	12.5	10	7	6	5
Max. output (kW)	int.	9.8	11.2	15	15	14.5	14	13	9.5	9	8
Max. pressure drop (MPa)	cont.	14	14	17.5	17.5	17.5	16.5	13	11	9	7
	int.	16.5	17.5	20	20	20	20	17.5	15	13	10
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	20	17.5	15
Max. flow (L/min)	cont.	40	50	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	45	60	75	75	75	75	75	75	75	75
Weight (kg)		6.5	6.7	6.9	7	7.3	7.6	8	8.5	9	9.5

Technical data for BMR with 31.75 and 32 shaft:

Type		BMR BMRS 36	BMR BMRS 50	BMR BMRS 80	BMR BMRS 100	BMR BMRS 125	BMR BMRS 160	BMR BMRS 200	BMR BMRS 250	BMR BMRS 315	BMR BMRS 375
Geometric displacement (cm3 /rev.)		36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4
Max. speed (rpm)	cont.	1250	960	750	600	475	378	310	240	190	155
Max. speed (rpm)	int.	1520	1150	940	750	600	475	385	300	240	190
Max. torque (N·m)	cont.	72	100	195	240	300	380	450	540	550	580
	int.	83	126	220	280	340	430	500	610	690	690
	peak	105	165	270	320	370	460	560	710	840	830
Max. output (kW)	cont.	8.5	9.5	12.5	13	12.5	12.5	11	10	9	7.5
Max. output (kW)	int.	9.8	11.2	15	15	14.5	14	13	12	10	9
Max. pressure drop (MPa)	cont.	14	14	17.5	17.5	17.5	17.5	17.5	17.5	13.5	11.5
	int.	16.5	17.5	20	20	20	20	20	20	17.5	15
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	22.5	21	17.5
Max. flow (L/min)	cont.	45	50	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	55	60	75	75	75	75	75	75	75	75
Weight (kg)		6.5	6.7	6.9	7	7.3	7.6	8	8.5	9	9.5

* Continuous pressure:Max.value of operating motor continuously.
* Intermittent pressure:Max.value of operating motor in 6 seconds per minute .
* Peak pressure:Max.value of operating motor in 0.6 second per minute.
