Product Details:
Payment & Shipping Terms:
|
| Item: | Hydraulic Valves | Material: | Cast Iron |
|---|---|---|---|
| Apply To: | Compaction Equipments | Spool: | 6 LEVERS |
| Max Operation Pressure: | 315 Bar | Control Type: | Manual Control Type |
| Highlight: | 80Liters directional control valve,21gpm directional control valve,Compaction Equipment directional control valve |
||

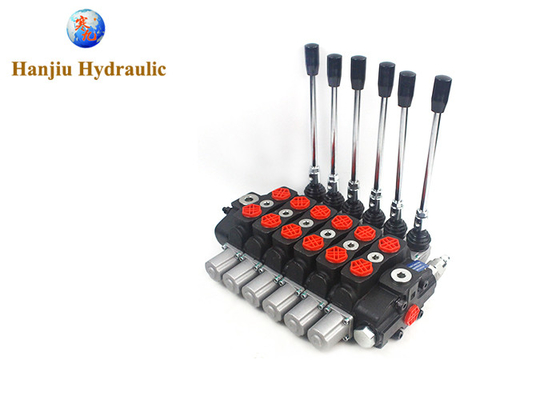

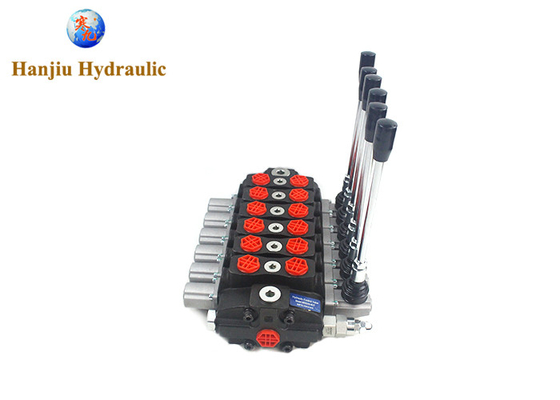

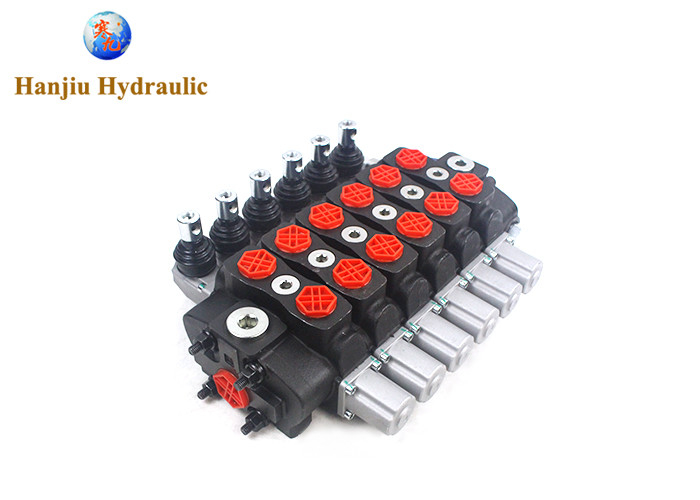

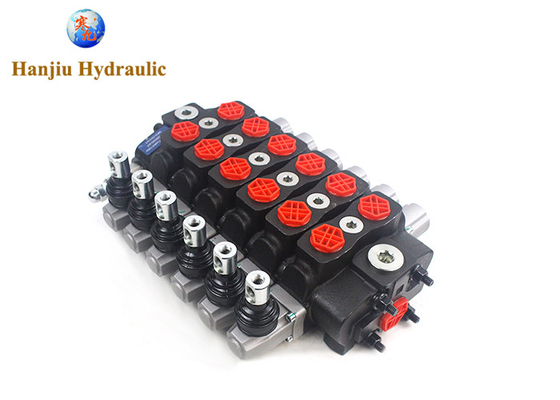

80Liters, 21gpm high pressure directional section valve for Compaction Equipment HSSD8-6
HSSD series directional control valve, flow range of 30-400L/min,
can meet different flow requirements; Its compact, heavy and simple design, can be used in a variety of work scenarios for open or closed centre hydraulic systems; stable performance, a variety of control methods to choose
Control type: manual, cable, pneumatic,
electro-hydraulic,solenoid, etc.
Circuit type: parallel
Application :
Cranes, Telescopic boom fork lifts, Back-hoe Excavators and Compactors.
| flow rate | 80 liters/21US GPM |
| number of spools | 6spools |
| inlet section valve | side inlet, with relief valve |
| relief valve set pressure | 315bar |
| inlet port size | G3/8,G1/2, G3/4 |
| spool type | 3 positon, double acting |
| handle side arrangement | standard type |
| spool cap side arrangement | 3position, spring return,manual control,detent control, |
| working section arrangement | standard type |
| work port size | G3/8,G1/2,G4/3,G1 |
| outlet section type | top outlet,side |
| outlet port size | G3/8,G1/2,G4/3,G1 |
According to the structure, the hydraulic directional valves provided by Hanjiu Technology Co., Ltd. can be divided into monolithic type and partial type. They can be used in high-pressure hydraulic systems, such as drilling machines, sanitary equipment, etc. Available in a variety of forms including manual, joystick, cable, pneumatic, solenoid, electro-pneumatic and electro-hydraulic. There are also single and combined types, the flow rate includes 20 liters to 200 liters, and the number of spools ranges from 1 spool to 12 spools.
Our Hydraulic Directional Valve products are all innovatively designed by professional technicians. The compact structure makes them smaller in size, can provide reliable working performance in the actual operation process, and greatly enhance the safety of use. So far, Han Long-term customer satisfaction with Hydraulic Directional Valve is very high. The DCV directional control valve is characterized by high pressure, compact structure, stable overload valve, high performance and high versatility. It can be widely used in construction machinery, sanitation vehicles, drilling rigs, special vehicles, etc. The auxiliary valve is equipped with overload valve, anti-cavitation valve, combined valve, etc. The bobbin function can realize more than four kinds: A, O, Y, P and so on. Control types cover manual, pneumatic, electrohydraulic, electropneumatic, etc. The circuits can be connected in parallel or in series and in parallel, and the c-port (oil bridge) is a combined structure as the hydraulic source of other parts.
