Product Details:
Payment & Shipping Terms:
|
| Item: | Hydraulic Valves | Material: | Cast Iron |
|---|---|---|---|
| Apply To: | Construction Application,Cranes,excavators | Spool: | 3 Spools |
| Max Operation Pressure: | 315 Bar | Control Type: | Manual Control Type |
| Highlight: | 3 spools hydraulic directional valve,manual control type hydraulic directional valve,BSPP ports hydraulic directional valve |
||

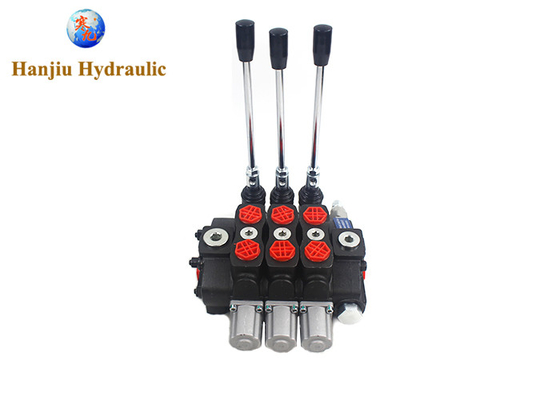

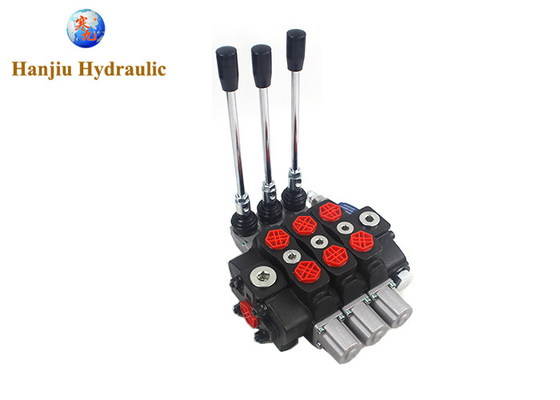

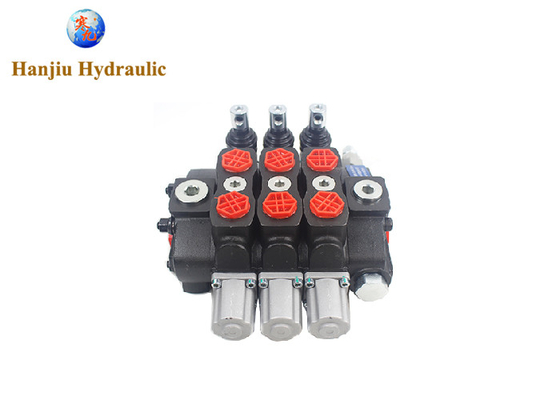

High pressure hydraulic directional valve HSSD8, 3 spools, manual control type, BSPP ports
HSSD series directional control valve, flow range of 30-400L/min,
can meet different flow requirements; Its compact, heavy and simple design, can be used in a variety of work scenarios for open or closed centre hydraulic systems; stable performance, a variety of control methods to choose
Control type: manual, cable, pneumatic,
electro-hydraulic,solenoid, etc.
Circuit type: parallel
| flow rate | 80 liters |
| number of spools | 3spools |
| inlet section valve | side inlet, with relief valve |
| relief valve set pressure | 315bar |
| inlet port size | G3/8,G1/2, G3/4 |
| spool type | 3 positon, double acting |
| handle side arrangement | standard type |
| spool cap side arrangement | 3position, spring return,manual control,detent control, |
| working section arrangement | standard type |
| work port size | G3/8,G1/2,G4/3,G1 |
| outlet section type | top outlet,side |
| outlet port size | G3/8,G1/2,G4/3,G1 |
Other types matching Walvoil valve
SD5 Series:
walvoil integrated multiway valve SD5/2-P(KG-200)/18L/18L/AET
walvoil integrated multiway valve SD5/3-P(KG-200)/18L/18L/18L/AET
walvoil integrated multiway valve SD5/4-P(KG-200)/18L/18L/18L/AET
walvoil Integrated multiway valve SD5/5-P(KG-200)/18L/18L/18L/18L/ 18L/AET
walvoil Integrated multiway valve SD5/6-P(KG-200)/18L/18L/18L/18L/18L/ 18L/AET
Technical parameters: Rated flow 45L/MIN Working pressure setting: 80bar——315bar PABT Size: G3/8"
SD8 Series:
walvoil shard multiway valve SD8/2/AC/28L-160/28L-160/AET
walvoil shard multiway valve SD8/3/AC/28L-160/28L-160/28L-160/AET
walvoil shard multiway valve SD8/4/AC/ 28L-160/28L-160/28L-160/28L-160/28L-160 /AET
walvoil shard multiway valve SD8/5/AC/ 28L-160/28L-160/28L-160/28L-160/28L-160/28L-160/28L-160 /AET
Technical parameters: Rated flow 80L/MIN Working pressure setting: 80bar——315bar PABT Size: G1/2"
