Product Details:
Payment & Shipping Terms:
|

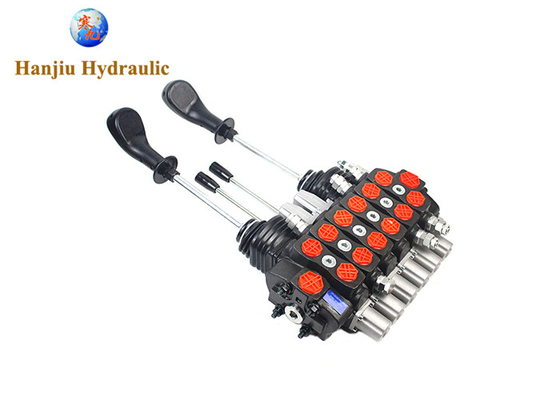

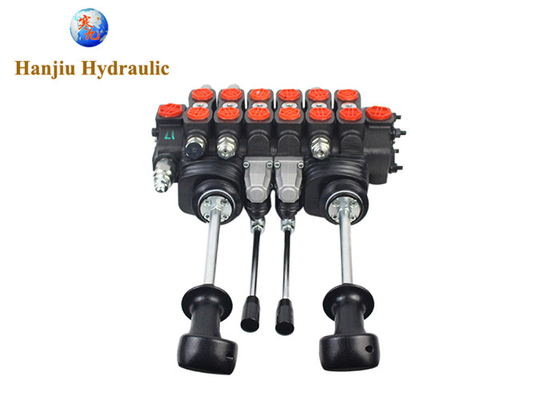

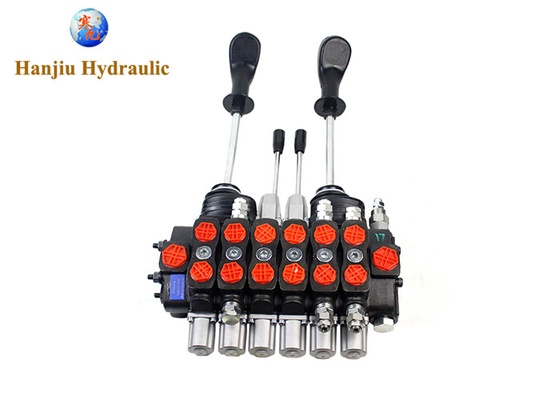

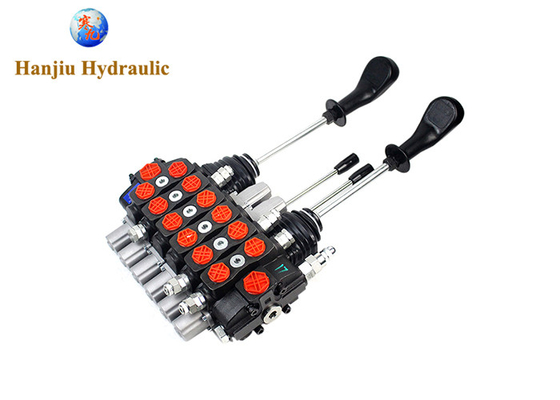

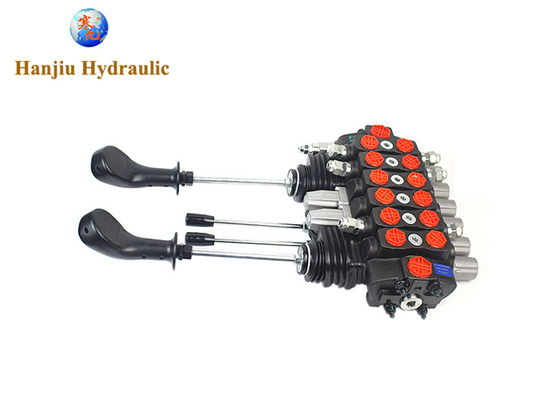

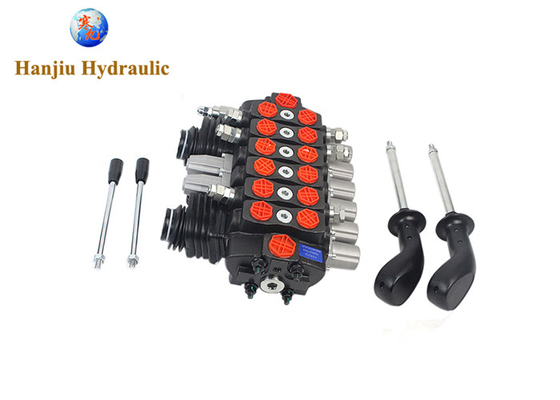

| Item: | Directional Control Valve | Model: | SD8-6-J2OT-2OT-J2OT |
|---|---|---|---|
| Bank: | 6 Bank | Flow Rate: | 80 LPM |
| Control: | Joystick And Manual | Max. Pressure: | 350 Bar |
| Highlight: | Joystick Sectional Control Valve,Walvoil Sectional Control Valve,3 position Sectional Control Valve |
||
Welcome to the website of Hanjiu Technology
We focus on the design, development, manufacture and export of high-quality hydraulic products
You can get hydraulic valves suitable for any equipment here
We have various series, various sizes, various spool type and control type
This series is the SD8 series hydraulic Valve
| TECHNICAL DATA | ||
| Nominal flow: | 80 l/min | |
| Max pressure: | 350 bar | |
| Ports dimensions: | P, A, B = 1/2" G | T = 3/4"G |
| Max back pressure (T port): | 25 bar | |
| Working sections: | 8 | |
| Std. setting: | 250 bar | |
| Seals material: | NBR 70 Sh | |
| Fluid: | Mineral base oil | |
| Fluid temperature range: | -20 ÷ 80 °C (-4 ÷ +176°F) | |
| Fluid viscosity: | 15 ÷ 75 mm2/s | |
| Spool stroke: | pos.1 = +7 mm (0.275 in) | |
| pos.2 = -7 mm (-0.275 in) |
Features:
| Main pressure relief valve and a load check valves fitted on every working section | Yes |
| Available with parallel, tandem or series circuits | Yes |
| Optional carry-over port | Yes |
| A wide range of ports and circuit valves | Yes |
| Intermediate sections for several types of circuit | Yes |
| Potential for manual, pneumatic, hydraulic, electro-hydraulic and remote flexible cable spool control kits | Yes |
More series available:
| 1 | walvoil sd5 pdf |
| 2 | walvoil sd11 |
| 3 | walvoil loader valve |
| 4 | walvoil sd6 |
| 5 | walvoil sd4 |
| 6 | walvoil sd8 |
| 7 | walvoil sd14 |
| 8 | walvoil sd18 |
| 9 | walvoil sd25 |
| 10 | walvoil monoblock valves |
About the supplier:
Hanjiu is a hydraulic manufacturer and exporter from China. Hydraulic directional control valve is one of our specialties, we are good at Walvoil DF5, SD4, SD5, SD8, SD11, SD14, SD18, SD25 and other series. Below is a selection of our high-end compatible hydraulic directional control valves for Walvoil dealers and users for your reference. We also offer more hydraulic directional control valves
