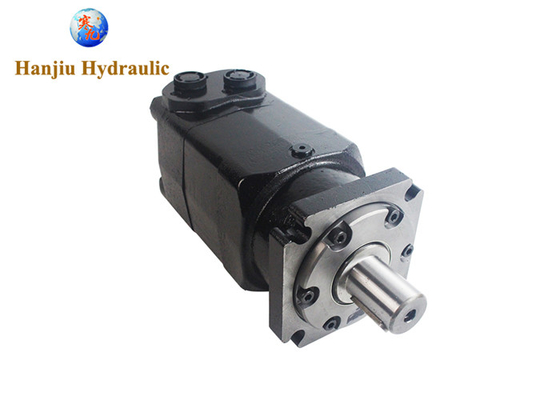

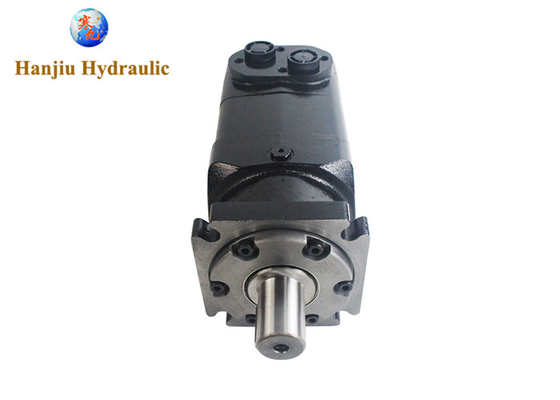

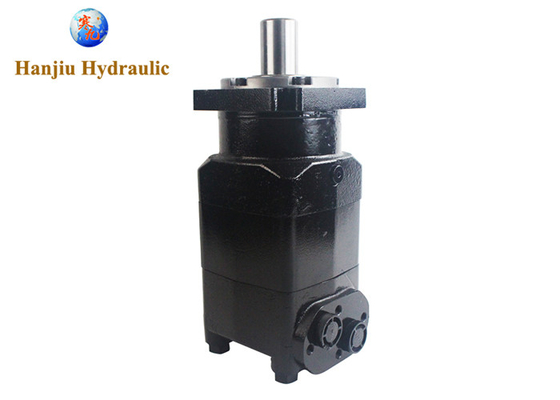

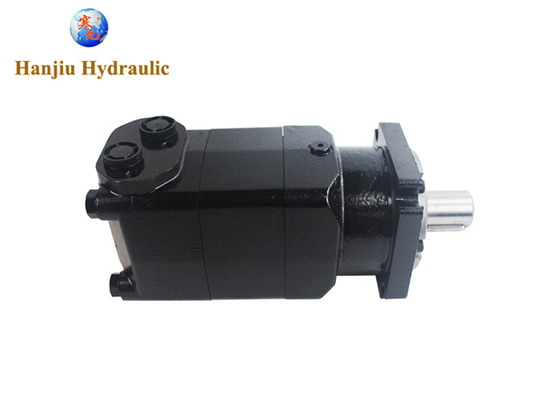

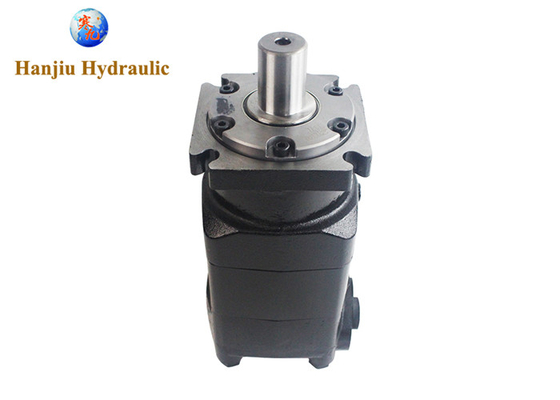

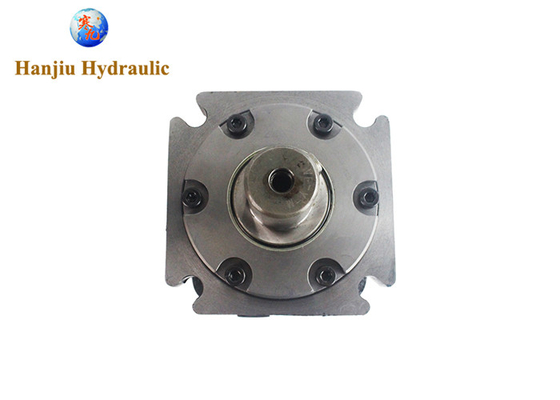

BMV Geroler Orbital Motors Hydraulic Motor 10000ml/r 400mm Key Shaft Replace Eaton Charlynn 10000 Motors

Welcome to the website of Hanjiu Technology
We focus on the design, development, manufacture and export of high-quality hydraulic products
You can get hydraulic motors suitable for any equipment here
We have various series, various sizes, various speeds and torques

This series is the BMV series hydraulic motor
Model: BMVE-1000-K4-Y-D1
Displacement: 1000 ml/r
Flange: 4-Ø14.2 Square-flange Ø160, pilot Ø125X11
Shaft: Shaft Ø40, Key 12X8X45
Rotation :Standard


BMV series orbit hydraulic motor adapt the advanced Gerotor gear set, design with disc distribution flow and high pressure. The unit can be supplied theindividual variant in operating multifunction in accordance with requirement of applications.This motor is a Orbital hydraulic motor, also called Low Speed High Torque type motor, also called geroler hydraulic motor, also dis valve hydraulic motor.

It's applied in agriculture machinery, fishing machinery, plastic industry, mining, and construction machinery, especially fitted to lower load applications, such as plastic injection mold machine, cleaner, grass cutter,Winches, Conveyors, Slews, Sweeper Drives, Augers, Cutters, Mowers and Chippers


Characteristics:

This motor produced by Hanjiu Technology from China, it's a alternative orbit hydraulic motor to OMV series, to Eaton Char lynn 10000 series (10k series), also alternative with M+S MV series, and alternative with many other manufacturers from USA and European.

Advanced manufacturing devices for the Gerotor gear set, which use low pressure of start-up, provide smooth and reliable operationand high efficiency. The output shaft adapts in tapered roller bearings that permit high axial and radial forces. Can offer capacities of high pressure and hightorque in the wide of applications. Advanced design in disc distrbution flow, which can automatically compensate in operating with high volume efficiency and long life,provide smooth and reliable operation.


What benefit can i get?

As it's performance is 98% near the below manufacturers, however it's price is more than 50% lower than the below manufacturers, it has been widely used in the Construction, Heavy Equipment, Farm & Agri, Mining, Metallurgical, Chemical, Transportation industries. If you sell $1,000,000 a year, you raise profit by 50%, $500,000.


1. Hanjiu BMV-800-4ADB = Eaton Char lynn 10000 series (10k series), from USA

2. Hanjiu BMV-800-4ADB = OMV series, from Danmark

3. Hanjiu BMV-800-4ADB = M+S MV series, from Bulgaria

4. we have strong ability to match OEM part no. and provide you.


Specifications/ Technical Data:

This Orbit hydraulic motor BMV is a big motor compare with other series like BMM(OMM,MM), BMP(OMP, MP), BMR(OMR, MR), BMH(OMH, MH), it's displacement start from 315 ml/r to 1000 ml/r, speed from 200 rpm to 630 ml/r, torque from 1110 N.m to 2400 N.m, max output from 28.6 kw to 56.0 kw, max flow from 160 L/min to 240 L/min. Below is the detail specifications of this BMV Orbit hydraulic motors.
