Product Details:
Payment & Shipping Terms:
|
| Type: | Orbit Hydraulic Motor | Model No.: | BMH-315-2-S-D-N1 |
|---|---|---|---|
| Displacement: | 315 Ml/r | Brand: | Hanjiu |
| Highlight: | 315ml/r Geroler Orbital Motors,Hydraulic Motor Geroler Orbital Motors,Big radial force Geroler Orbital Motors |
||
Welcome to the website of Hanjiu Technology
We focus on the design, development, manufacture and export of high-quality hydraulic products
You can get hydraulic motors suitable for any equipment here
We have various series, various sizes, various speeds and torques

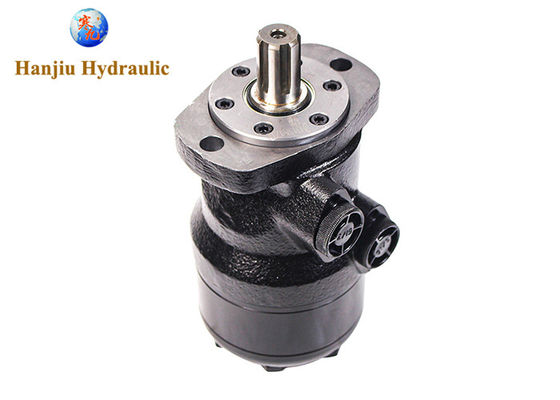

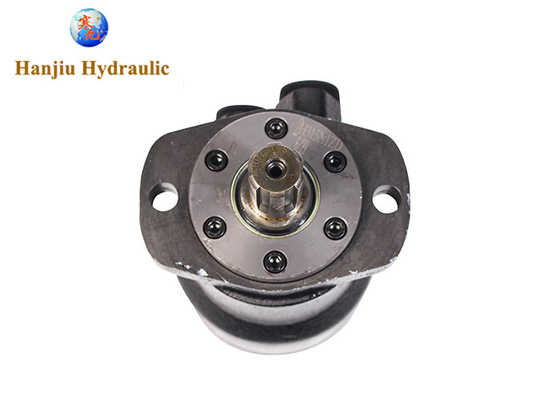

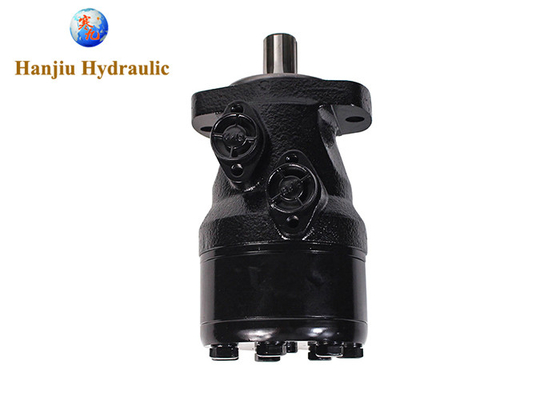

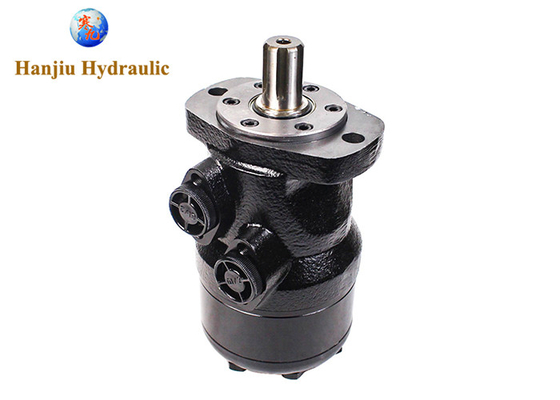

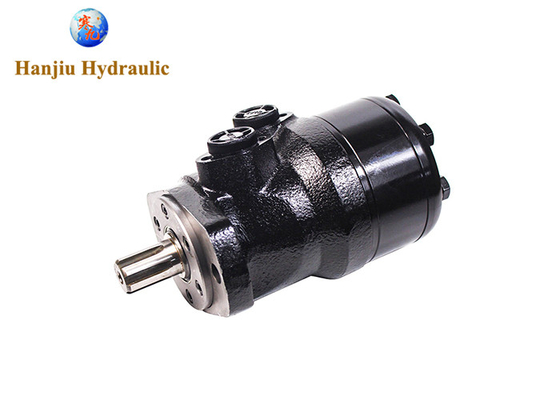

This series is the BMH series hydraulic motor
Model: BMH-315-2-S-D-N1
Displacement: 315ml/r
Flange: 2×Ø13.5 Rhomb×flange Pilot Ø82.5×6
Shaft: Shaft Ø25.4 , parallel key SAE 6B
Rotation :Standard
BMH hydraulic motor Main specifiction:
| Type |
BMH 200 |
BMH 250 |
BMH 315 |
BMH 400 |
BMH 500 |
|
|
Displacement (cc/rev) |
203.2 | 255.9 | 316.5 | 406.4 | 489.2 | |
|
Max torque (n.m) |
cont | 510 | 621 | 740 | 850 | 830 |
| int | 439 | 348 | 282 | 220 | 184 | |
|
Max pressure (mpa) |
cont | 17.5 | 17.5 | 17.5 | 15.5 | 12.5 |
| int | 20 | 20 | 20 | 19 | 16 | |
|
Max speed rate (rpm) |
cont | 366 | 290 | 236 | 183 | 155 |
| int | 439 | 348 | 282 | 220 | 184 | |
|
Max flow (L/min) |
cont | 75 | 75 | 75 | 75 | 75 |
| int | 90 | 90 | 90 | 90 | 90 | |
|
Weight(kg)
|
10.5 | 11 | 11.5 | 12.3 | 13.0 | |
About Us:
We are a hydraulic motor manufacturer from China, specializing in the manufacturing, research and development, design and customization of low-speed and high-torque hydraulic motors. Developed for applications requiring low speed high torque, our motors are available in different types depending on their rotation speed and maximum torque capacity. Capacity is between 8 and 980 cm3. From China, we have an annual output of more than 200,000 units and stable delivery . Welcome to contact us for the latest price.
