| Product Name: | Hydraulic Orbital Motors | Displacement: | 80cc,100cc,125cc,160cc |
|---|---|---|---|
| Applications: | Garbage Truck | Material: | Cast Iron |
| Valve Type: | P80 | Max.flow: | Cont 60/int.75 L/min |
| Highlight: | P80 Monoblock Valve,BMR Monoblock Valve,Garbage Truck Hydraulic System Monoblock Valve |
||
Hanjiu technology supply hydraulic orbit motors and hydraulic valves for garbage truck
the drive motor type is BMR series motor, BMSY series motor
also hydraulic monoblock valve, with spring control and detent control
the pressue is 20-25Mpa
Motor type

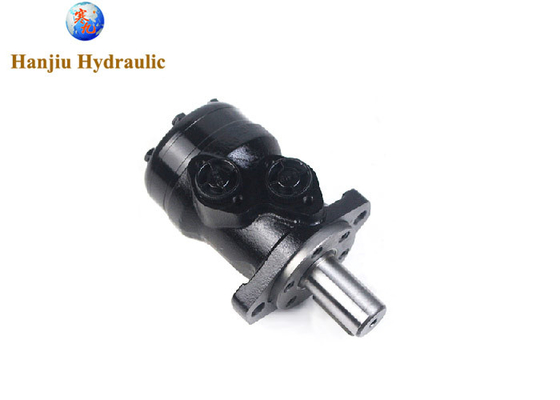

BMR160:
displacement:160cc
flange :2 bolts flange
shaft:25mm shaft
ports: G1/2

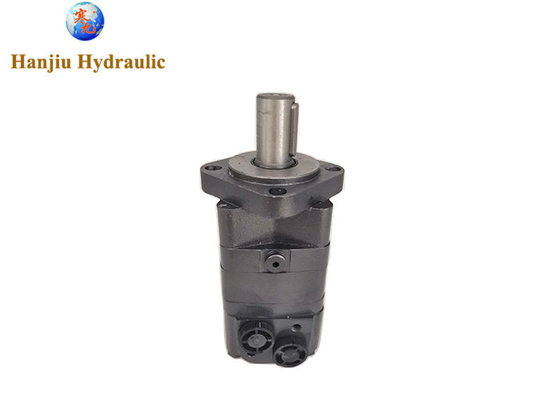

BMSY200:
displacement:200cc
flange:4 bolts standard flange
shaft:32mm key shaft
ports:G1/2

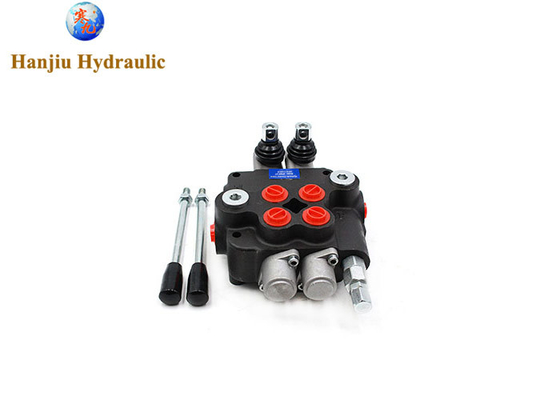

Hydraulic valve
type:2P80
flow rate:80liters
pressure:200bar
control type:detent control
Main Specifications:
Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:
| Type | BMR BMRS 36 |
BMR BMRS 50 |
BMR BMRS 80 |
BMR BMRS 100 |
BMR BMRS 125 |
BMR BMRS 160 |
BMR BMRS 200 |
BMR BMRS 250 |
BMR BMRS 315 |
BMR BMRS 375 |
|
| Geometric displacement (cm3/rev.) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 | |
| Max. speed (rpm) | cont. | 1085 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
| int. | 1220 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 | |
| Max. torque (N·m) | cont. | 72 | 100 | 195 | 240 | 300 | 360 | 360 | 390 | 390 | 365 |
| int. | 83 | 126 | 220 | 280 | 340 | 430 | 440 | 490 | 535 | 495 | |
| peak | 105 | 165 | 270 | 320 | 370 | 460 | 560 | 640 | 650 | 680 | |
| Max. output (kW) | cont. | 8.5 | 9.5 | 12.5 | 13 | 12.5 | 12.5 | 10 | 7 | 6 | 5 |
| int. | 9.8 | 11.2 | 15 | 15 | 14.5 | 14 | 13 | 9.5 | 9 | 8 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 17.5 | 17.5 | 17.5 | 16.5 | 13 | 11 | 9 | 7 |
| int. | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 15 | 13 | 10 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 17.5 | 15 | |
| Max. flow (L/min) | cont. | 40 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 45 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8 | 8.5 | 9 | 9.5 | |
Hydraulic Components in Hook-Arm Garbage Trucks
Hydraulic systems are essential for the efficient operation of hook-arm garbage trucks. These systems provide the power to lift, tilt, and load garbage containers onto the truck.
Key Hydraulic Components
Hydraulic Pump Converts mechanical energy into hydraulic power. Typically, a high-displacement piston pump is used to handle the heavy loads involved in lifting and tilting.
Hydraulic Cylinders These generate the force to lift, tilt, and lock the hook arm.
Hook Arm Cylinder Lifts and lowers the hook arm.
Tilt Cylinder Tilts the truck chassis for unloading.
Locking Cylinder Secures the garbage container to the hook arm.
Hydraulic Valves Control the flow and direction of hydraulic oil. Directional control valves are used to operate the various functions of the truck.
Hydraulic Accumulators Store hydraulic energy to cushion pressure spikes and provide emergency power.
Hydraulic Oil The fluid medium that transmits power throughout the system.
Hydraulic Filters Remove contaminants from the hydraulic oil to protect components.
Hydraulic Hoses and Fittings Connect the various components of the hydraulic system.
How the System Works
Lifting the Hook Arm The hook arm cylinder extends, lifting the hook arm to engage the container.
Tilting the Truck The tilt cylinder tilts the truck chassis to facilitate loading and unloading.
Locking the Container The locking cylinder secures the container to the hook arm during transport.
Unloading the Container The hook arm cylinder lowers the hook arm, releasing the container.
Challenges in Hook-Arm Garbage Truck Hydraulics
Harsh operating conditions Exposure to dirt, debris, and varying weather conditions.
Heavy loads Components must be robust to handle the weight of garbage containers.
Frequent operation The hydraulic system experiences frequent cycles, requiring durability.
Maintenance Regular inspections and fluid changes are essential to prevent breakdowns.
hydraulic components in hookarm garbage truck
Would you like to focus on a specific component or aspect of hook-arm garbage truck hydraulics
I can provide more detailed information or troubleshooting tips.
