Product Details:
Payment & Shipping Terms:
|
| Type: | High Torque Hydraulic Motor | Max Speed: | 724rpm-924rpm |
|---|---|---|---|
| Displacement: | 100cc | Warranty: | 12-18 Months |
| Application: | Electric Forklist. | Torque: | 295N.M-5445N.M |
| Flow: | 75--95 L/MIN | Material: | Cast Iron |
| Highlight: | BME2-100 Series torqmotor,electric forklift motor torqmotor,2 blots tapered shaft torqmotor |
||

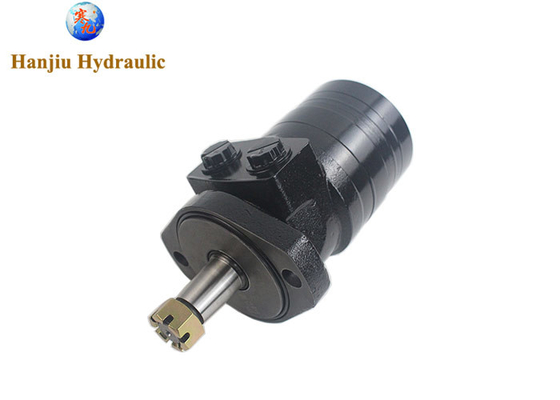

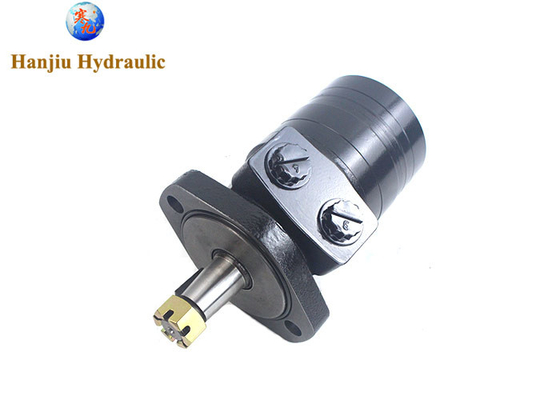

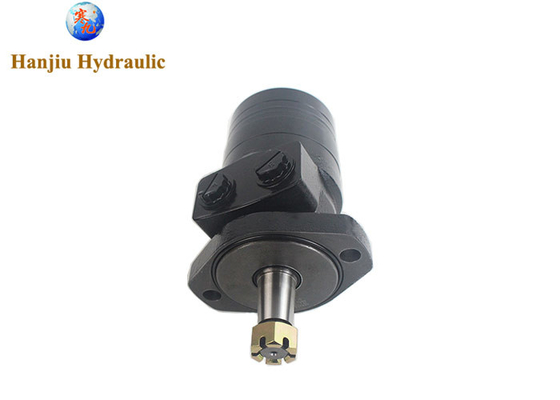

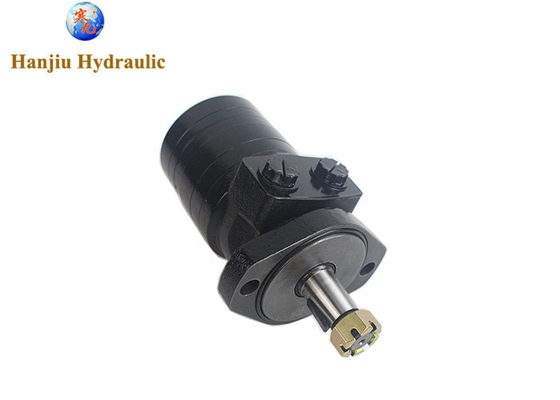

type code:BME2
displacement:100cc
flange:SAE "A" 2 Bolt
port:7/8-14 SAE
shaft:Tapered shaft
Main Specifications:
| Type | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | |
| 65 | 80 | 100 | 125 | 160 | 200 | 230 | 250 | 295 | 315 | 375 | ||
| Geometric displacement | 66.8 | 81.3 | 101.6 | 127 | 157.2 | 193.6 | 226 | 257 | 287.8 | 314.5 | 370 | |
| (cm3 /rev.) | ||||||||||||
| Max. speed (rpm) | cont. | 667 | 543 | 439 | 350 | 283 | 229 | 247 | 216 | 296 | 178 | 152 |
| int. | 842 | 689 | 553 | 441 | 355 | 289 | 328 | 287 | 254 | 235 | 199 | |
| Max. torque (N*m) | cont. | 126 | 157 | 191 | 245 | 307 | 382 | 378 | 381 | 393 | 448 | 439 |
| int. | 176 | 215 | 268 | 335 | 422 | 520 | 528 | 543 | 547 | 587 | 613 | |
| Max. output (kW) | cont. | 8.3 | 8.8 | 7.9 | 8.9 | 8.9 | 9 | 9.9 | 9.3 | 8.7 | 8 | 7.6 |
| int. | 13.9 | 14.4 | 13.5 | 14.1 | 15.6 | 15.7 | 17.9 | 16.5 | 15.6 | 14.3 | 14 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 14 | 14 | 14 | 14 | 12 | 11 | 10 | 10 | 9 |
| int. | 19 | 19 | 19 | 19 | 19 | 19 | 16.5 | 15.5 | 14.5 | 13.5 | 12.5 | |
| peak | 20 | 20 | 20 | 20 | 20 | 20 | 18 | 18 | 17 | 16 | 16 | |
| Max. flow (L/min) | cont. | 45 | 45 | 45 | 45 | 45 | 45 | 57 | 57 | 57 | 57 | 57 |
| int. | 57 | 57 | 57 | 57 | 57 | 57 | 75 | 75 | 75 | 75 | 75 | |
another product we also slupply for forklift ---hydraulic valve:
and gear pump for forklift
HANJIU TECHNOLOGY,is a young innovational manufacturer,was established in Shijiazhuang in 2011 by Mr.HAN,who is an engineer and has been working more than 15years on the hydraulic and automatic fields.
During 10 years,HANJIU became a market leader in China and customers are from all over the world.
Right now,HANJIU Brand is becoming one of the worldwide hydraulic brands with the widest range and depth of hydraulic products in the market.
Applications of Orbital Hydraulic Motors
Construction equipment Excavators, loaders, cranes
Agricultural machinery Tractors, harvesters
Industrial machinery Presses, conveyors, mixers
Marine applications Winches, steering systems
Mobile equipment Forklifts, aerial work platforms
