BMSY-200-WE-F-MU-B BMSY Series Orbital Motors 200cc 4 Bolt Wheel Mounted Flange Spline Shaft And Side Port

Large Image : BMSY-200-WE-F-MU-B BMSY Series Orbital Motors 200cc 4 Bolt Wheel Mounted Flange Spline Shaft And Side Port

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE, ISO9001
Model Number:	BMSY-200-WE-F-MU-B

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	Contact seller for latest offer
Packaging Details:	Box, carton, pallet
Delivery Time:	0 - 35 work days
Payment Terms:	T/T
Supply Ability:	200000 pieces per year

Contact Now

Detailed Product Description

Product:

Hydraulic Motor

Model No.:

BMSY-200-WE-F-MU-B

Manufacturer:

Hanjiu

Brand:

Hanjiu

Highlight:

200cc BMSY series Orbital Motors

side port BMSY series Orbital Motors

200cc orbit hydraulic motor

Orbital Motors BMSY series BMSY-200-WE-F-MU-B wheel mounted 200cc spline shaft

Quick review:

BMSY-200-WE-F-MU-B

Port Size:manifold ports,φ12.7,φ15.8
flange: wheel mounting
displacement:200cc
Shaft:31.75mm,14 teeth spline shaft
Port Location:side ported
Flow Rating :75l/min
Max Speed:cont.240rpm,int.280 rpm
Shaft seal:High pressure seal Kit
function:low leakage
Country of Manufacture China

BMS series with more mounting and shaft apply to Swing Motor, Brush Cutters & Mowers, Harvesting Equipment, Directional Boring any place pressure relief protection is optimal for system or motor performance and life, Turf equipment and more.

Specification:

Main Specifications:

Type		BMS BMSE 80	BMS BMSE 100	BMS BMSE 125	BMS BMSE 160	BMS BMSE 200	BMS BMSE 250	BMS BMSE 315	BMS BMSE 375
Geometric displacement (cm3 /rev.)		80.6	100.8	125	157.2	200	252	314.5	370
Max. speed (rpm)	cont.	800	748	600	470	375	300	240	200
Max. speed (rpm)	int.	988	900	720	560	450	360	280	240
Max. torque (N·m)	cont.	190	240	310	316	400	450	560	536
	int.	240	300	370	430	466	540	658	645
	peak	260	320	400	472	650	690	740	751
Max. output (kW)	cont.	15.9	18.8	19.5	15.6	15.7	14.1	14.1	11.8
Max. output (kW)	int.	20.1	23.5	23.2	21.2	18.3	17	18.9	17
Max. pressure drop (MPa)	cont.	17.5	17.5	17.5	15	14	12.5	12	10
	int.	21	21	21	21	16	16	14	12
	peak	22.5	22.5	22.5	22.5	22.5	20	18.5	14
Max. flow (L/min)	cont.	65	75	75	75	75	75	75	75
Max. flow (L/min)	int.	80	90	90	90	90	90	90	90
Max. inlet pressure (MPa)	cont.	25	25	25	25	25	25	25	25
Max. inlet pressure (MPa)	int.	30	30	30	30	30	30	30	30
Weight (kg)		9.8	10	10.3	10.7	11.1	11.6	12.3	12.6

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

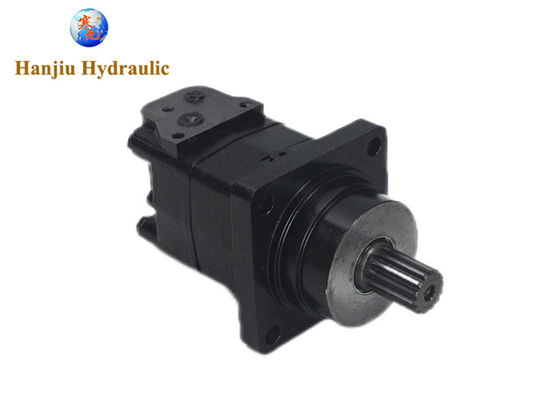

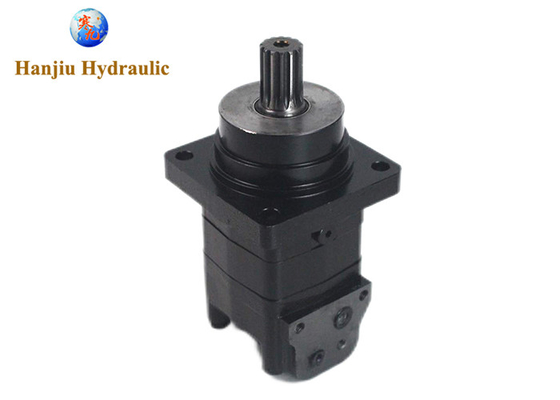

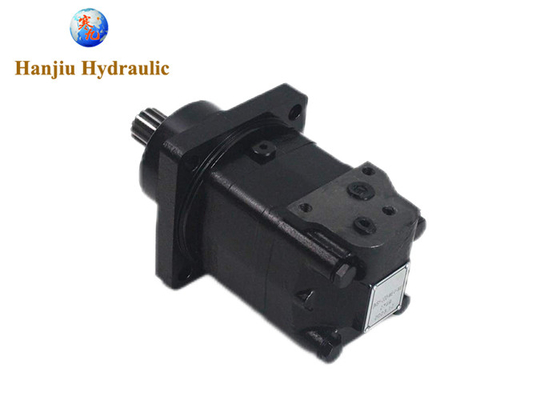

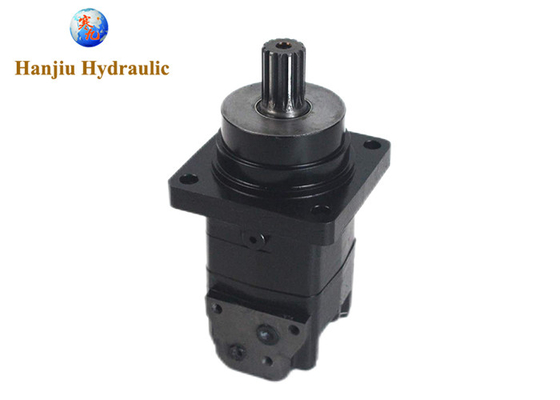

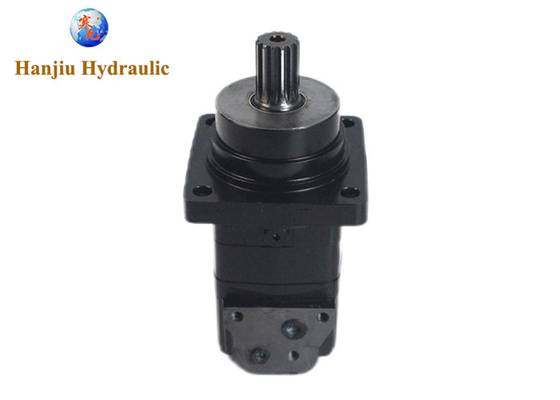

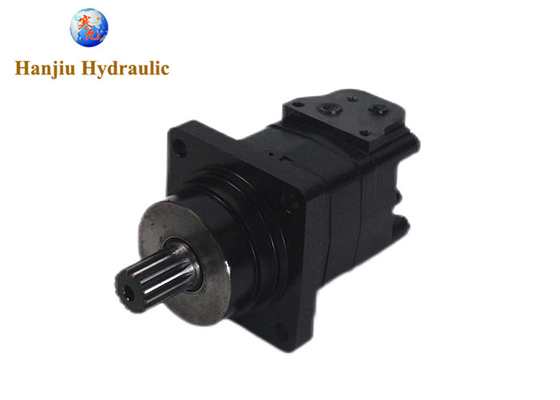

BMSY-200-WE-F-MU-B BMSY Series Orbital Motors 200cc 4 Bolt Wheel Mounted Flange Spline Shaft And Side Port 0

BMSY-200-WE-F-MU-B BMSY Series Orbital Motors 200cc 4 Bolt Wheel Mounted Flange Spline Shaft And Side Port 1

More BMSY series hydraulic motors available from us:

Hydraulic Wheel Motor Replace Danfoss Type BMSY Hydraulic Motor Displacement 200CC Manifold Side Port 6

HANJIU is an expert in hydraulic motors . HANJIU orbit motors have complete specifications, fast manufacturing, reasonable prices and fine quality. HANJIU enthusiastically looks forward to working for people all over the world

Hydraulic Wheel Motor Replace Danfoss Type BMSY Hydraulic Motor Displacement 200CC Manifold Side Port 7

About Hanjiu:

Hanjiu technology is the biggest hydraulic motors, orbit motors, low speed high torque motors, torquemotors manufacturer in China, we have the most completely range of them, matching Danfoss/ M+S/ Charlynn/ White/ Parker... with fast leading time, excellent price and best service. Our aim is to make your hydraulic system is easy and affordable!
