Product Details:
Payment & Shipping Terms:
|

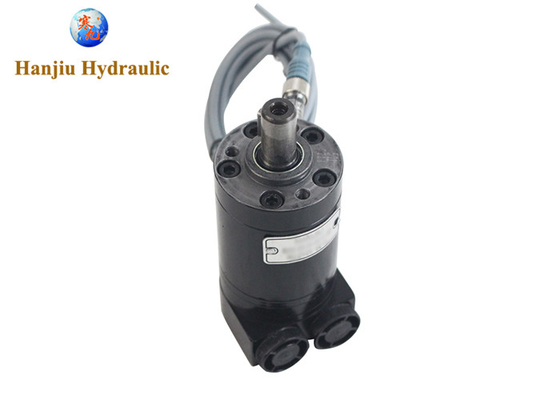

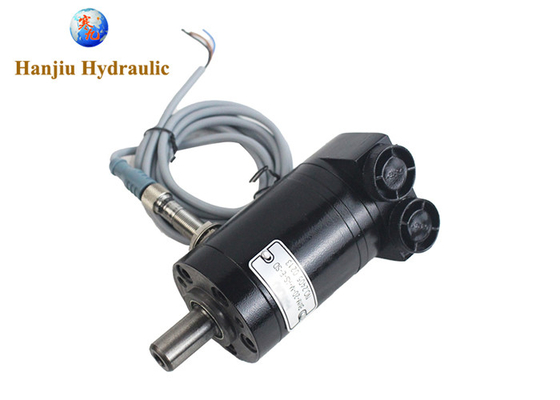

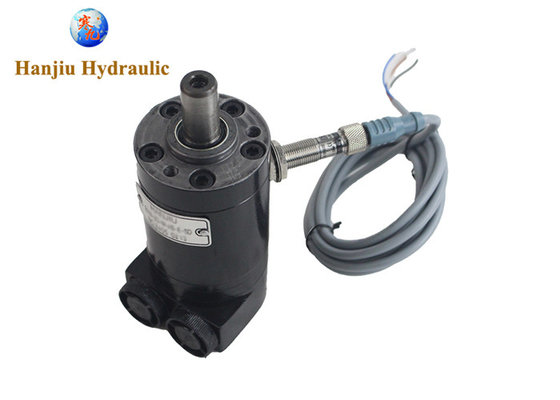

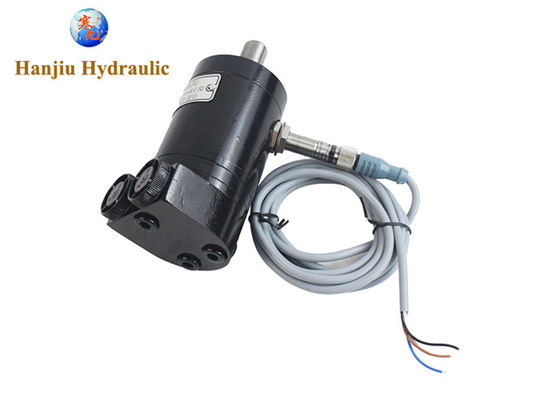

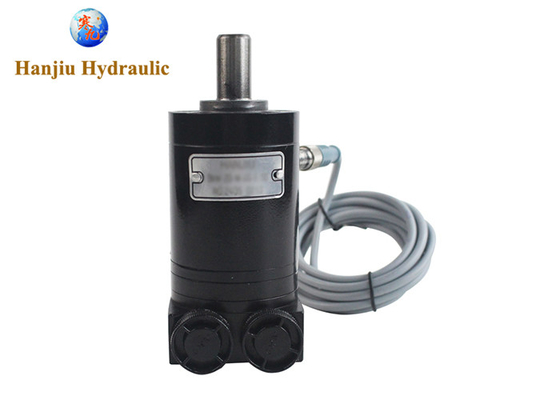

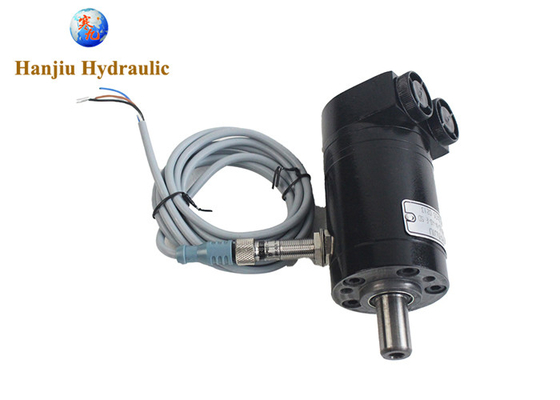

| Item: | Hydraulic Motor | Model No.: | BMM-20-M-AS-E-SD |
|---|---|---|---|
| Manufacturer: | Hanjiu | Origion: | China |
| Highlight: | Side Ports Hydraulic motor,20ml/r Hydraulic motor,speed sensor Hydraulic motor |
||
Product Details:
Brand: Hanjiu
type: OMM BMM series
shaft: key shaft
ports: side ports
special: with speed sensor
Main Specifications:
| type | BMM8 | BMM12 | BMM20 | BMM32 | BMM40 | BMM50 | |
| displacement | 8.2 | 12.9 | 19.9 | 31.6 | 39.8 | 50.3 | |
| Max speed(rpm) | rated | 1537 | 1256 | 814 | 513 | 452 | 358 |
| Cont. | 1950 | 1550 | 1000 | 630 | 500 | 400 | |
| int. | 2450 | 1940 | 1250 | 800 | 630 | 500 | |
| Max Torque (N*M) |
rated | 8 | 13 | 19 | 31 | 37 | 33 |
| Cont. | 11 | 16 | 25 | 40 | 45 | 46 | |
| int. | 15 | 23 | 35 | 57 | 70 | 88 | |
| peak | 21 | 33 | 51 | 64 | 82 | 100 | |
| Max speed (kw) |
rated | 1.3 | 1.7 | 1.7 | 1.7 | 1.7 | 1.2 |
| Cont. | 1.8 | 2.4 | 2.4 | 2.4 | 2.2 | 1.8 | |
| int. | 2.6 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | |
| Max pressure drop(MPa) |
rated | 9 | 9 | 9 | 9 | 8.5 | 6 |
| Cont. | 10 | 10 | 10 | 10 | 9 | 7 | |
| int. | 14 | 14 | 14 | 14 | 14 | 14 | |
| peak | 20 | 20 | 20 | 16 | 16 | 16 | |
| Max flow(L/min) | rated | 14 | 18 | 18 | 18 | 20 | 20 |
| Cont. | 18 | 20 | 20 | 20 | 20 | 20 | |
| int. | 20 | 25 | 25 | 25 | 25 | 25 | |
| Weight(kg) | 1.9 | 2 | 2.1 | 2.2 | 2.3 | 2.4 | |
Features:
Advanced manufacturing devices for the Geroler gear set, which use low pressure of start-up, provide smooth and reliable
operation and high efficiency.
The output shaft adapts in tapered roller bearings that permit high axial and radial forces. The case can offer capacities
of high pressure and high torque in the wide of applications.
Advanced design in disc distribution flow, which can automatically compensate in operating with high volume efficiency
and long life, provide smooth and reliable operation.
The new series motor is suitable for vehicles with greater loads and pressure drop.
