| Material: | Cast Iron /Steel | Max.speed(rpm): | Cont.200rpm/int.240rpm |
|---|---|---|---|
| Max.torque(N.m): | Cont.2015N.m/int.2280N.m | Max.pressure Drop: | Cont.14mpa/int.16Mpa |
| Oil Temperature: | Normal-35℃-80℃ | Viscosity: | 42-74mm2/s |
| Highlight: | BMVE1000 orbit hydraulic motor,40mm key shaft orbit hydraulic motor,Parker TGK orbit hydraulic motor |
||

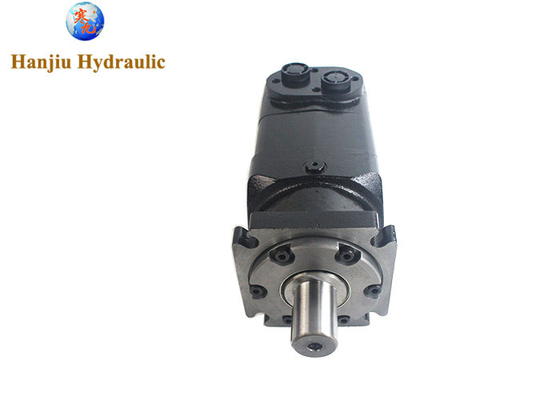

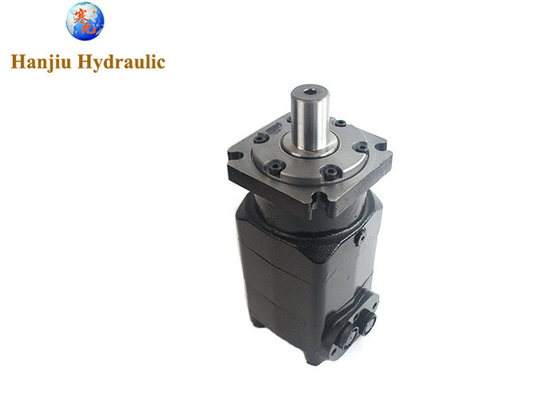

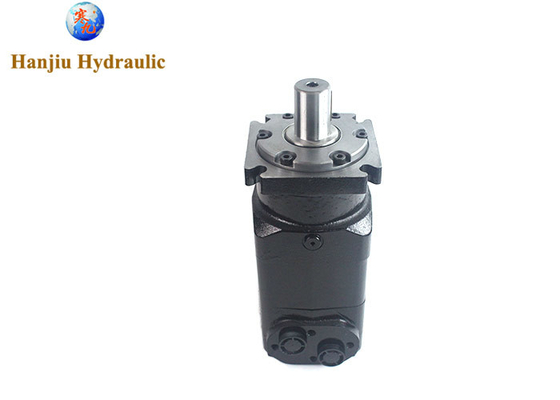

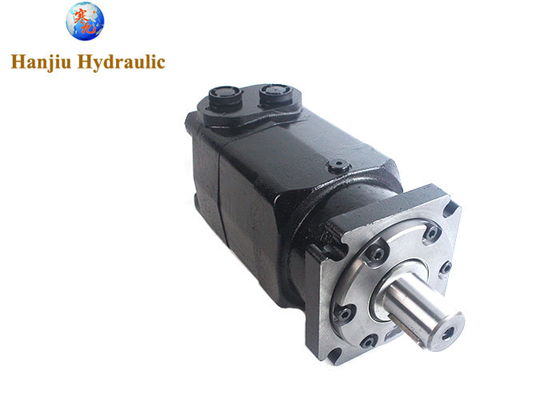

wood cone splitter orbit hydraulic motor BMVE1000 motor, replacement Parker TGK motor ,40mm key shaft,
BSPP G1 ports
Main spec.
Geometrical displacement (cm3/r): 960
Max. Speed (min-1 [rpm]): 200/240 rpm
Max. Torque (Nm [lbf·in]): 2015N.m
Max. Output (kW [hp]): 40 [57.0]
Max. Oil flow (l/min [USgal/ min]): 200 [52.8]
Max. Inlet pressure (bar [psi]): 210 [3050]
Main Specification:
| Type | BMV 315 | BMV 400 | BMV 500 | BMV 630 | BMV 800 | BMV 1000 | |
| Geometric displacement (cm3 /rev.) | 333 | 419 | 518 | 666 | 801 | 990 | |
| Max. speed (rpm) | cont. | 510 | 500 | 400 | 320 | 250 | 200 |
| int. | 630 | 600 | 480 | 380 | 300 | 240 | |
| Max. torque (N·m) | cont. | 920 | 1180 | 1460 | 1660 | 1880 | 2015 |
| int. | 1110 | 1410 | 1760 | 1940 | 2110 | 2280 | |
| peak | 1290 | 1640 | 2050 | 2210 | 2470 | 2400 | |
| Max. output (kW) | cont. | 38 | 47 | 47 | 40 | 33 | 28.6 |
| int. | 46 | 56 | 56 | 56 | 44 | 40 | |
| Max. pressure drop (MPa) | cont. | 20 | 20 | 20 | 18 | 16 | 14 |
| int. | 24 | 24 | 24 | 21 | 18 | 16 | |
| peak | 28 | 28 | 28 | 24 | 21 | 18 | |
| Max. flow (L/min) | cont. | 160 | 200 | 200 | 200 | 200 | 200 |
| int. | 200 | 240 | 240 | 240 | 240 | 240 | |
| Weight (kg) | 31.8 | 32.6 | 33.5 | 34.9 | 36.5 | 38.6 | |
Types of Heavy Duty Hydraulic Motors
While various types of hydraulic motors exist, the following are commonly used for heavy-duty applications
Orbital Motors Renowned for their high starting torque and smooth operation, they are often used in construction and mining equipment.
Piston Motors Offering high power density, these motors are suitable for applications requiring high torque and speed.
Gear Motors Provide high torque at lower speeds, making them ideal for heavy-duty machinery.
Key Characteristics of Heavy Duty Hydraulic Motors
High torque output To handle heavy loads and resist shock.
Robust construction Built with durable materials to withstand harsh conditions.
Efficient operation Optimized for energy efficiency and performance.
Overload capacity Ability to handle temporary peak loads.
Reliable performance Designed for continuous operation in demanding environments.
Applications for Heavy Duty Hydraulic Motors
Construction equipment Excavators, bulldozers, cranes, and mining machinery.
Industrial machinery Presses, conveyors, and heavy-duty processing equipment.
Marine applications Winches, propulsion systems, and deck machinery.
Agriculture Large tractors and harvesting equipment.
Selecting the Right Heavy Duty Hydraulic Motor
When choosing a heavy-duty hydraulic motor, consider
Required torque and speed Match the motor's specifications to your application.
Operating pressure Ensure the motor can handle the system's pressure.
Mounting options Select a motor with the appropriate mounting flange.
Fluid compatibility Choose a motor compatible with the hydraulic fluid used in your system.
Environmental conditions Consider factors like temperature, humidity, and contamination.
Duty cycle Evaluate the motor's ability to handle continuous or intermittent loads.
Would you like to discuss a specific heavy-duty application or require assistance in selecting a suitable hydraulic motor
I can provide more detailed information and recommendations based on your requirements.
This is talk new business chance, new profit growth methods, while maintain and carry forward your public praise. We, HANJIU, hydraulic manufacturer from China are willing to try to be your another choice
