Product Details:
Payment & Shipping Terms:
|

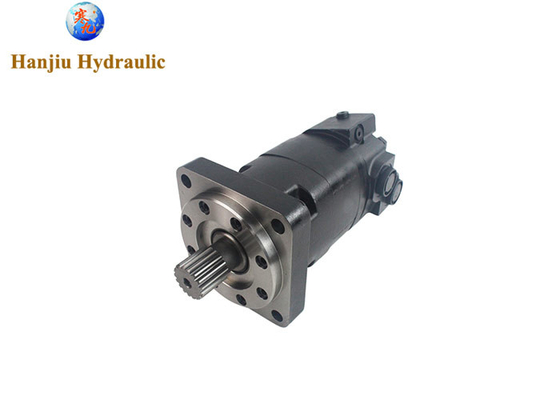

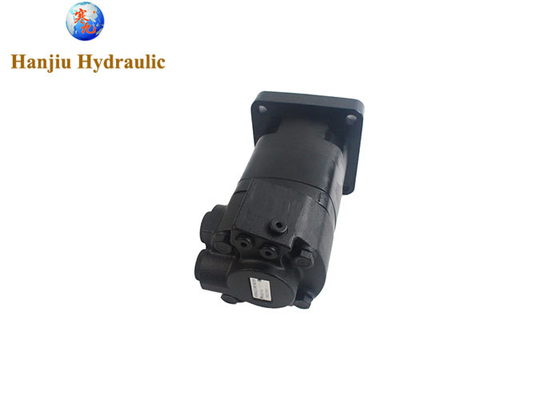

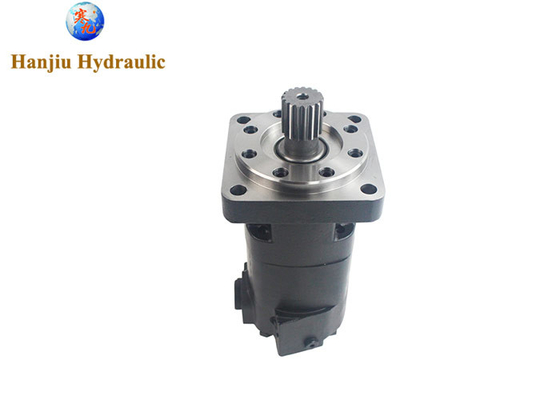

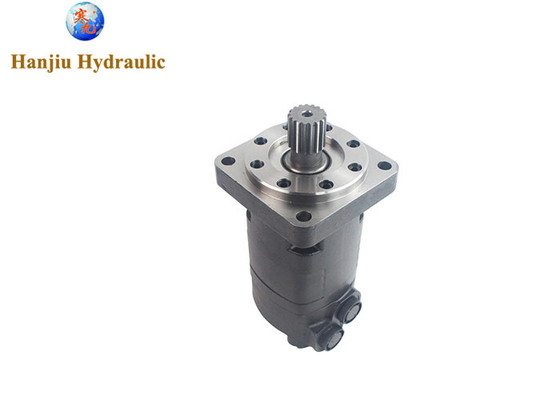

| Features: | Charlynn Replacement | Type: | Low Speed High Torque Motor |
|---|---|---|---|
| Series: | 109-1196-006 | Material: | Cast Iron |
| Origin: | China | Displacement: | 19.00 Cu In/rev |
| Mounting Type: | STANDARD, 4 BOLT, SAE Cmount | ||
| Highlight: | 109-1196-006 disc valve motor,Eaton hydraulic orbit motor,Disc Valve hydraulic orbit motor |
||
Quick review:
| 109-1196-006 | BMK4-315-AC-C-S | |
| Model Code: | M04190AF10AC0300000000000AA00F | |
| Feature | Code | Description |
| PRODUCT | M | MOTOR |
| SERIES | 04 | 4000 SERIES |
| DISPLACEMENT | 190 | 311.8 CM3/R [19.03 IN3/R] |
| MOUNTING TYPE | AF | STANDARD, 4 BOLT; 127.00 [5.000] PILOT DIA.14.27 [.562] DIA. HOLES ON 161.92 [6.375] DIA. BOLT CIRCLE. (SAE C) |
| OUTPUT SHAFT | 10 | 38.10 [1.500] DIA. FLAT ROOT SIDE FIT, 17 TOOTH, 12/24 DP 30 DEG. INVOLUTE SPLINE, 31.2 [1.23] MINIMUM FULL SPLINE LENGTH, WITH .375-16 UNC-2B THREAD IN END |
| PORTS | AB | 1.0625-12 UN-2B SAE O-RING PORTS - STAGGERED PORTS |
| FLOW OPTIONS | 2 | .4375-20 UNF-2B SAE O-RING PORT WITH CHECK VALVE |
| LOW PRESSURE RELIEF | 0 | NONE |
| PRESSURE/FLOW OPTION | 0 | NONE |
| GEROLER OPTION | 0 | STANDARD |
| SEAL OPTION | 0 | STANDARD |
| ACCESSORIES | 0 | NONE |
| SPECIAL FEATURES (HARDWARE) | 0 | NONE |
| SPECIAL FEATURES (ASSEMBLY) | 0 | NONE |
| PAINT/PACKAGING | 0 | NO PAINT, INDIVIDUAL BOX |
Application
Mowing, Snow Removal, Sprayer, Trencher, Wood Products
To get the most competitive price for a hydraulic orbital motor, consider the following
Compare multiple suppliers Get quotes from different manufacturers and distributors.
Specify your requirements clearly Clearly outline your motor's specifications to avoid unnecessary costs.
Consider refurbished or rebuilt options These can be more cost-effective.
Negotiate Don't be afraid to negotiate the price, especially for bulk purchases.
If you have specific requirements for your application, I can help you find potential suppliers or provide more accurate pricing information.
Would you like to provide more details about the orbital motor you need, such as displacement, torque, speed, and application
This information will help me narrow down your options and provide more specific pricing information.
Additionally, you can use online marketplaces and industrial equipment suppliers to get a general idea of pricing for different models.
This is talk new business chance, new profit growth methods, while maintain and carry forward your public praise. We, HANJIU, hydraulic manufacturer from China are willing to try to be your another choice. We provide Ogniben, M +S, Sauer Dan foss, EATON, Char-Lynn alternative Hydraulic Motors, Orbitrol, Control Valve with super strong price advantage.
