Product Details:
Payment & Shipping Terms:
|
| Type: | Hydraulic Oil Motor | Material: | Cast Iron |
|---|---|---|---|
| Model No.: | Bmr-bk3b-200-2edgn1 | Displacement: | 200CC |
| Speed: | 310 RPM - 385 RPM | Flow: | 60 Lpm -75 Lpm |
| Pressure: | 17.5mpa-22.5mpa | Output: | 10-13kw |
| Highlight: | SAE 6B spline shaft Hydraulic Motor,White 11029276 Hydraulic Motor,OMR F 200 Hydraulic Motor |
||

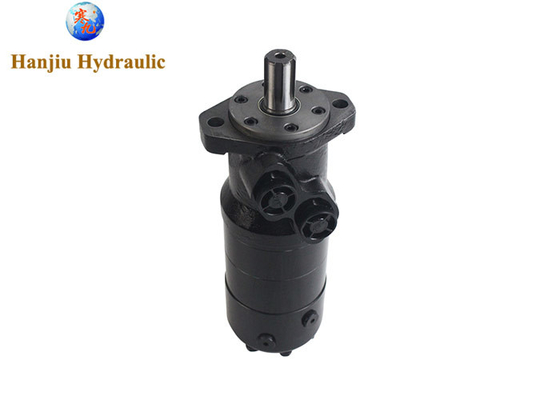

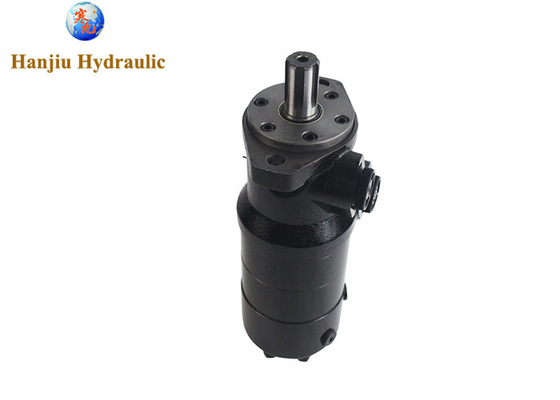

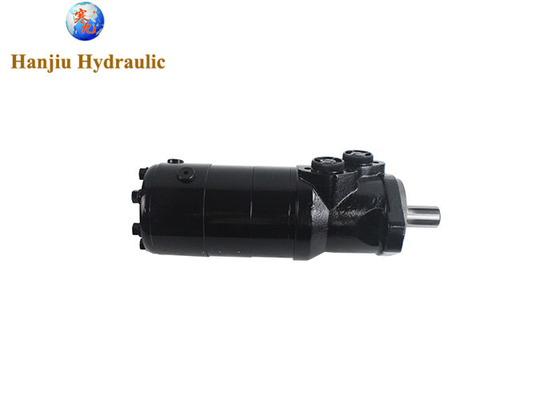

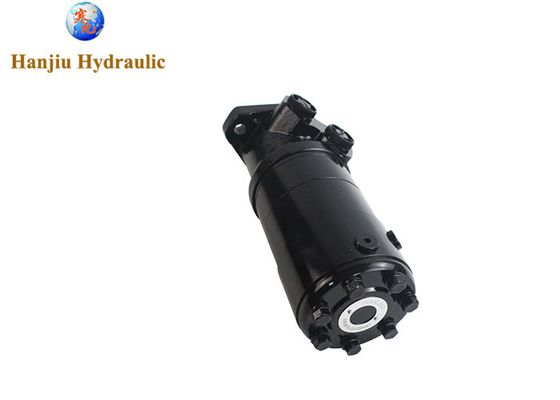

White 11029276 OMR F 200 Hydraulic Motor with Brake release connection G ¼, SAE 6B spline shaft
Specifications:
Specifications:
Main Specifications:
Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:
| Type | BMR Bk3 36 |
BMR Bk3 50 |
BMR Bk01 80 |
BMR Bk3 100 |
BMR Bk01 125 |
BMR Bk3 160 |
BMR Bk3 200 |
BMR Bk3 250 |
BMR Bk3 315 |
BMR Bk3 375 |
|
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 | |
| Max. speed (rpm) | cont. | 1085 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
| int. | 1220 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 | |
| Max. torque (N·m) | cont. | 72 | 100 | 195 | 240 | 300 | 360 | 360 | 390 | 390 | 365 |
| int. | 83 | 126 | 220 | 280 | 340 | 430 | 440 | 490 | 535 | 495 | |
| peak | 105 | 165 | 270 | 320 | 370 | 460 | 560 | 640 | 650 | 680 | |
| Max. output (kW) | cont. | 8.5 | 9.5 | 12.5 | 13 | 12.5 | 12.5 | 10 | 7 | 6 | 5 |
| int. | 9.8 | 11.2 | 15 | 15 | 14.5 | 14 | 13 | 9.5 | 9 | 8 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 17.5 | 17.5 | 17.5 | 16.5 | 13 | 11 | 9 | 7 |
| int. | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 15 | 13 | 10 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 17.5 | 15 | |
| Max. flow (L/min) | cont. | 40 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 45 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8 | 8.5 | 9 | 9.5 | |
When choosing an orbital motor, consider the following factors
Displacement Determines the amount of fluid displaced per revolution.
Operating pressure Affects motor torque and speed.
Speed The desired rotational speed of the output shaft.
Torque The required output force.
Efficiency The desired power conversion efficiency.
Mounting options Compatibility with your equipment.
Environmental conditions The operating environment's impact on the motor.
Would you like to provide more details about your specific application or requirements This information can help me recommend suitable orbital motor options and potential suppliers.
Please feel free to ask any further questions you may have.
This is talk new business chance, new profit growth methods, while maintain and carry forward your public praise. We, HANJIU, hydraulic manufacturer from China are willing to try to be your another choice.
