Product Details:
Payment & Shipping Terms:
|

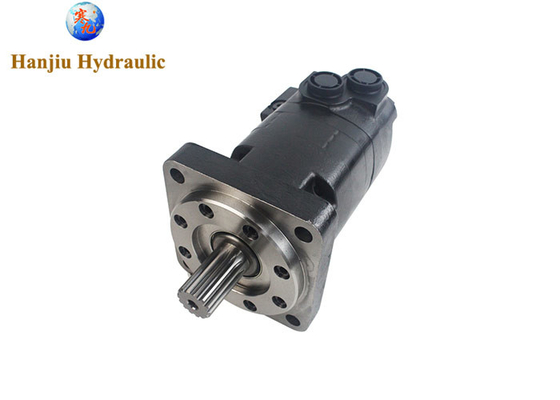

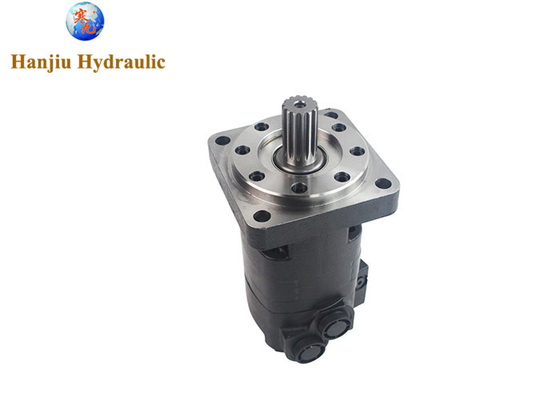

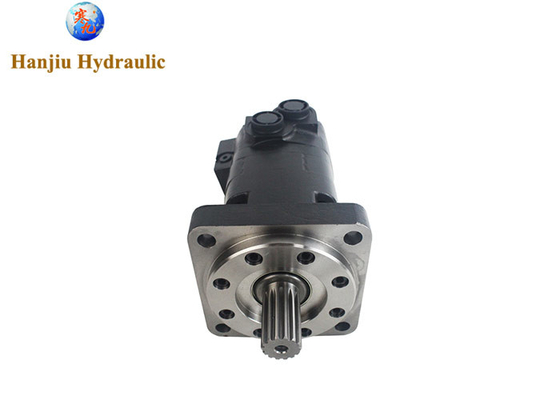

| Features: | Charlynn Replacement | Type: | Disc Geroler Motor |
|---|---|---|---|
| Series: | 109-1304-006 | Material: | Cast Iron |
| Origin: | China | Displacement: | 246.3 CM3/R |
| Mounting Type: | STANDARD, 4 BOLT, SAE C | ||
| Highlight: | 4000 Series Disc Valve Hydraulic Motor,109-1304-006 CharLynn Hydraulic Motor,CharLynn Interchange Hydraulic Motor |
||
Quick review:
| 109-1304-006 | BMK4-315 | |
| Model Code: | M04150AF03AB02000000000000000F | |
| Feature | Code | Description |
| PRODUCT | M | MOTOR |
| SERIES | 4 | 4000 SERIES |
| DISPLACEMENT | 150 | 246.3 CM3/R [15.03 IN3/R] |
| MOUNTING TYPE | AF | STANDARD, 4 BOLT; 127.00 [5.000] PILOT DIA.14.27 [.562] DIA. HOLES ON 161.92 [6.375] DIA. BOLT CIRCLE. (SAE C) |
| OUTPUT SHAFT | 03 | 31.75 [1.250] DIA. FLAT ROOT SIDE FIT, 14 TOOTH, 12/24 DP 30 DEG. INVOLUTE SPLINE, 38.1 [1.50] MINIMUM FULL SPLINE LENGTH WITH .375-16UNC-2B THREAD |
| PORTS | AB | 1.0625-12 UN-2B SAE O-RING PORTS - STAGGERED PORTS |
| FLOW OPTIONS | 02 | .4375-20 UNF-2B SAE O-RING PORT WITH CHECK VALVE |
| LOW PRESSURE RELIEF | 0 | NONE |
| PRESSURE/FLOW OPTION | 0 | NONE |
| GEROLER OPTION | 0 | STANDARD |
| SEAL OPTION | 0 | STANDARD |
| ACCESSORIES | 0 | NONE |
| SPECIAL FEATURES (HARDWARE) | 0 | NONE |
| SPECIAL FEATURES (ASSEMBLY) | 0 | NONE |
| PAINT/PACKAGING | 0 | NO PAINT, INDIVIDUAL BOX |
other types
109-1304-006
109-1305-006
109-1309-006
109-1311-006
109-1314-006
109-1316-006
109-1317-006
109-1318-006
109-1337-006
109-1339-006
109-1346-006
109-1370-006
109-1377-006
109-1379-006
109-1383-006
109-1392-006
109-1393-006
109-1402-006
109-1410-006
109-1432-006
109-1447-006
109-1450-006
109-1470-006
109-1473-006
109-1489-006
109-1519-006
109-1547-006
109-1549-006
109-1557-006
109-1575-006
109-1588-006
109-1619-006
109-1647-006
109-1648-006
109-1649-006
109-1691-006
orbital hydraulic motor working principle
Advantages of Orbital Hydraulic Motors
High starting torque Ideal for heavy loads.
Smooth operation Consistent output without pulsations.
Compact design Efficient use of space.
Reversible Can operate in both clockwise and counterclockwise directions.
Wide speed range Versatile for various applications.
Applications of Orbital Hydraulic Motors
Construction equipment Excavators, loaders, cranes
Agricultural machinery Tractors, harvesters
Industrial machinery Presses, conveyors, mixers
Marine applications Winches, steering systems
Mobile equipment Forklifts, aerial work platforms
Factors Affecting Orbital Hydraulic Motor Performance
Displacement Determines the amount of fluid displaced per revolution.
Operating pressure Affects motor torque and speed.
Speed The rotational speed of the output shaft.
Torque The output force generated by the motor.
Efficiency The ratio of output power to input power.
Choosing the Right Orbital Hydraulic Motor
To select the appropriate orbital hydraulic motor for your application, consider the following factors
Required torque and speed Match the motor's output to your load requirements.
Operating pressure Ensure the motor can handle the system's pressure.
Mounting options Choose a motor with the correct mounting flange and shaft configuration.
Fluid compatibility Select a motor compatible with the hydraulic fluid used in your system.
Environmental conditions Consider factors like temperature, humidity, and contamination.
By carefully considering these factors, you can select an orbital hydraulic motor that meets the specific needs of your application.
Would you like to know more about specific applications or how to select the right orbital hydraulic motor for your project
