Hot Selling China Hydraulic Motor Factory Wholesale BMTY-470 TG0470 TGK0470 Hydraulic Torqmotor 6 Bolt Mounting

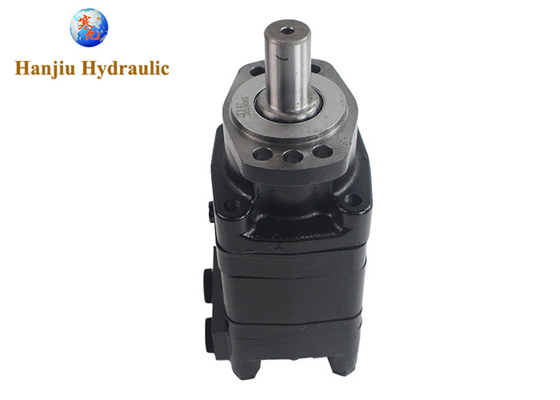

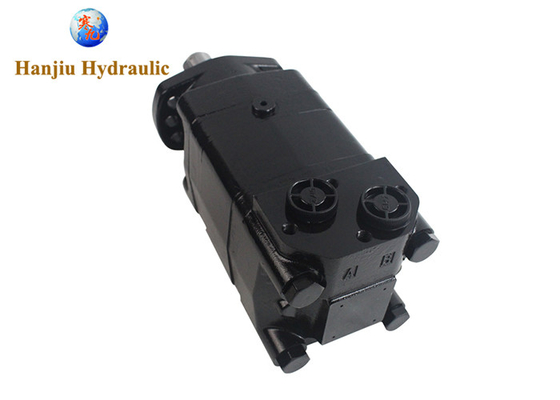

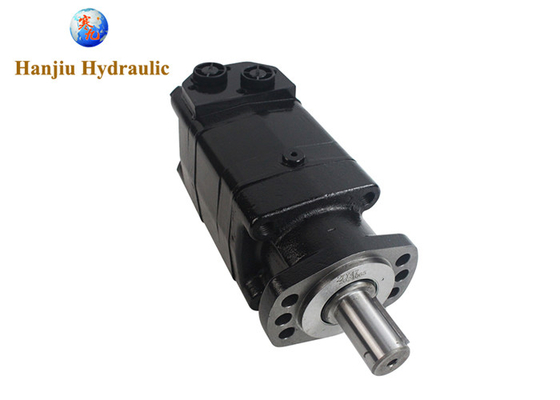

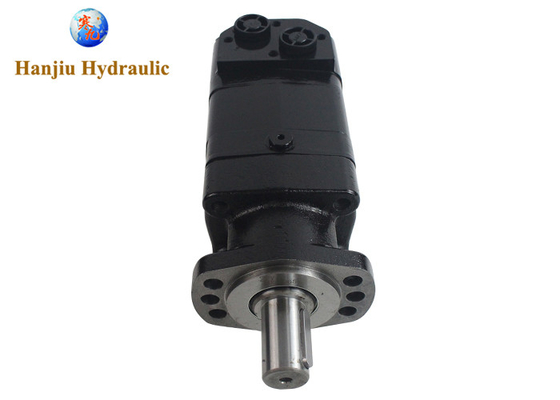

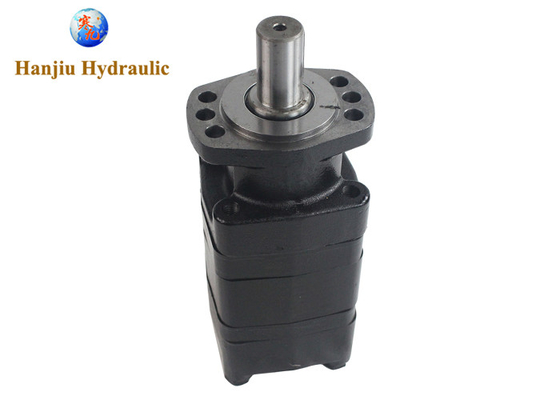

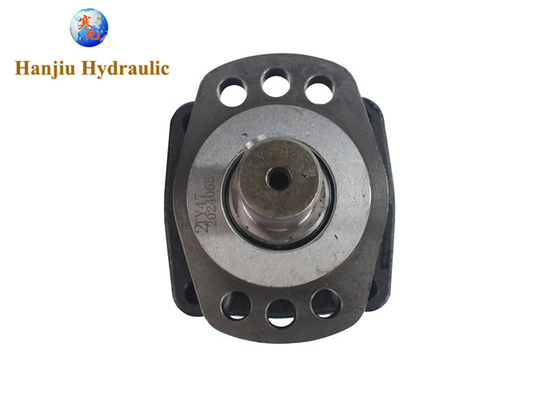

Large Image : Hot Selling China Hydraulic Motor Factory Wholesale BMTY-470 TG0470 TGK0470 Hydraulic Torqmotor 6 Bolt Mounting

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE
Model Number:	BMTY-470

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	160 usd/pc
Packaging Details:	Box, Pallet
Delivery Time:	0 - 45 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	10000 pieces per year

Contact Now

Detailed Product Description

Item:

Orbital Hydraulic Motor

Model Number:

BMTY-470

Size:

470 Ml/r

Brand:

Hanjiu

Highlight:

BMTY-470 hydraulic torqmotor

TG0470 hydraulic torqmotor

6 bolt mounting hydraulic torqmotor

Hot selling China hydraulic motor factory wholesale BMTY-470 TG0470 TGK0470 hydraulic torqmotor, 6 bolt mounting

Quick review:

Hanjiu BMTY = Parker TGK

Quick detail:

Product	Orbital Hydraulic Motor
Model No.	BMTY-470
Size	470 ml/r
Flange	6 Bolt
Rotation	Clockwise

Technical Specs.:

Main Specifications:

Type		BMT 160	BMT 200	BMT 230	BMT 250	BMT 315	BMT 400	BMT 470	BMT 630	BMT 800
Geometric displacement (cm3 /rev.)		161.1	201.4	232.5	251.8	326.3	410.9	523.6	629.1	801.8
Max. speed (rpm)	cont.	625	625	536	500	380	305	240	196	154
Max. speed (rpm)	int.	780	750	643	600	460	365	285	233	185
Max. torque (N·m)	cont.	470	590	670	730	950	1080	1220	1318	1464
	int.	560	710	821	880	1140	1260	1370	1498	1520
	peak	669	838	958	1036	1346.3	1450.3	1643.8	1618.8	1665
Max. output (kW)	cont.	27.7	34.9	34.7	34.5	34.9	31.2	28.8	25.3	22.2
Max. output (kW)	int.	32	40	40	40	40	35	35	27.5	26.8
Max. pressure drop (MPa)	cont.	20	20	20	20	20	18	16	14	12.5
	int.	24	24	24	24	24	21	18	16	13
	peak	28	28	28	28	28	24	21	19	16
Max. flow (L/min)	cont.	100	125	125	125	125	125	125	125	125
Max. flow (L/min)	int.	125	150	150	150	150	150	150	150	150
Max. inlet pressure (MPa)	cont.	21	21	21	21	21	21	21	21	21
	int.	25	25	25	25	25	25	25	25	25
	peak	30	30	30	30	30	30	30	30	30
Weight (kg)		19.5	20	20.4	20.5	21	22	23	24	25

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

Hot Selling China Hydraulic Motor Factory Wholesale BMTY-470 TG0470 TGK0470 Hydraulic Torqmotor 6 Bolt Mounting 0

Hot Selling China Hydraulic Motor Factory Wholesale BMTY-470 TG0470 TGK0470 Hydraulic Torqmotor 6 Bolt Mounting 1

Hot Selling China Hydraulic Motor Factory Wholesale BMTY-470 TG0470 TGK0470 Hydraulic Torqmotor 6 Bolt Mounting 2

Hot Selling China Hydraulic Motor Factory Wholesale BMTY-470 TG0470 TGK0470 Hydraulic Torqmotor 6 Bolt Mounting 3

Hot Selling China Hydraulic Motor Factory Wholesale BMTY-470 TG0470 TGK0470 Hydraulic Torqmotor 6 Bolt Mounting 4

Hot Selling China Hydraulic Motor Factory Wholesale BMTY-470 TG0470 TGK0470 Hydraulic Torqmotor 6 Bolt Mounting 5

Hot Selling China Hydraulic Motor Factory Wholesale BMTY-470 TG0470 TGK0470 Hydraulic Torqmotor 6 Bolt Mounting 6

Hot Selling China Hydraulic Motor Factory Wholesale BMTY-470 TG0470 TGK0470 Hydraulic Torqmotor 6 Bolt Mounting 7

More BMT series hydraulic motors availble:

Hot Selling China Hydraulic Motor Factory Wholesale BMTY-470 TG0470 TGK0470 Hydraulic Torqmotor 6 Bolt Mounting 8

More Parker replacement motor we have:

Road Pavers Spare Parts BMER Hydraulic Motor BMER Series 300ml/r 4-bolt Mounting 3

About HANJIU Technology:

Precision manufacturing, providing solutions for hydraulic systems. Grow together with customers, always provide innovation in products and services, always maintain our quality standards, and let our professional team meet your needs. Brand new wholeheartedly provide you with quality service. Our goal is to ensure that our customers receive fast, efficient and reliable service. Be a benchmark enterprise in the industry and lead the industry development.

HANJIU manufactures economical hydraulic motors, hydraulic directional valves and Orbitrol steering for all over the world.

We specialize in Eaaton Char-lynn replacement/alternative/compatible motors
We specialize in Saauer Danfooss replacement/alternative/compatible motors
We specialize in Parker replacement/alternative/compatible motors
We specialize in Brevini replacement/alternative/compatible Motors
We are good at M+S replacement/alternative/compatible motor
