Integral Brake Hydraulic Orbit Motor BMRWN-BK3B-310-T1-G-G Wheel Drive Motor

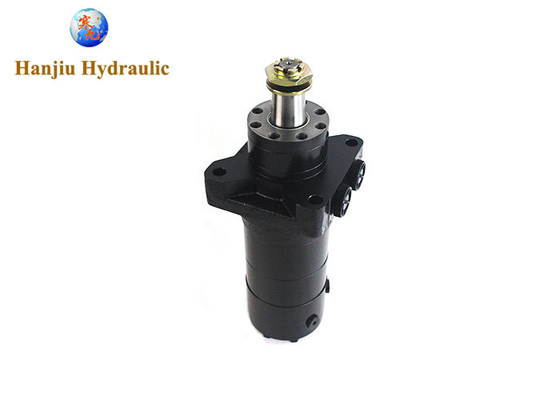

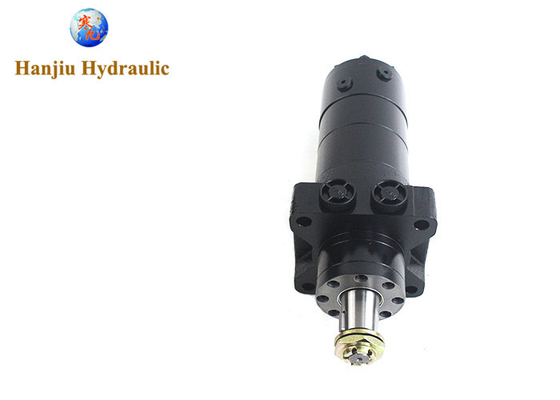

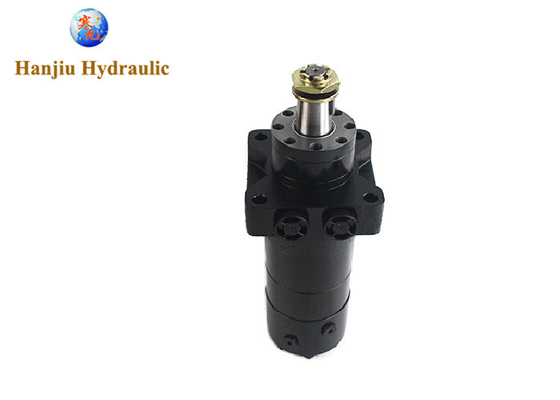

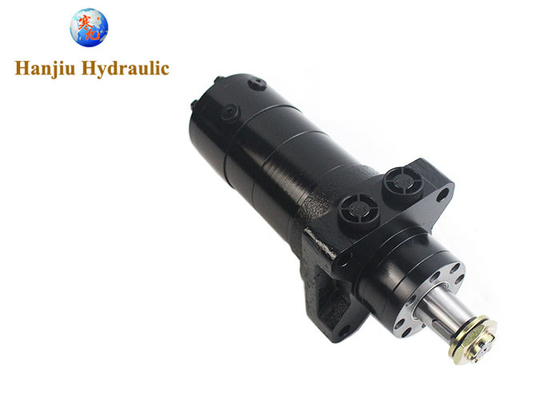

Large Image : Integral Brake Hydraulic Orbit Motor BMRWN-BK3B-310-T1-G-G Wheel Drive Motor

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE
Model Number:	bmrwn310

Payment & Shipping Terms:

Minimum Order Quantity:	20 Pieces
Price:	Negotiable
Packaging Details:	1 pc/ inner carton, 3 pcs/ outer carton, 27x40x14cm, transport with wooden pallet, 1500 pcs/ 20GP, 3000 pcs/ 40GP
Delivery Time:	25-30 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, Payple
Supply Ability:	300000 pieces per year

Contact Now

Detailed Product Description

Type:	Hydraulic Oil Motor	Material:	Cast Iron
Model No.:	Bmrwn-bk3-310	Displacement:	315CC
Speed:	341 RPM - 372 RPM	Flow:	55 Lpm -60 Lpm
Pressure:	14mpa-17.5mpa	Output:	11.3-15.2kw
Highlight:	wheel drive Hydraulic Orbit Motor , BMRWN-BK3B-310-T1-G-G Hydraulic Orbit Motor , Integral Brake Hydraulic Orbit Motor

Integral Brake Hydraulic Orbit Motor BMRWN-BK3B-310-T1-G-G wheel drive motor

Specifications:

BMRWN-BK3B-310-T1-G-G
displacement = 311cc
wheel flange
tapered SHAFT
G1/2 Manifold Mount, 4-M8, G1/4 port threads and drain ports
brake release port G1/4

Specifications:

Main Specifications:

Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:

Type		BMR Bk3 36	BMR Bk3 50	BMR Bk01 80	BMR Bk3 100	BMR Bk01 125	BMR Bk3 160	BMR Bk3 200	BMR Bk3 250	BMR Bk3 315	BMR Bk3 375
Geometric displacement (cm3 /rev.)		36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4
Max. speed (rpm)	cont.	1085	960	750	600	475	378	310	240	190	155
Max. speed (rpm)	int.	1220	1150	940	750	600	475	385	300	240	190
Max. torque (N·m)	cont.	72	100	195	240	300	360	360	390	390	365
	int.	83	126	220	280	340	430	440	490	535	495
	peak	105	165	270	320	370	460	560	640	650	680
Max. output (kW)	cont.	8.5	9.5	12.5	13	12.5	12.5	10	7	6	5
Max. output (kW)	int.	9.8	11.2	15	15	14.5	14	13	9.5	9	8
Max. pressure drop (MPa)	cont.	14	14	17.5	17.5	17.5	16.5	13	11	9	7
	int.	16.5	17.5	20	20	20	20	17.5	15	13	10
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	20	17.5	15
Max. flow (L/min)	cont.	40	50	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	45	60	75	75	75	75	75	75	75	75
Weight (kg)		6.5	6.7	6.9	7	7.3	7.6	8	8.5	9	9.5

Integral Brake Hydraulic Orbit Motor BMRWN-BK3B-310-T1-G-G Wheel Drive Motor 0

APPLICATION
Conveyors
Feeding mechanism of robots and manipulators
Metal working machines
Textile machines
Food industries
Agriculture machines
Mining machinery etc.
