Product Details:
Payment & Shipping Terms:
|
| Item: | Disc Valve Hydraulic Motor | Material: | Cast Iron |
|---|---|---|---|
| PN: | OMS315 EMD | Manufacturer: | Hanjiu |
| Warranty: | 12 Months | Origin: | China |
| Highlight: | 32mm Hydraulic Motor,G1/2 port threads Hydraulic Motor,speed sensor Hydraulic Motor |
||

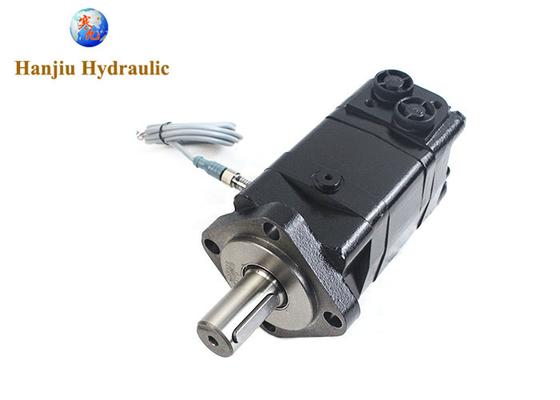

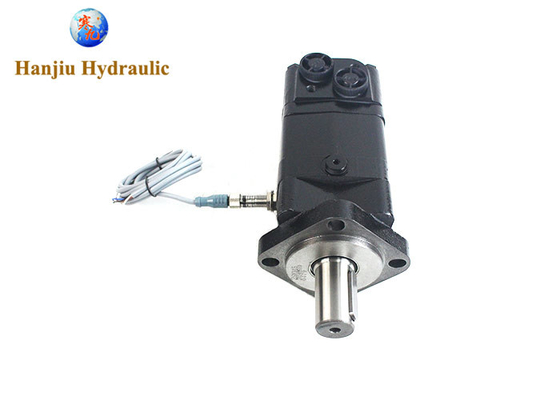

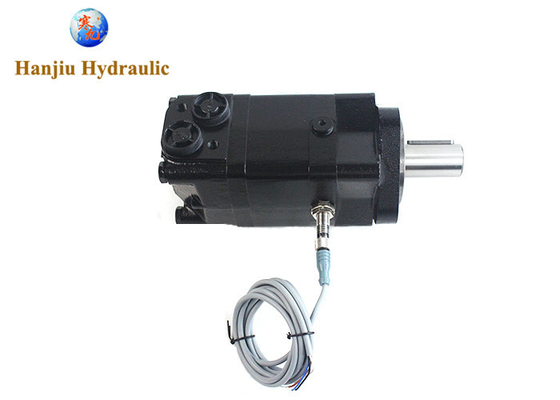

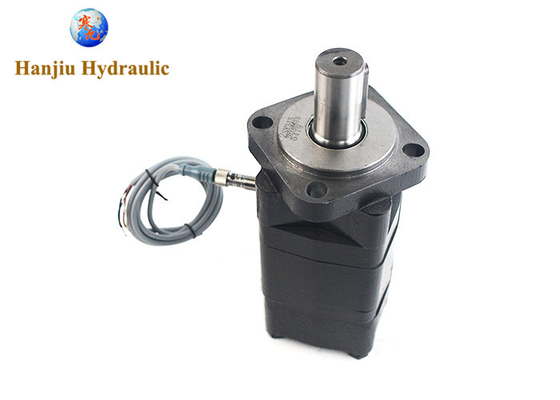

Disc Valve Hydraulic Motor key Shaft 32mm G1/2 port threads with speed sensor OMS315 MS315 BMSY315
Quick detail:
| Output volume (cc/rev): | 315cc |
| Shaft: | 32mm straight key |
| Connection: | 7⁄8 - 14 UNF |
| Drain | 7⁄16 - 20 UNF |
| Plug connection: | 2 mm |
Condition: NEW with original packaging
Material number: 11105168/HANJIU BMSY
Modelcode: None
Motorseries: O-Series
Basic Motor: OMS EMD/BMSY-SD
Displacement: 315CC
Mounting Flange: Standard mounting
Mounting Thread Dimension: None
Shaft Style: Cylindrical
Shaft Size: 32MM
Shaft Key: 5/16 x 5/16 x 1 1/4 inch (SAE J744)
Port Size: Side port
Port Dimension: G1/2
Drain Port Style: Standard
Drain port Dimension: G1/4
Brake Release Port: None
Brake Release Port Dimension: None
Dust Seal: Standard
Shaft Seal: NBR - Standard
Seal-Kit: High pressure seal kits
Front bearing: Tapered roller bearing
Rear bearing: Tapered roller bearing
Gear wheel set: Standard
Check valve: Yes
Packaging: Single pack
| Product
NO |
Displacement (CCM) |
Mounting
Flange |
Shaft (MM) |
Port
Size |
Drain
Port |
Shaft
end |
Mounting holes |
Oil
Port |
Parallel
key (MM) |
| BMSY/
OMS |
80/100/125/
160/200/ 315/400 |
82.5 | 32 |
G1/2 OR 7/8 - 14 UNF |
G1/4 OR 7/16 - 20 UNF |
M8 | 2 | B | 10 |
Orbital motors are versatile and can be found in various applications, including
Construction Equipment They are commonly used in excavators, loaders, graders, and other construction machinery to power functions like
Driving wheels (for locomotion)
Rotating attachments (like drill heads or trenchers)
Tilting buckets or blades
Agricultural Machinery Orbital motors are used in tractors, combines, and other agricultural equipment to power
Augers and drills for planting or soil sampling
Conveyors for moving crops or materials
Hay mowers and other implements
Industrial Automation Orbital motors are employed in various industrial machines for tasks like
Conveyor belt drives in assembly lines
Material handling equipment
Operating robotic arms or turntables
Advantages of Orbital Motors
High Torque Output They can deliver high torque at low speeds, making them suitable for demanding applications.
Compact Design Their compact size allows for easy integration into space-constrained machinery.
Smooth Operation Orbital motors provide smooth and efficient rotary motion.
Variable Speed Control The ability to precisely control speed and direction of the shaft rotation makes them ideal for various applications.
If you're interested in learning more about specific applications of orbital motors or their technical details, feel free to HANJIU ask!
