Product Details:
Payment & Shipping Terms:
|
| Features: | High Pressure Oil Seal | Product Name: | Hydraulic Geroler Motor |
|---|---|---|---|
| Material: | Cast Iron | Model Number: | BMPH-82-H2-K-B4 |
| Displacement: | 80CC | Shaft: | 1 Inch Key Shaft |
| Highlight: | Manifold ports hydraulic gear motor,2 bolt mounting hydraulic gear motor,101-1042-009 Hydraulic Gear Motor |
||

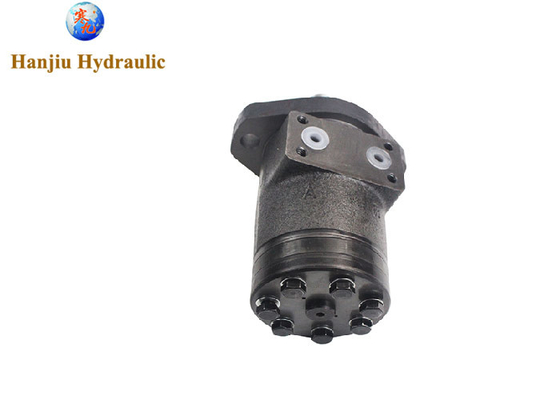

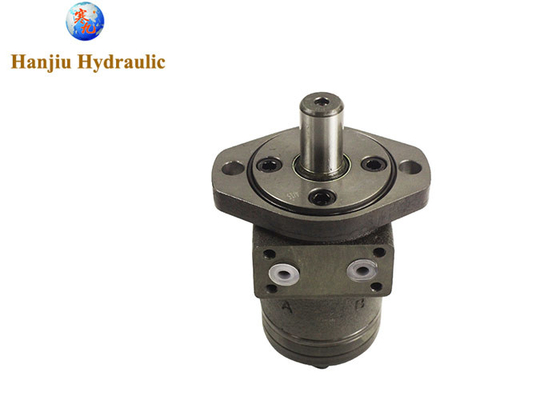

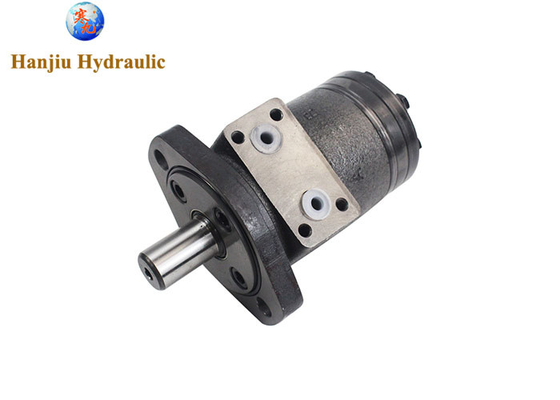

hydraulic gear motor charlynn 101-1042-009 2 bolt mounting,1 inch key shaft with Manifold ports
► Product details
model type:BMPH-82-H2-K-B4
Competibal type:101-1042-009,1011042009
displacement:80cc
flange:2 bolts rhomb flange, φ106.4mm,pilot φ82.5x8
shaft: φ25.4mm,woodruff key shaft
port threads:manifold o-ring ports
► Specification
| Type | BMPH 36 |
BMPH 50 |
BMPH 80 |
BMPH 100 |
BMPH 125 |
BMPH 160 |
BMPH 200 |
BMPH 250 |
BMPH 315 |
BMPH 400 |
BMPH 500 |
|
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 77.7 | 96.2 | 120.2 | 157.2 | 194.5 | 240.3 | 314.5 | 389.5 | 486.5 | |
| Max. speed (rpm) | cont. | 1500 | 1150 | 770 | 615 | 490 | 383 | 310 | 250 | 192 | 155 | 120 |
| int. | 1650 | 1450 | 960 | 770 | 615 | 475 | 385 | 310 | 240 | 190 | 150 | |
| Max. torque (N·m) | cont. | 55 | 100 | 146 | 182 | 236 | 302 | 360 | 380 | 375 | 360 | 385 |
| int. | 76 | 128 | 186 | 227 | 290 | 370 | 440 | 460 | 555 | 525 | 560 | |
| peak | 96 | 148 | 218 | 264 | 360 | 434 | 540 | 550 | 650 | 680 | 680 | |
| Max. output (kW) | cont. | 8 | 10 | 10 | 11 | 10 | 10 | 10 | 8.5 | 7 | 6 | 5 |
| int. | 11.5 | 12 | 12 | 13 | 12 | 12 | 12 | 10.5 | 8.5 | 7 | 6 | |
| Max. pressure drop (MPa) | cont. | 12.5 | 14 | 14 | 14 | 14 | 14 | 14 | 11 | 9 | 7 | 6 |
| int. | 16.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 14 | 10.5 | 9 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 18 | 16 | 14 | 12 | |
| Max. flow (L/min) | cont. | 55 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 5.6 | 5.6 | 5.7 | 5.9 | 6 | 6.2 | 6.4 | 7 | 6.9 | 7.4 | 8 | |
Benefits:
• High efficiency
• Powerful compact
package
• Design flexibility
• Extended leak-free performance
Applications:
• Agricultural augers,
harvesters, seeders
• Car wash brushes
• Food processing
• Railroad maintenance
equipment
• Machine tools
• Conveyors
• Industrial sweepers and
floor polishers
• Saw mill works
• Turf equipment
• Concrete and asphalt
equipment
• Skid steer attachments
| displacement | Shaft | H series motor code | ||
| 36cc | 1 in. Straight w/Woodruff key |
101-1700-009 | 101-1704-009 | 101-1708-009 |
| 46cc | 101-1033-009 | 101 -1025-009 | 101-1041-009 | |
| 59cc | 101-1701-009 | 101-1705-009 | 101-1709-009 | |
| 74cc | 101-1034-009 | 101-1026-009 | 101-1042-009 | |
| 97cc | 101-1035-009 | 101-1027-009 | 101-1043-009 | |
| 120cc | 101-1702-009 | 101-1706-009 | 101-1710-009 | |
| 146cc | 101-1703-009 | 101-1707-009 | 101-1711-009 | |
| 159cc | 101 -1036-009 | 101-1028-009 | 101-1044-009 | |
| 185cc | 101-1037-009 | 101-1029-009 | 101-1045-009 | |
| 231cc | 101-1038-009 | 101-1030-009 | 101-1046-009 | |
| 293cc | 101-1039-009 | 101-1031-009 | 101-1047-009 | |
| 370cc | 101 -1040-009 | 101-1032-009 | 101-1048-009 | |
