| Product: | LSHT Hydraulic Motor | Model No.: | BMSY-315-E4-F-S |
|---|---|---|---|
| Displacement: | 315cc | Flange: | 4 Bolts Standard Type |
| Shaft: | 31.75mm 14T | Port: | 7/8-14 O-ring |
| Rotation: | Standard | Material: | Cast Iron |
| Highlight: | SAE PORTS lsht hydraulic motor,18.97 IN³/REV lsht hydraulic motor,1.25” SPLINED lsht hydraulic motor |
||

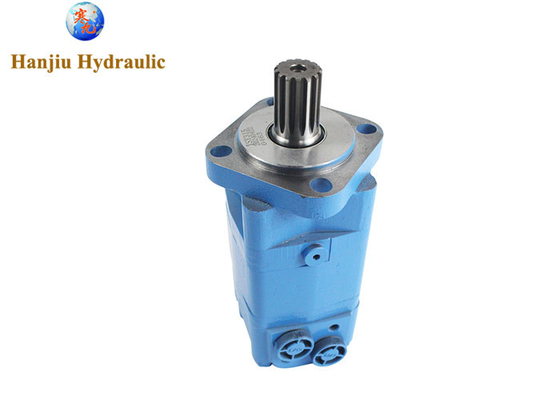

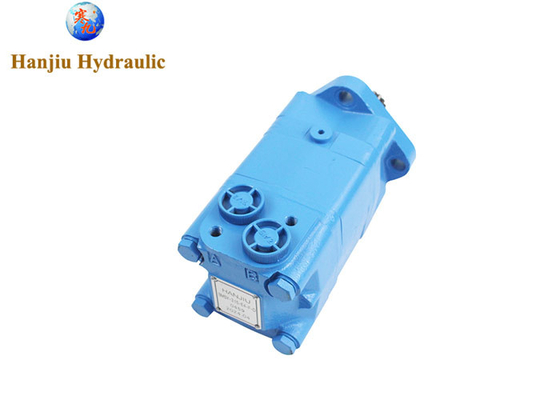

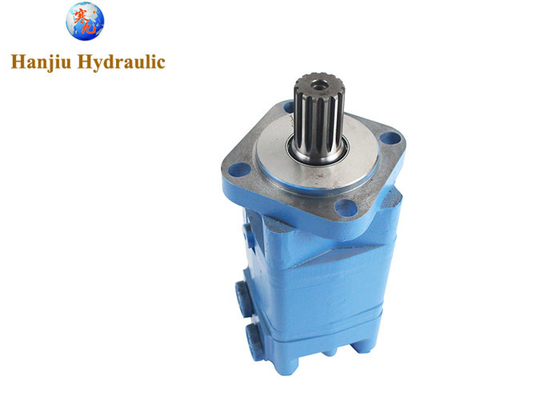

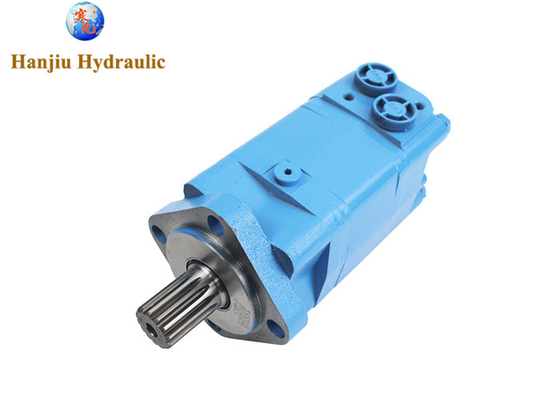

LSHT HYDRAULIC MOTOR - 18.97 IN³/REV - SAE "A" 4-BOLT - 1.25" SPLINED - SAE PORTS - BMSY-315-E4-F-S
Quick review:
| Model No. | BMSY-315-E4-F-S |
| Geometric displacement | 315 cm³ |
| Max. speed continuous. | 240 rpm |
| Max. speed intermittent. | 280 rpm |
| Max. torque continuous. | 880 Nm |
| Max. torque intermittent | 1000 Nm |
| Max. pressure continuous | 200 bar |
| Max. pressure intermittent. | 240 bar |
| Max. pressure peak | 260 bar |
Specification:
| Type | BMSY 80 |
BMSY 100 |
BMSY 125 |
BMSY 160 |
BMSY 200 |
BMSY 250 |
BMSY 315 |
BMSY 375 |
|
| Geometric displacement (cm3 /rev.) |
80.6 | 100.8 | 125 | 157.2 | 200 | 252 | 314.5 | 370 | |
| Max. speed (rpm) | cont. | 800 | 748 | 600 | 470 | 375 | 300 | 240 | 200 |
| int. | 988 | 900 | 720 | 560 | 450 | 360 | 280 | 240 | |
| Max. torque (N·m) | cont. | 190 | 240 | 310 | 316 | 400 | 450 | 560 | 536 |
| int. | 240 | 300 | 370 | 430 | 466 | 540 | 658 | 645 | |
| peak | 260 | 320 | 400 | 472 | 650 | 690 | 740 | 751 | |
| Max. output (kW) | cont. | 15.9 | 18.8 | 19.5 | 15.6 | 15.7 | 14.1 | 14.1 | 11.8 |
| int. | 20.1 | 23.5 | 23.2 | 21.2 | 18.3 | 17 | 18.9 | 17 | |
| Max. pressure drop (MPa) | cont. | 17.5 | 17.5 | 17.5 | 15 | 14 | 12.5 | 12 | 10 |
| int. | 21 | 21 | 21 | 21 | 16 | 16 | 14 | 12 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 18.5 | 14 | |
| Max. flow (L/min) | cont. | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 80 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |
| Max. inlet pressure (MPa) | cont. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| int. | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 12.6 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
More BMS series hydraulic motors available from us:
More hydraulic motors available:
Key Features of the Orbital Motor BMSY
1. High Efficiency The Orbital Motor BMSY is known for its exceptional efficiency, ensuring optimal power delivery and reduced energy consumption. This feature makes it an excellent choice for applications that require high power output while maintaining energy efficiency.
2. Compact Design The compact size of the Orbital Motor BMSY allows for easy integration into various hydraulic systems, making it suitable for applications with limited space. Its small footprint also contributes to weight reduction in machines, enabling enhanced mobility and flexibility.
3. Robust Construction Built with high-quality materials, the Orbital Motor BMSY exhibits remarkable durability and resistance to extreme operating conditions. Its rugged construction ensures a longer lifespan and reliable performance, even in challenging environments.
4. Smooth Operation The Orbital Motor BMSY offers smooth and precise operation, resulting in improved control and accuracy. This feature is particularly crucial in applications that require precise movements, such as construction equipment, agricultural machinery, and material handling systems.
Applications of the Orbital Motor BMSY
1. Construction Industry The Orbital Motor BMSY finds extensive use in construction machinery, including excavators, loaders, and cranes. Its high power output, compact design, and smooth operation make it an ideal choice for these applications, enhancing productivity and efficiency on construction sites.
2. Agricultural Sector In the agricultural sector, the Orbital Motor BMSY is widely employed in machinery like harvesters, tractors, and sprayers. Its ability to provide precise control and efficient power transmission contributes to increased productivity and reduced operational costs in farming operations.
3. Material Handling Forklifts, conveyor belts, and other material handling equipment benefit from the Orbital Motor BMSY due to its compact size, high efficiency, and smooth operation. These features enable precise and reliable handling of goods, streamlining warehouse and logistics operations.
4. Marine and Offshore Applications The Orbital Motor BMSY is also utilized in marine and offshore industries, powering various equipment such as winches, cranes, and propulsion systems. Its robust construction and resistance to harsh marine environments make it a reliable choice for these demanding applications.
Conclusion
The Orbital Motor BMSY has revolutionized hydraulic systems with its exceptional features and performance. Its high efficiency, compact design, robust construction, and smooth operation make it a sought-after component in various industries. From construction and agriculture to material handling and marine applications, the Orbital Motor BMSY continues to drive efficiency, productivity, and reliability in hydraulic systems worldwide.
HANJIU Technology’s Orbital Motor is internationally renowned
