Product Details:
Payment & Shipping Terms:
|
| Features: | High Pressure Oil Seal | Product Name: | Hydraulic Geroler Motor |
|---|---|---|---|
| Material: | Cast Iron | Model Number: | BMPH-125-H2-S-B4 |
| Displacement: | 125CC | Shaft: | SAE 6B SHAFT |
| Highlight: | 2 bolt mounting hydraulic geroler motor,O-Ring Ports hydraulic geroler motor,Manifold hydraulic geroler motor |
||

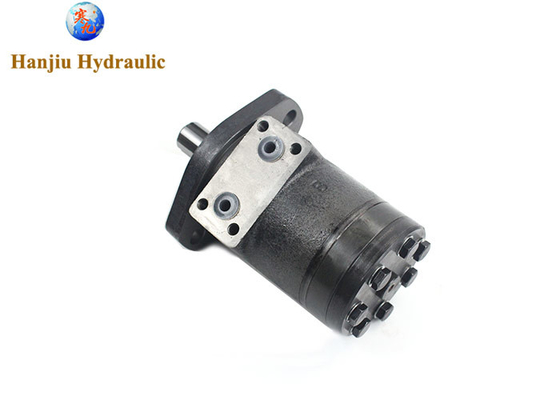

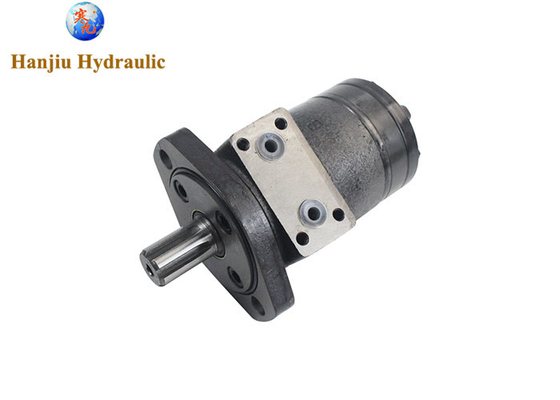

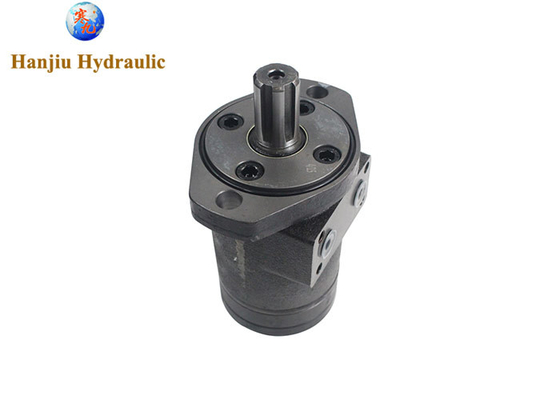

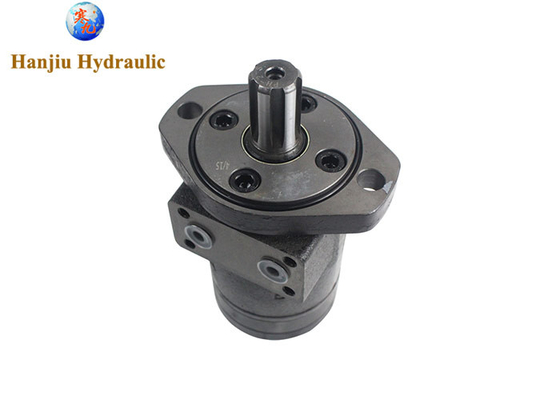

hydraulic geroler motor charlynn 101-1731-009 2 bolt mounting Manifold, O-Ring Ports
► Product details
model type:BMPH-125-H2-S-B4
Competibal type:101-1731-009,1011731009
displacement:125cc
flange:2 bolts rhomb flange, φ106.4mm,pilot φ82.5x8
shaft: φ25.4mm SAE 6B spline shaft
port threads:manifold o-ring ports
► Specification
| Type | BMPH 36 |
BMPH 50 |
BMPH 80 |
BMPH 100 |
BMPH 125 |
BMPH 160 |
BMPH 200 |
BMPH 250 |
BMPH 315 |
BMPH 400 |
BMPH 500 |
|
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 77.7 | 96.2 | 120.2 | 157.2 | 194.5 | 240.3 | 314.5 | 389.5 | 486.5 | |
| Max. speed (rpm) | cont. | 1500 | 1150 | 770 | 615 | 490 | 383 | 310 | 250 | 192 | 155 | 120 |
| int. | 1650 | 1450 | 960 | 770 | 615 | 475 | 385 | 310 | 240 | 190 | 150 | |
| Max. torque (N·m) | cont. | 55 | 100 | 146 | 182 | 236 | 302 | 360 | 380 | 375 | 360 | 385 |
| int. | 76 | 128 | 186 | 227 | 290 | 370 | 440 | 460 | 555 | 525 | 560 | |
| peak | 96 | 148 | 218 | 264 | 360 | 434 | 540 | 550 | 650 | 680 | 680 | |
| Max. output (kW) | cont. | 8 | 10 | 10 | 11 | 10 | 10 | 10 | 8.5 | 7 | 6 | 5 |
| int. | 11.5 | 12 | 12 | 13 | 12 | 12 | 12 | 10.5 | 8.5 | 7 | 6 | |
| Max. pressure drop (MPa) | cont. | 12.5 | 14 | 14 | 14 | 14 | 14 | 14 | 11 | 9 | 7 | 6 |
| int. | 16.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 14 | 10.5 | 9 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 18 | 16 | 14 | 12 | |
| Max. flow (L/min) | cont. | 55 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 5.6 | 5.6 | 5.7 | 5.9 | 6 | 6.2 | 6.4 | 7 | 6.9 | 7.4 | 8 | |
Applications
Agricultural augers, Harvesters, Seeders, Industrial sweepers and floor polishers
Features
Compact yet powerful
Extended bearing life
Increased shaft seal
