Product Details:
Payment & Shipping Terms:
|
| Type: | Low Speed High Torque Motor | Material: | Cast Iron |
|---|---|---|---|
| Displacement: | 200ml/r | Flange: | 2 Bolt SAE A Flange |
| Port Size: | Manifold Ports | Drain Line: | 7/16-20UNF |
| Speed: | 246 - 365 Rpm | Torque: | 765 - 885 Nm |
| Highlight: | 104-5026-006 Hydraulic Geroler Motor,2 Bolt Hydraulic Geroler Motor,11.89cu In/rev Hydraulic Geroler Motor |
||

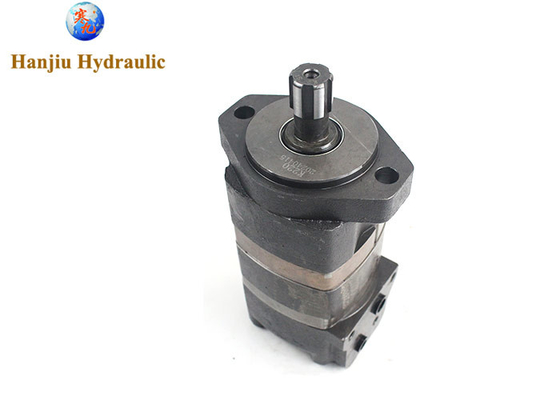

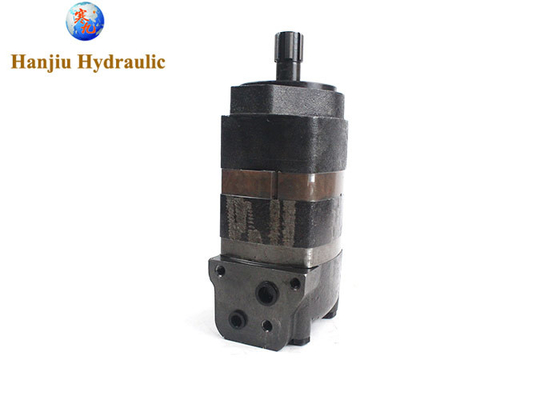

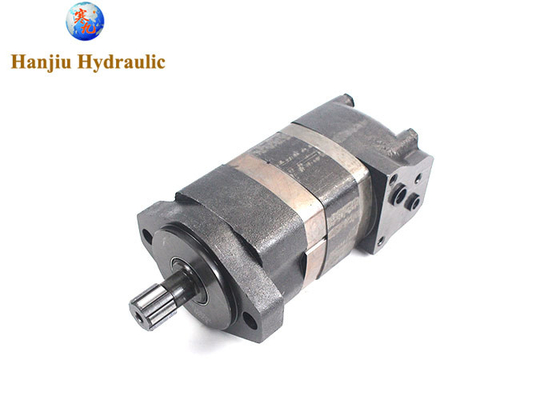

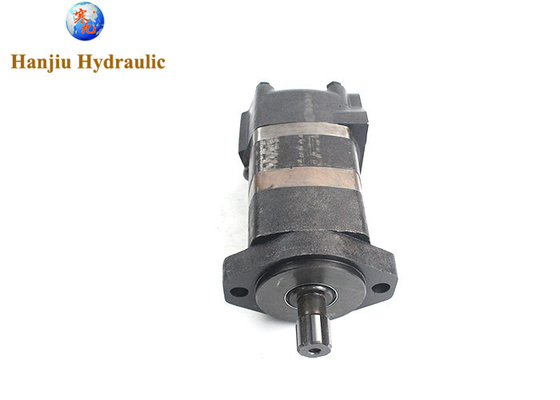

104-5026-006 Hydraulic Geroler Motor 11.89cu In/rev 2 Bolt SAE A Flange SAE 6B Shaft Flange rotated 90 degree
Quick review:
Model No.: BMK2-200-E2-S1-MU= 104-5026+-006
| displacement | 200ml/r |
| speed | 385 - 577 rpm |
| torque | 540 - 665 nm |
| mounting |
2 Bolt SAE A Flange
|
| shaft | SAE 6B 25.4mm s |
Main specifiction:
| Main Specifications: | |||||||||||
| Type | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | |
| 65 | 80 | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 475 | ||
| Geometric displacement (cm3 /rev.) |
65 | 80 | 100.9 | 129.8 | 156.8 | 193.4 | 242.5 | 304.3 | 390.8 | 485 | |
| Max. speed (rpm) | cont. | 835 | 800 | 742 | 576 | 477 | 385 | 308 | 246 | 191 | 153 |
| int. | 990 | 980 | 924 | 720 | 713 | 577 | 462 | 365 | 287 | 230 | |
| Max. torque (N·m) | cont. | 185 | 235 | 295 | 385 | 455 | 540 | 660 | 765 | 775 | 845 |
| int. | 245 | 345 | 445 | 560 | 570 | 665 | 820 | 885 | 925 | 930 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 21 | 21 | 21 | 20.5 | 20.5 | 20.5 | 21 | 15.5 | 12 |
| int. | 27.5 | 31 | 31 | 31 | 26 | 26 | 26 | 24 | 17 | 14 | |
| peak | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 20.5 | 17 | |
| Max. flow (L/min) | cont. | 55 | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 65 | 80 | 95 | 95 | 115 | 115 | 115 | 115 | 115 | 115 | |
| Weight (kg) | 9.2 | 9.4 | 9.7 | 10 | 10.2 | 10.5 | 11 | 11.5 | 12 | 12.4 | |
| * Continuous pressure :Max. value of operating motor continuously. | |||||||||||
| * Intermittent pressure :Max. value of operating motor in 6 seconds per minute. | |||||||||||
| * Peak pressure:Max. value of operating motor in 0.6 second per minute. | |||||||||||
FLANGE ROTATED 90 DEGREES
More BMK2 motor, BMK2 - Orbital Motor (Displacement 65 – 500 CC) available:
Low speed high torque motor, hydraulic geroler motor BMK2 series motor is a reliable and efficient hydraulic motor that offers numerous benefits to industries. Its high efficiency, robust construction, compact size, and wide speed range make it a preferred choice for many applications. With its ability to increase productivity, save costs, and provide reliable performance, Motor BMK2 proves to be an excellent investment for businesses seeking optimal hydraulic solutions.
HANJIU hydraulic motor expert, rich specifications, rapid manufacturing, reasonable price, perfect service, looking forward to your consultation
