Product Details:
Payment & Shipping Terms:
|
| Type: | Hydraulic Drive Motor | Material: | Cast Iron |
|---|---|---|---|
| Application: | Scissors Lift, Platform | Torque: | 905N.M-1035N.M |
| Output: | 17.5kw-20.0kw | Pressure: | 24mpa-27.6mpa |
| Highlight: | Scissor lift Hydraulic Wheel Drive Motor,OEM Part Hydraulic Wheel Drive Motor,SJ-194615 Hydraulic Wheel Drive Motor |
||

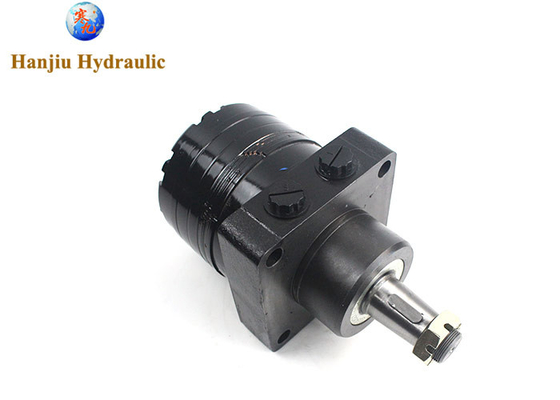

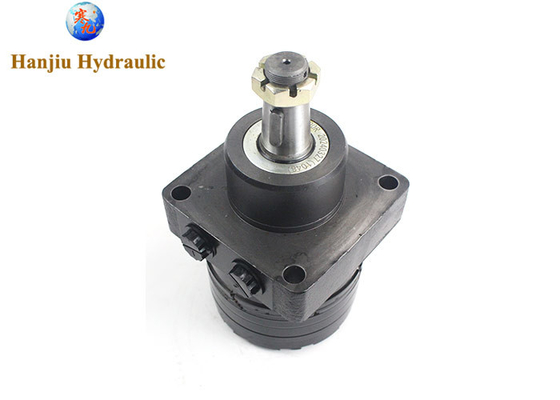

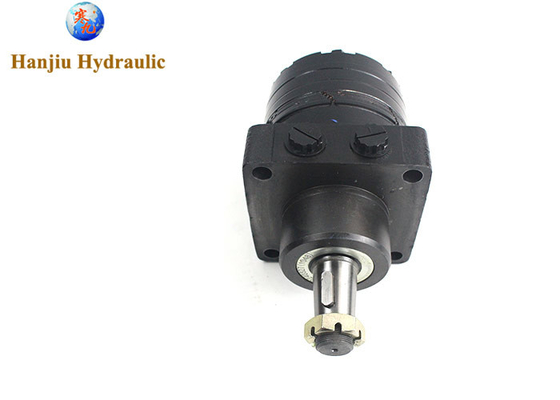

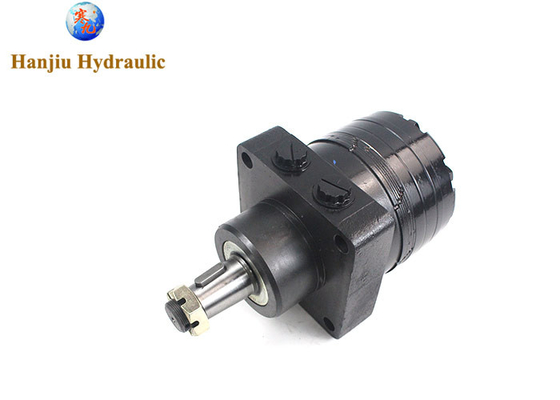

Hydraulic Wheel Drive Motor To Fit Skyjack Platform/Scissor lift OEM Part SJ-194615
Hanjiu Hydraulic motors is suitable for GENIE ,JLG,SKYJACK,HAULOTTE....Scissor lift parts--hydraulic drive motors,OEM quality, fast leading time, same specification
product details:
flange:wheel mounting flange
shaft:tapered shaft
ports:US edition/BSP ports
displacement:200/230/300/375/450/540cc.....
Application:
SJIII 3220 SN 60003131-60004188
SJIII 3226 SN 27010423-27017550
SJIII 4632 SN 70010916-70017595
SJIII 4626 SN 70010916-70017595
SJIII 3226 SN 27017551-27999999
SJIII 3220 SN 60004189-60999999
SJIII 3220 SN 60002259-60003131
SJIII 3226 SN 27006432-27010422
SJIII 4626 SN 70004720-70007138
SJIII 4632 SN 70004720-70007138
| GENIE | SKYJACK | JLG |
| GT96417 | 103129 |
3160264 |
| GT104781 | 456576 | 3160208 |
| GT104781 | 110701 | 3160207 |
| GT55193 | 3160269 | |
| GT96388 | 3060229 | |
| GT40840 |
if you need a hydraulic drive motor for Genie/SKYJACK machines, but dont know the details. Pls look for a part number The motor itself might have a part number that can help identify the manufacturer and specific model.
Consult the user manual or parts catalog for your equipment. It should specify the model and function of this hydraullic motor.
Contact a hydraulics specialist HANJIU . They can provide detailed information based on the specific model and manufacturer.
