Product Details:
Payment & Shipping Terms:
|
| Type: | Hydraulic Heavy Disc Motor | Material: | Cast Iron |
|---|---|---|---|
| Max.torque(N.m): | Cont.1480N.m/int.1890N.m | Max.speed(rpm): | Cont. 240rpm/int. 360rpm |
| Max Pressure Drop: | Cont.17.5Mpa/int.22.5Mpa | Max Flow: | Cont.150l/min/int.225l/min |
| Highlight: | Φ16 Eaton 6K Motor 612-0096,40mm Eaton 6K Motor 612-0096,Eaton 6K Motor 612-0096 |
||

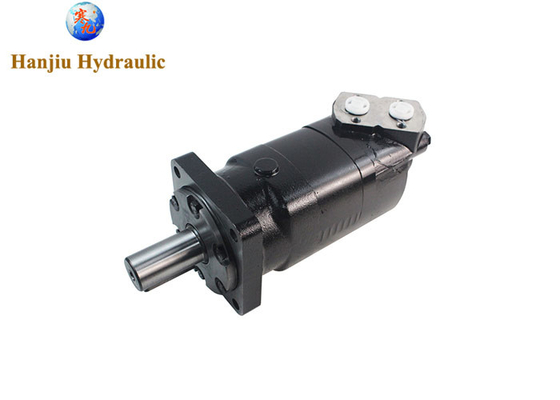

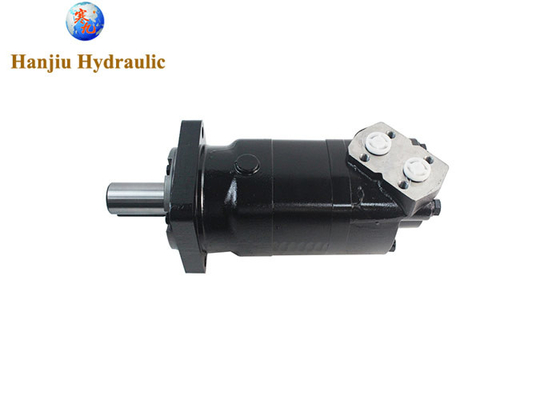

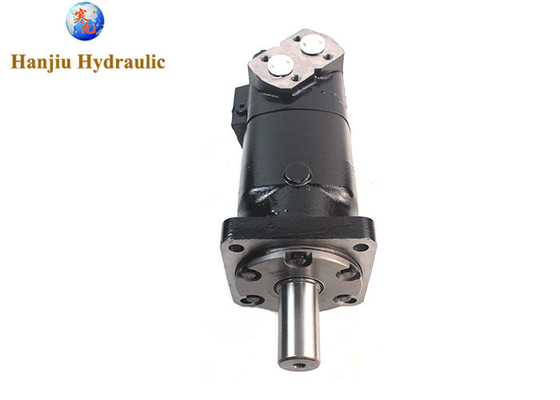

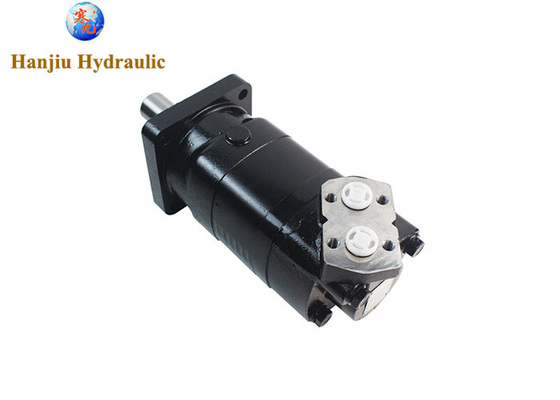

Eaton 6K Motor 612-0096, Low speed high torque heavy motor, 40mm key shaft, Φ16 Manifold Mount ports
Product details:
612-0096==BMK6-630
displacement:625cc
shaft :ShaftΦ40,parallel key12×8×63
ports:Φ16Manifold Mount4×M12,M14×1.5
Main Specification
| Type |
|
BMK6 200 |
BMK6 250 |
BMK6 315 |
BMK6 400 |
BMK6 500 |
BMK6 630 |
BMK6 800 |
BMK6 1000 |
|
| Geometric displacement (cm3 /rev.) |
195.6 | 246.1 | 311.6 | 391.3 | 490.8 | 623 | 802.4 | 981.6 | ||
| Main speed(rpm) |
cont. |
765 |
610 | 480 | 382 | 304 | 240 | 186 | 152 | |
| int. | 865 | 830 | 690 | 570 | 455 | 360 | 280 | 230 | ||
| Max torque N.M |
cont. |
565 | 710 | 920 | 1160 | 1445 | 1480 | 1580 | 1675 | |
| int. | 840 | 1080 | 1325 | 1625 | 1880 | 1890 | 1880 | 1860 | ||
| Max pressure drop (Mpa) | cont. | 20 | 20 | 20 | 20 | 20 | 17.5 | 14 | 14 | |
| int. | 30 | 30 | 30 | 30 | 27.5 | 22.5 | 15.5 | 14 | ||
| Weight (kg) | 26.3 | 26.8 | 27.3 | 28 | 28.8 | 29.6 | 30.5 | 32 | ||
OTHER TYPES:
| Displacement | 195 | 245 | 310 | 390 | 490 | 625 | 800 | 985 |
| code | 112-1064 | 112-1065 | 112-1066 | 112-1067 | 112-1068 | 112-1107 | 612-0188 | 112-1069 |
| 112-1094 | 112-1095 | 112-1096 | 112-1097 | 112-1098 | 612-0029 | 612-0208 | 112-1099 | |
| 612-0091 | 612-0092 | 612-0093 | 612-0094 | 612-0095 | 612-0096 | 612-0097 | 612-0098 | |
| 612-0061 | 612-0062 | 612-0063 | 612-0064 | 612-0065 | 612-0066 | 612-0067 | 612-0068 | |
| 612-0151 | 612-0152 | 612-0153 | 612-0154 | 612-0155 | 612-0156 | 612-0157 | 612-0158 |
