Product Details:
Payment & Shipping Terms:
|
| Product Name: | Hydraulic Orbit Motors | Displacement: | 500cc |
|---|---|---|---|
| Applications: | Agricultural Machine, Transportation, Construction Equipment, Metallurgical, Marine, Etc. | Warranty: | 12months |
| MOQ: | 1PC | Material: | Cast Iron |
| Highlight: | G1/2 Hydraulic orbit motor bmr500-2-e-d,OEM Hydraulic Orbit Motor,BMR500-2-E-D Hydraulic Orbit Motor |
||

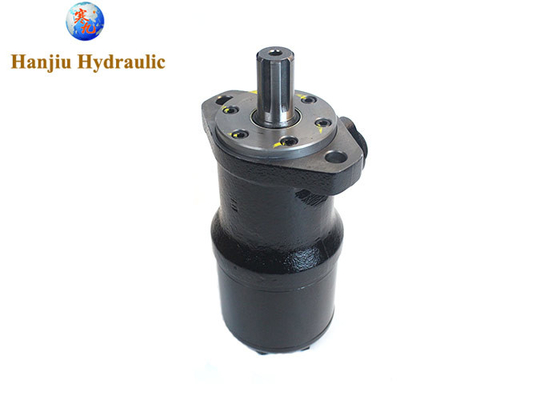

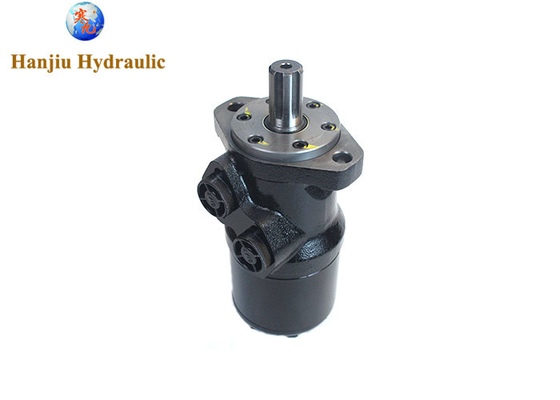

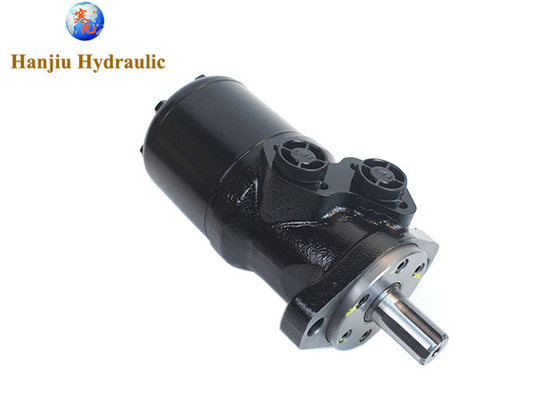

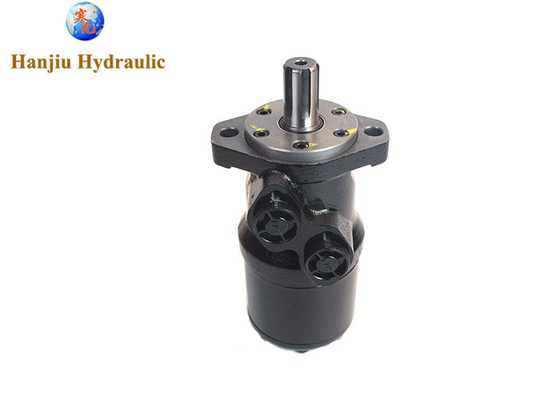

Hydraulic orbit motor BMR500-2-E-D,1 inch spline 6B shaft, BSPP G1/2 side ports with OEM quality
The goods details:
type code :BMR
displacement :500cc
flange:2-Ø13.5Rhomb-flange,pilot Ø82.5×8
shaft:Shaft Ø25.4,splined tooth SAE 6B
port threads:G1/2 Manifold Mount 4-M8, G1/4
Main Specifications:
Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:
| Type | BMR BMRS 36 |
BMR BMRS 50 |
BMR BMRS 80 |
BMR BMRS 100 |
BMR BMRS 125 |
BMR BMRS 160 |
BMR BMRS 200 |
BMR BMRS 250 |
BMR BMRS 315 |
BMR BMRS 375 |
|
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 | |
| Max. speed (rpm) | cont. | 1085 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
| int. | 1220 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 | |
| Max. torque (N·m) | cont. | 72 | 100 | 195 | 240 | 300 | 360 | 360 | 390 | 390 | 365 |
| int. | 83 | 126 | 220 | 280 | 340 | 430 | 440 | 490 | 535 | 495 | |
| peak | 105 | 165 | 270 | 320 | 370 | 460 | 560 | 640 | 650 | 680 | |
| Max. output (kW) | cont. | 8.5 | 9.5 | 12.5 | 13 | 12.5 | 12.5 | 10 | 7 | 6 | 5 |
| int. | 9.8 | 11.2 | 15 | 15 | 14.5 | 14 | 13 | 9.5 | 9 | 8 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 17.5 | 17.5 | 17.5 | 16.5 | 13 | 11 | 9 | 7 |
| int. | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 15 | 13 | 10 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 17.5 | 15 | |
| Max. flow (L/min) | cont. | 40 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 45 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8 | 8.5 | 9 | 9.5 |
|
We are very glad to be your hydrauic products partner,try us once, you will not regret * Continuous pressure:Max.value of operating motor continuously.
* Intermittent pressure:Max.value of operating motor in 6 seconds per minute .
* Peak pressure:Max.value of operating motor in 0.6 second per minute.
Similar types
| Displacement | 50 | 80 | 100 | 125 | 160 | 200 | 250 | 315 | 375 |
| code | 151-0420 | 151-0421 | 151-0422 | 151-0423 | 151-0424 | 151-0425 | 151-0426 | 151-0427 | 151-0428 |
| 151-0720 | 151-0721 | 151-0722 | 151-0723 | 151-0724 | 151-0725 | 151-0726 | 151-0727 | 151-0728 | |
| 151-7250 | 151-7251 | 151-7252 | 151-7253 | 151-7254 | 151-7255 | 151-7256 | 151-7257 | 151-7258 |
MR50SH
MR80SH
MR100SH
MR125SH
MR160SH
MR200SH
MR250SH
MR315SH
MR400SH
Hydraulic motors have a wide range of applications, mainly used in injection molding machinery, ships, hoists, construction machinery, construction machinery, metallurgical machinery, petrochemical, port machinery and other fields. In these fields, hydraulic motors can drive the actions of various equipment, such as lifting, rotating, walking, etc., to meet the requirements of various complex working conditions.
In addition, hydraulic motors are also widely used in the field of automated production lines, such as injection molding machines, paper machines, extruders, etc., as well as in the field of concrete engineering, such as pump trucks, mixer trucks, etc. In the aerospace sector, hydraulic motors also play an important role, such as for aircraft landing gear, flight simulators, etc.
In addition, depending on the type of hydraulic motor and the application scenario, it may also contain other specific components, such as reducers, end caps, pressure reducing valves, etc. The end cover is divided into hydraulic and transmission end cover, the hydraulic end cover is encapsulated with various valves, and the transmission end cover is encapsulated with oil circuit and various transmission shafts. The pressure reducing valve is the main control element of the motor, which is used to control the output pressure of the hydraulic system.
When designing and using a hydraulic motor, a variety of factors need to be considered, such as working pressure, flow rate, working environment, etc., to ensure its proper operation and long service life. At the same time, regular maintenance and maintenance are also the key to ensure the long-term stable operation of the hydraulic motor.
