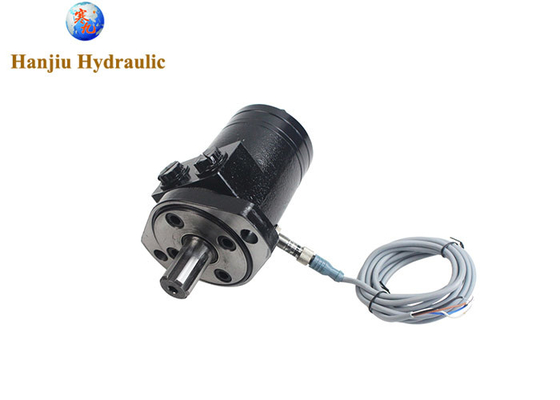

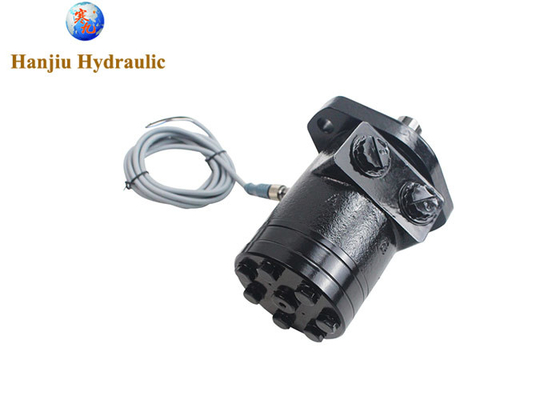

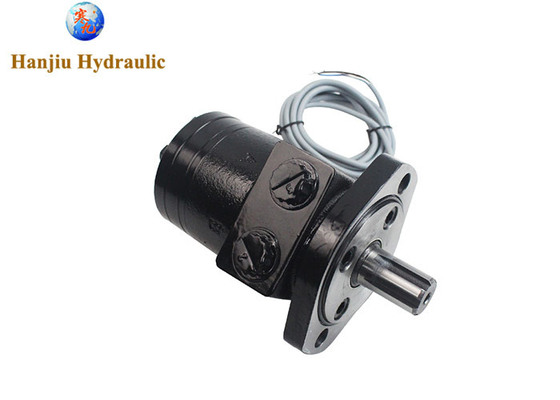

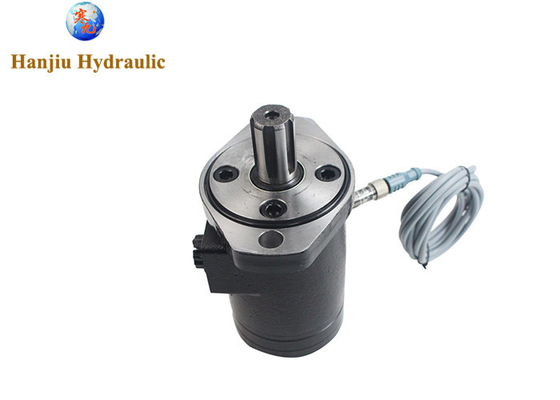

Hydraulic Motor With Speed Senor BMRS-100-H2-SS-S-SD With High Torque

Large Image : Hydraulic Motor With Speed Senor BMRS-100-H2-SS-S-SD With High Torque

Product Details:

Place of Origin:	China
Brand Name:	Hanjiu
Certification:	CE
Model Number:	BMRS-100-H2-SS-S-SD

Payment & Shipping Terms:

Minimum Order Quantity:	50 units
Price:	Negotiable
Packaging Details:	Carton packing , with a tray or wooden box if needed .
Delivery Time:	10-15 working days
Payment Terms:	T/T, Western Union,Paypal .
Supply Ability:	100,000 units / Year

Contact Now

Detailed Product Description

Product Name:	Hydraulic Gear Motors	Displacement:	100cc
Applications:	Agricultural Machine, Transportation, Construction Equipment, Metallurgical, Marine, Etc.	Warranty:	12months
Oil Temperature:	Normal-35℃-80℃	Material:	Cast Iron
Highlight:	BMRS-100-H2-SS-S-SD Hydraulic Motor , Senor Hydraulic Motor , high torque Hydraulic Motor

Hydraulic Motor With Speed Senor BMRS-100-H2-SS-S-SD with high torque

The goods details:
type code :BMRS
displacement :100cc
flange:2-3.5 Rhomb-flange , pilot Ø82.5×2.8
shaft:Shaft Ø25.4 , splined tooth SEA 6B
port threads:7/8-14 O-ring ,7/16-20UNF

Main Specifications:

Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:

Type		BMR BMRS 36	BMR BMRS 50	BMR BMRS 80	BMR BMRS 100	BMR BMRS 125	BMR BMRS 160	BMR BMRS 200	BMR BMRS 250	BMR BMRS 315	BMR BMRS 375
Geometric displacement (cm3 /rev.)		36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4
Max. speed (rpm)	cont.	1085	960	750	600	475	378	310	240	190	155
Max. speed (rpm)	int.	1220	1150	940	750	600	475	385	300	240	190
Max. torque (N·m)	cont.	72	100	195	240	300	360	360	390	390	365
	int.	83	126	220	280	340	430	440	490	535	495
	peak	105	165	270	320	370	460	560	640	650	680
Max. output (kW)	cont.	8.5	9.5	12.5	13	12.5	12.5	10	7	6	5
Max. output (kW)	int.	9.8	11.2	15	15	14.5	14	13	9.5	9	8
Max. pressure drop (MPa)	cont.	14	14	17.5	17.5	17.5	16.5	13	11	9	7
	int.	16.5	17.5	20	20	20	20	17.5	15	13	10
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	20	17.5	15
Max. flow (L/min)	cont.	40	50	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	45	60	75	75	75	75	75	75	75	75
Weight (kg)		6.5	6.7	6.9	7	7.3	7.6	8	8.5	9	9.5

Technical data for BMR with 31.75 and 32 shaft:

Type		BMR BMRS 36	BMR BMRS 50	BMR BMRS 80	BMR BMRS 100	BMR BMRS 125	BMR BMRS 160	BMR BMRS 200	BMR BMRS 250	BMR BMRS 315	BMR BMRS 375
Geometric displacement (cm3 /rev.)		36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4
Max. speed (rpm)	cont.	1250	960	750	600	475	378	310	240	190	155
Max. speed (rpm)	int.	1520	1150	940	750	600	475	385	300	240	190
Max. torque (N·m)	cont.	72	100	195	240	300	380	450	540	550	580
	int.	83	126	220	280	340	430	500	610	690	690
	peak	105	165	270	320	370	460	560	710	840	830
Max. output (kW)	cont.	8.5	9.5	12.5	13	12.5	12.5	11	10	9	7.5
Max. output (kW)	int.	9.8	11.2	15	15	14.5	14	13	12	10	9
Max. pressure drop (MPa)	cont.	14	14	17.5	17.5	17.5	17.5	17.5	17.5	13.5	11.5
	int.	16.5	17.5	20	20	20	20	20	20	17.5	15
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	22.5	21	17.5
Max. flow (L/min)	cont.	45	50	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	55	60	75	75	75	75	75	75	75	75
Weight (kg)		6.5	6.7	6.9	7	7.3	7.6	8	8.5	9	9.5

We are very glad to be your hydrauic products partner,try us once, you will not regret * Continuous pressure:Max.value of operating motor continuously.
* Intermittent pressure:Max.value of operating motor in 6 seconds per minute .
* Peak pressure:Max.value of operating motor in 0.6 second per minute.

Hydraulic Motor With Speed Senor BMRS-100-H2-SS-S-SD With High Torque 0

Applications :

• Agricultural augers,harvesters, seeders
• Car wash brushes
• Food processing
• Railroad maintenance equipment
• Machine tools
• Conveyors
• Industrial sweepers and floor polishers
• Saw mill works
• Turf equipment
• Concrete and asphalt equipment
• Skid steer attachments
• Many more

If you have an existing hydraulic system and you need torque, these hydraulic motors are ideal products. Models such as light series hydraulic motors , heavy series hydraulic motors are available.
