| Material: | Cast Iron | Warranty: | 12-18 Months |
|---|---|---|---|
| DC Optional: | 12V,24V | Flow: | 80L/MIN |
| Oil Port: | G1/2,G3/8,7/8-14UNF | Certificate: | ISO9001 |
| Highlight: | Z80 monoblock control valves,6 spools monoblock control valves,electric monoblock control valves |
||

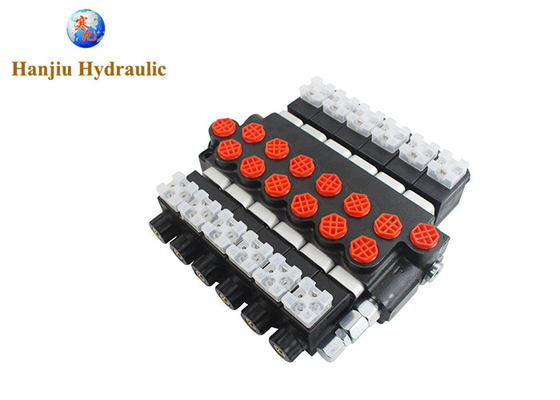

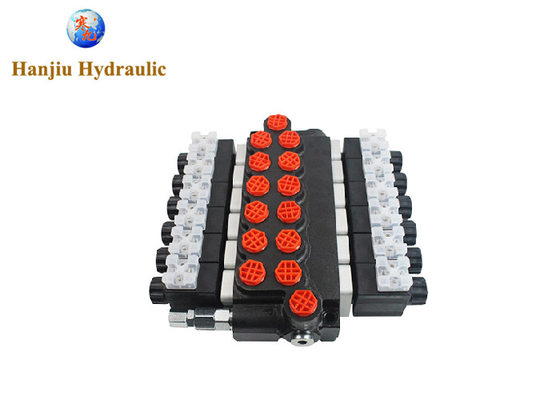

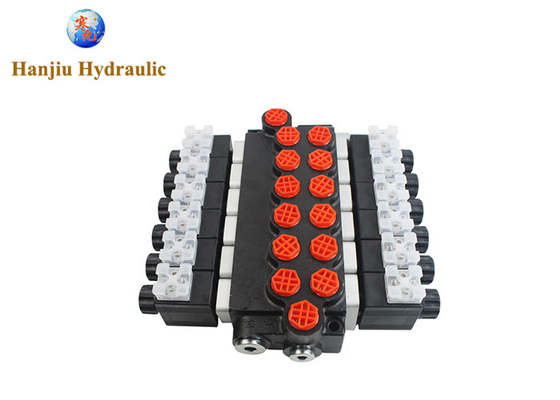

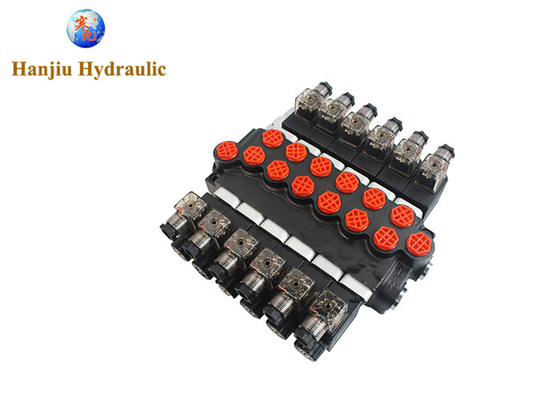

P80 hydraulic monoblock control valves with 6 spools, open center electric valve Z80 solenoid valve
Specifications:
| parameter | value |
| Number of Work Sections | from 1 to 7 |
| Max working pressure | 315 bar |
| Operating pressure | 210 bar |
| Rated flow | 50 l / min |
| Working temperature | from -30 ° С to + 50 ° С |
| Fluid viscosity | from 20 to 400 mm 2 / s |
| Fluid temperature | from -20 ° С to + 70 ° С |
| Filtration | Grade 9 NAS1638 |
| Supply Voltage / Power Consumption | 12VDC * / 36W and 24VDC * / 29W |
| Switching frequency max | 15,000 times per hour |
| Duty cycle | 100% |
| Monoblock Soleinoid Control Valves | |||||||||
| Code | Sections | Coils | Max. Flow | Port Sizes | Max. Pressure | Tank | |||
| NO. | VDC | (L/min.) | P | A | B | T | (Bar.) | Pressure (Bar.) | |
| 1Z80 A ES3 | 1 | 12V,24V | 80 | 1/2” – 1/2” – 1/2" – 3/4" | 250 | 50 | |||
| 02Z80 AA ES3 | 2 | 12V,24V | 80 | 250 | 50 | ||||
| 03Z80 AAA ES3 | 3 | 12V,24V | 80 | 250 | 50 | ||||
| 04Z80 AAAA ES3 | 4 | 12V,24V | 80 | 250 | 50 | ||||
| 05Z80 AAAAA ES3 | 5 | 12V,24V | 80 | 250 | 50 | ||||
| 06Z80 AAAAAA ES3 | 6 | 12V,24V | 80 | 250 | 50 | ||||
Port threads
| BSP Thread | Metric thread | US standard UNF thread | US standard NTP thread | ||||
| code | Thread size | code | Thread size | code | Thread size | code | Thread size |
| G04 | G1/4 | M16 | M16X1.5 | U10 | 5/8-12UNF | N06 | NPT3/8 |
| G06 | G3/8 | M18 | M18X1.5 | U12 | 3/4-16UNF | N08 | NPT1/2 |
| G08 | G1/2 | M20 | M20X1.5 | U14 | 7/8-14UNF | N12 | NPT3/4 |
| G12 | G3/4 | M22 | M22X1.5 | U16 | 1-12UNF | ||
Hydraulic valves play a very important role in the hydraulic system, and its main role is to control the direction, pressure and flow of oil in the hydraulic system. Let's take a look at the role of hydraulic valves:
1. Control direction: directional control valves, such as check valves and reversing valves, can determine the flow direction of oil in the system, so that hydraulic actuators (such as hydraulic cylinders or hydraulic motors) can move according to the predetermined action requirements.
2. Adjust the pressure: The pressure control valve, such as the relief valve, the pressure reducing valve, etc., can regulate and control the pressure in the hydraulic system, ensure that the system works within a safe and stable pressure range, and at the same time prevent the equipment from being damaged or working abnormally due to too high or too low pressure.
3. Adjust the flow rate: flow control valves, such as throttle valves, speed control valves, etc., can control the flow rate in the hydraulic system, so as to control the movement speed of the actuator.
Hydraulic valves allow hydraulic systems to achieve complex motion control, precise positioning, and stable operation. The performance and quality of hydraulic valves have a critical impact on the overall performance and stability of the hydraulic system. Therefore, it is necessary to choose the right hydraulic valve according to the actual situation.
