| Product: | Hydraulic Motor | Size: | 475 Ml/r |
|---|---|---|---|
| Flange: | Wheel Mount | Rotation: | CCW |
| Highlight: | Wheel Mount Hydraulic Motor,Mobile Vehicle Hydraulic Motor,China Manufacturer Hydraulic Motor |
||
Welcome!
Hydraulic Motor manufacturer from China specializes in high performance bidirectional hydraulic motors for mixing, sweeping, lifting, conveying and various applications
For example, engineering, construction, agriculture, forestry, etc.
Partners include OEM, hydraulic importers, hydraulic distributors
Please see product introduction below:

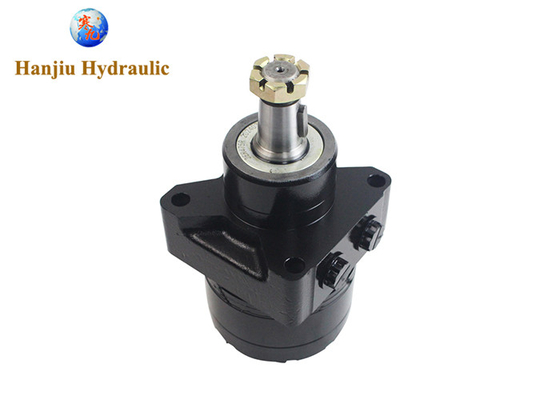

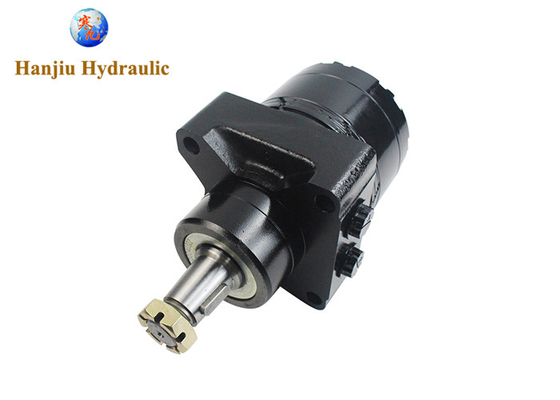

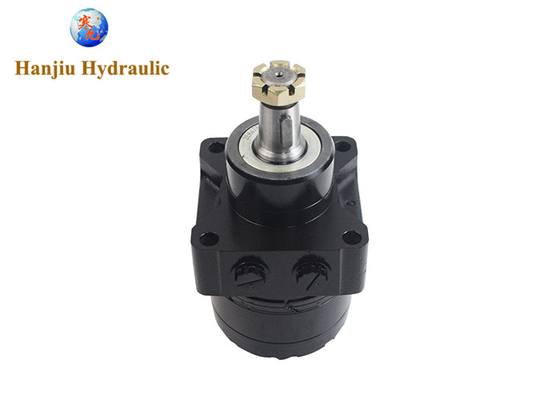

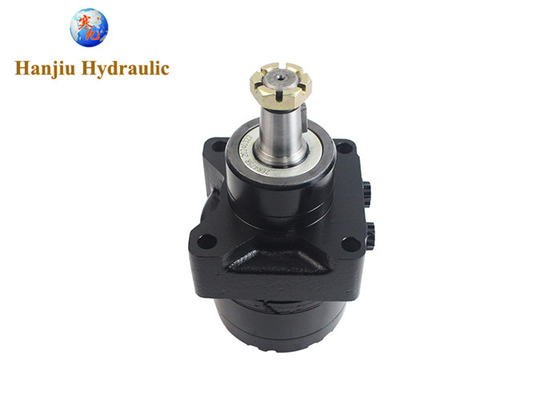

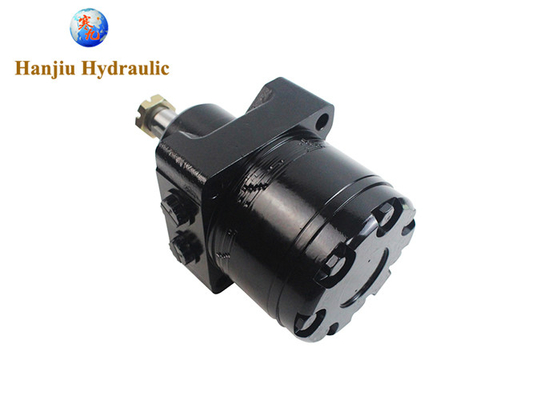

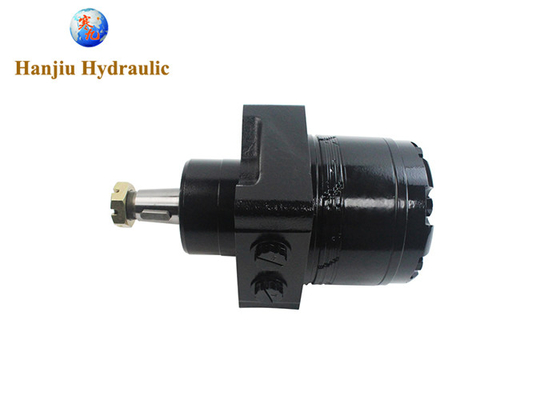

BMER 475CC Wheel Mount for travel systemf of Mobile Vehicle
Quick review:
BMER-2-475-TS-T4-R-B
| displacement | 475 ml/r |
| flange | 4-13.5 wheel mount |
| ports | 7/8-14 O-ring |
| output shaft | 31.75mm Tapper shft |
| rotation | CCW |
| paint | black |
Specification:
| Type | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | |
| 125 | 160 | 200 | 230 | 250 | 300 | 350 | 375 | 475 | 540 | 750 | ||
| Geometric displacement (cm3/rev.) | 118 | 156 | 196 | 228 | 257 | 296 | 345 | 371 | 462 | 540 | 745 | |
| Max. speed (rpm) | cont. | 360 | 375 | 330 | 290 | 290 | 250 | 220 | 200 | 160 | 140 | 100 |
| int. | 490 | 470 | 425 | 365 | 350 | 315 | 270 | 240 | 195 | 170 | 120 | |
| Max. torque (N•m) | cont. | 325 | 450 | 530 | 625 | 700 | 810 | 905 | 990 | 1085 | 980 | 1050 |
| int. | 380 | 525 | 600 | 710 | 790 | 930 | 1035 | 1140 | 1180 | 1240 | 1180 | |
| peak | 450 | 590 | 750 | 870 | 980 | 1120 | 1285 | 1360 | 1260 | 1380 | 1370 | |
| Max. output (kW) | cont. | 12.0 | 15.0 | 15.5 | 16.0 | 17.5 | 18.0 | 17.5 | 16.5 | 14.5 | 11.5 | 8.0 |
| int. | 14.0 | 17.5 | 18.0 | 19.0 | 20.0 | 21.0 | 20.0 | 19.0 | 16.5 | 15.0 | 10.0 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 17.5 | 14 | 10.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 19 | 17.5 | 12 | |
| peak | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 20.5 | 20.5 | 14 | |
| Max. flow (L/min) | cont. | 45 | 60 | 70 | 70 | 75 | 80 | 80 | 75 | 75 | 75 | 75 |
| int. | 60 | 75 | 85 | 85 | 90 | 95 | 95 | 90 | 90 | 90 | 90 | |
BMER series motor adapt the advanced Geroler gear set designed with high speeddistribution flow and high pressure,and have good stability in low speed , and can keep highvolume efficiency. The unit can be supplied the individual variant in operating multifunction inaccordance with requirement of applications.
Characteristic features:
* Advanced manufacturing devices for the Geroler gear set,which use low pressure ofstart-up, provide smooth and reliable operation and high efficiency.
*The output shaft adapts in needle roller bearings that permit high axial and radial forces.The Caase can offers capacities of high pressure and high torque in the wide of applications.
*Advanced design in high speed distribution flow, which can automatically compensate inoperating with high volume efficiency and long life , provide smooth and reliable operation.
*Lowest leakage rate, most accurate timing methods.Commutator rotates 6x faster thanshaft speed. lt make the distribution in a high precision reduces life-cycle cost,maintain highvolume efficiencies and can run very smoothly at low speed, gear box not required.
More BMER series motors available:
