Product Details:
Payment & Shipping Terms:
|
| Item: | OMS 315,MS315,BMSY315 | Model: | BMSY-315-E6-B-D |
|---|---|---|---|
| Fastening: | Magneto Mounting | Displacement: | 315 CM3/R |
| Shaft: | 32mm Key Shaft | Port: | G1/2 Ports |
| Highlight: | OMS-315 Hydraulic motor,BMSY-315-E6-B-D Hydraulic motor,Hydraulic motor LSHT |
||

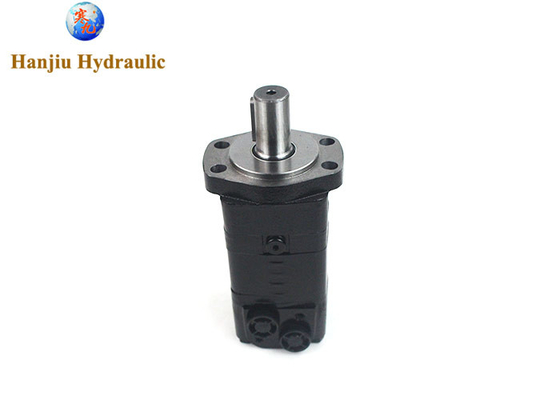

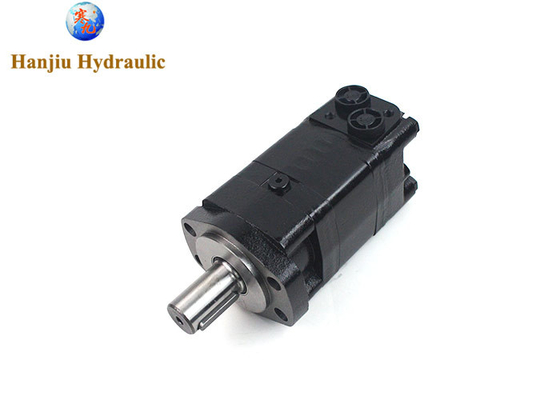

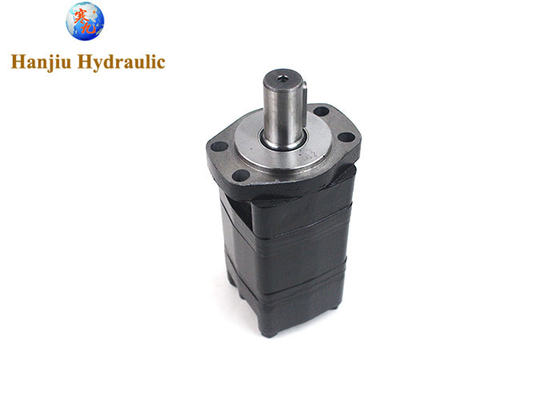

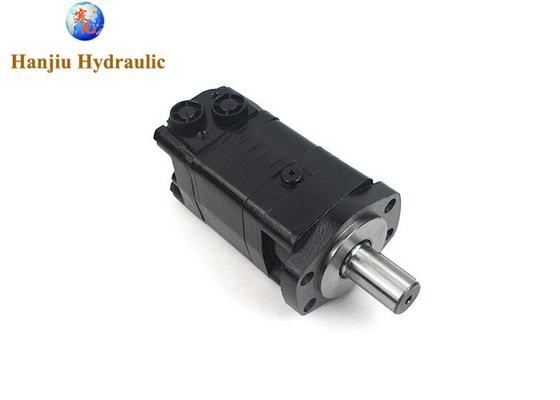

BMSY series motors are mediurn displacement, high torque motors.They adapt the advanced Geroler gear set design with disc distrbution flow, high power andlow weight.
Manufactured by HANJIU technology, the 5th largest hydraulic motor producer in the world. They have more than 20 years experience providing consistent andreliable torque motors for a huge variety of industrial and commercial applications.
Direct replacement for Eaton 2000 Series, Danfoss OMS,M+S MSY, White WS RE or DR and Parker TF or TG.
the details as below
hanjiu code :BMSY-315-E6-B-D
| DISPLACEMENT | 315CC |
|
SERIES
|
DANFOSS OMS Series,M+S-MS Series, HANJIU--BMSY SERIES |
| PORT LOCATION | Side Port, Staggered |
| SHAFT TYPE | 32MM STRAIGHT KEY |
| DRAIN | G1/4 |
| MAXIMUM SPEED @ CONTINUOUS FLOW | 191 rpm/287rpm |
| FLOW RATE | 75l/min |
| RPM [MAX] | 287rpm |
| DUTY | Standard-Duty |
| GEROTER/GEROLER OPTIONS | Standard |
| MOUNTING TYPE | 4-Ø13.5 Rhomb-flange Ø106.4, pilot Ø82.5×6.3 |
| PORT SIZE | G1/2 |
| MOTOR TYPE | Disc Valve |
