Product Details:
Payment & Shipping Terms:
|
| Product: | Torque Motor | Model No.: | BMER2-300-MD-G2-R |
|---|---|---|---|
| Size: | 300 Ml/r | Flange: | Magneto, 7/8-14 SAE |
| Speed: | 250 - 315 Ml/r | Torque: | 810 - 1120 Rpm |
| Pressure Drop: | 20.5 - 27.6 MPa | Max Flow: | 80 - 95 Lpm |
| Highlight: | TG0280MS030AAAA parker low speed high torque motors,BMER-300 torque hydraulic motor,SAE Ports torque hydraulic motor |
||

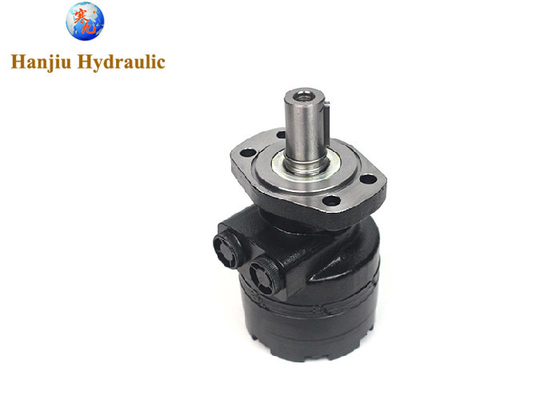

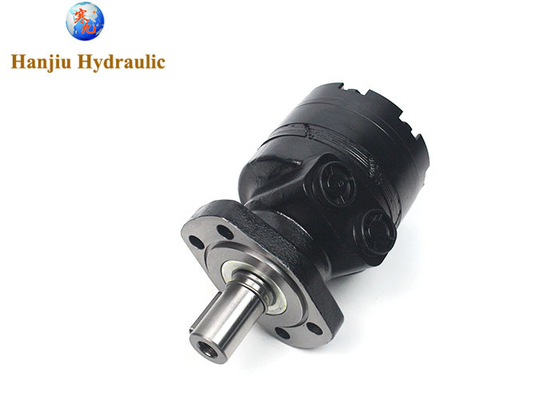

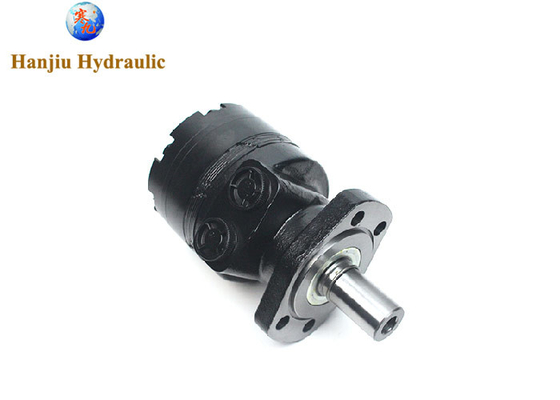

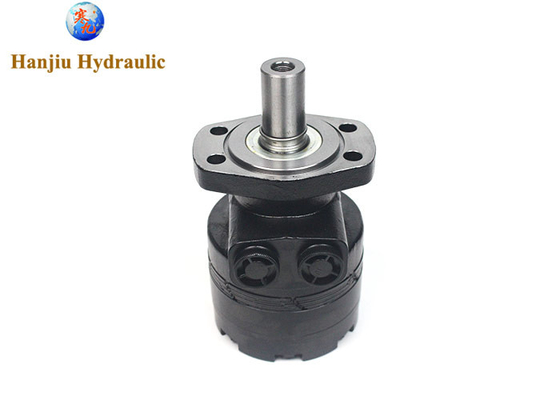

Parker TG0280MS030AAAA high torque motor BMER-300 31.75mm key shaft ,SAE ports
Quick review:
Product, Hydraulic Motor, orbit motor,LSHT Torqmotors
Model No., BMER2-300-MD-G2-R
Displacement: 300 ml/r
Flange:Magneto, 7/8-14 SAE
Shaft:1 1/4" Key shaft
Rotation, Counter clockwise
Speed, 250 - 315 ml/r
Torque, 810 - 1120 rpm
Pressure Drop, 20.5 - 27.6 MPa
Max flow, 80 - 95 Lpm
Specification:
| Type | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | |
| 125 | 160 | 200 | 230 | 250 | 300 | 350 | 375 | 475 | 540 | 750 | ||
| Geometric displacement (cm3/rev.) | 118 | 156 | 196 | 228 | 257 | 296 | 345 | 371 | 462 | 540 | 745 | |
| Max. speed (rpm) | cont. | 360 | 375 | 330 | 290 | 290 | 250 | 220 | 200 | 160 | 140 | 100 |
| int. | 490 | 470 | 425 | 365 | 350 | 315 | 270 | 240 | 195 | 170 | 120 | |
| Max. torque (N•m) | cont. | 325 | 450 | 530 | 625 | 700 | 810 | 905 | 990 | 1085 | 980 | 1050 |
| int. | 380 | 525 | 600 | 710 | 790 | 930 | 1035 | 1140 | 1180 | 1240 | 1180 | |
| peak | 450 | 590 | 750 | 870 | 980 | 1120 | 1285 | 1360 | 1260 | 1380 | 1370 | |
| Max. output (kW) | cont. | 12.0 | 15.0 | 15.5 | 16.0 | 17.5 | 18.0 | 17.5 | 16.5 | 14.5 | 11.5 | 8.0 |
| int. | 14.0 | 17.5 | 18.0 | 19.0 | 20.0 | 21.0 | 20.0 | 19.0 | 16.5 | 15.0 | 10.0 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 17.5 | 14 | 10.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 19 | 17.5 | 12 | |
| peak | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 20.5 | 20.5 | 14 | |
| Max. flow (L/min) | cont. | 45 | 60 | 70 | 70 | 75 | 80 | 80 | 75 | 75 | 75 | 75 |
| int. | 60 | 75 | 85 | 85 | 90 | 95 | 95 | 90 | 90 | 90 | 90 | |
More BMER series to match Parker series
More Parker replacement motor available:
Hydraulic motors play a crucial role in various industries, powering machinery and equipment using hydraulic fluid. These motors convert hydraulic energy into mechanical energy, allowing for the efficient operation of different applications. There are several types of hydraulic motors available, each with its unique features and benefits.
such as gear motor, vane motor, piston motors,Radial Piston Motors,Axial Piston Motors
In conclusion, hydraulic motors are essential components in various industries, enabling the conversion of hydraulic energy into mechanical energy. The choice of hydraulic motor depends on the specific application requirements, including torque, speed, efficiency, and control. Gear motors, vane motors, piston motors (including radial and axial variations) are some of the most commonly used types of hydraulic motors. Understanding the different types of hydraulic motors can help industries select the most suitable motor for their specific needs.
HANJIU hydraulic motor expert, rich specifications, rapid manufacturing, reasonable price, perfect service, looking forward to your consultation
