Product Details:
Payment & Shipping Terms:
|
| Product: | Hydraulic Motor | Model Number: | BME2-315-WD-T |
|---|---|---|---|
| Displacement: | 315 Ml/r | Flange: | Wheel Mount |
| Shaft: | Tapper | Brand: | Hanjiu |
| Highlight: | BME2 Geroler Orbital Motors,315ml/r Hydraulic Motor,Replace Parker TE TC TB Motors |
||
Welcome to the website of Hanjiu Technology
We focus on the design, development, manufacture and export of high-quality hydraulic products
You can get hydraulic motors suitable for any equipment here
We have various series, various sizes, various speeds and torques

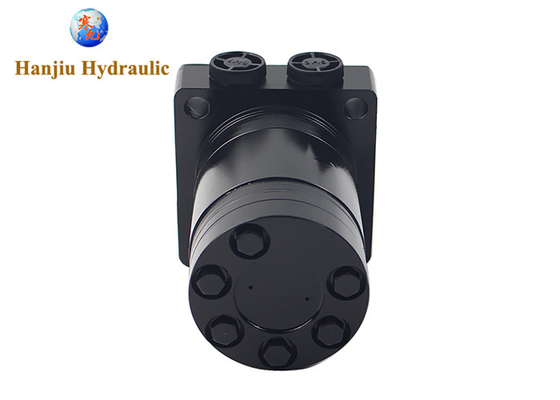

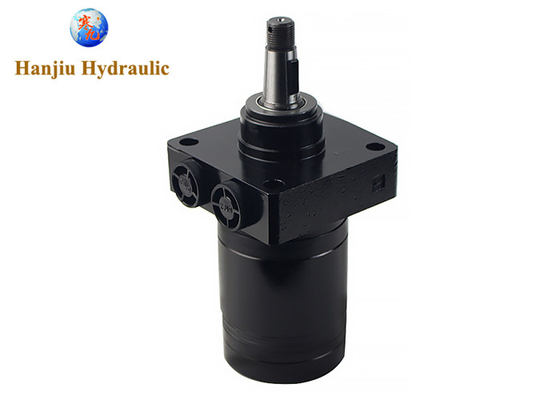

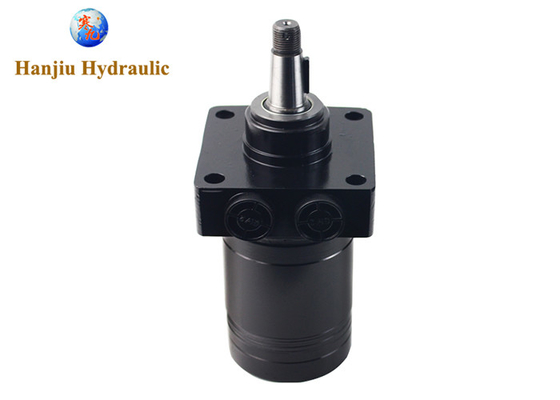

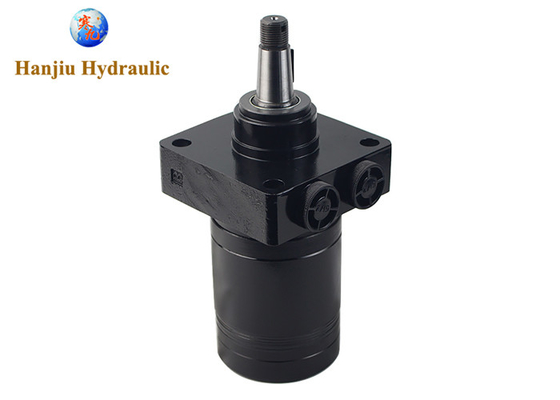

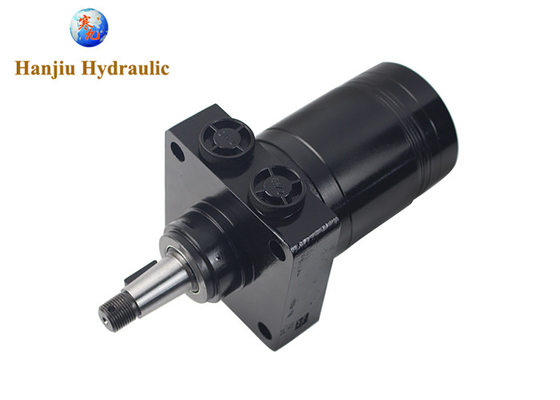

This series is the BME2 series hydraulic motor
Model: BME2-315-WD-T
Displacement: 315ml/r
Flange: 4-Ø13.5 Wheel -flange,Pilot Ø60.3×7 Port G1/2
Shaft: Cone-Shaft Ø25.4,Woodruff key Ø25.4×6.35
Rotation :Standard
Parameter range of BME2:
BME2. Geroler Orbital Motors.
Features. Displacement: 4.08 – 22.6 in³/rev;
Cont. Torque: 92.9 – 323.8 lbf.ft;
Continuous Speed: 152 – 667 rpm.
We provide hydraulic system solutions for hydraulic trailer system.
Here is it's technical details:
| Type | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | |
| 65 | 80 | 100 | 125 | 160 | 200 | 230 | 250 | 295 | 315 | 375 | ||
| Geometric displacement (cm3 /rev.) | 66.8 | 81.3 | 101.6 | 127 | 157.2 | 193.6 | 226 | 257 | 287.8 | 314.5 | 370 | |
| Max. speed (rpm) | cont. | 667 | 543 | 439 | 350 | 283 | 229 | 247 | 216 | 196 | 178 | 152 |
| int. | 842 | 689 | 553 | 441 | 355 | 289 | 328 | 287 | 254 | 235 | 199 | |
| Max. torque (N•m) | cont. | 126 | 157 | 191 | 245 | 307 | 382 | 378 | 381 | 393 | 448 | 439 |
| int. | 176 | 215 | 268 | 335 | 422 | 520 | 528 | 543 | 547 | 587 | 613 | |
| Max. output (kW) | cont. | 8.3 | 8.8 | 7.9 | 8.9 | 8.9 | 9 | 9.9 | 9.3 | 8.7 | 8 | 7.6 |
| int. | 13.9 | 14.4 | 13.5 | 14.1 | 15.6 | 15.7 | 17.9 | 16.5 | 15.6 | 14.3 | 14 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 14 | 14 | 14 | 14 | 12 | 11 | 10 | 10 | 9 |
| int. | 19 | 19 | 19 | 19 | 19 | 19 | 165 | 15.5 | 14.5 | 13.5 | 12.5 | |
| peak | 20 | 20 | 20 | 20 | 20 | 20 | 18 | 18 | 17 | 16 | 16 | |
| Max. flow (L/min) | cont. | 45 | 45 | 45 | 45 | 45 | 45 | 57 | 57 | 57 | 57 | 57 |
| int. | 57 | 57 | 57 | 57 | 57 | 57 | 75 | 75 | 75 | 75 | 75 | |
BME2 is a Parker TE, TB, TC replacement motor, it's interchangeable type, which is our specialty.
It has the same shape and mounting dimensions as the Parker motor, which perfectly matches the application of the Parker motor, and can be installed directly without any modification to the hydraulic system. The performance is the same as the Parker motor, the price is 3/5 or more cheaper than the Parker motor, and the delivery time is stable and fast. Models and specifications are abundant. Full line of high and low speed motors provide power ranging up to 613 N*m torque with speeds ranging from 152 rpm to 842 rpm. A complete range of sizes is offered in gear, gerotor operating configurations. Hanjiu hydraulic motors deliver excellent performance with high efficiency, true wear compensation and longer service life.
Hanjiu BME2 series Gerotor Motors include ligh duty motors to replace Parker Light Duty Motor TB Series, TJ Series, TC Series, TS Series, TE Series. Also have more other series Gerotor Motors include medium duty motors to replace Parker Medium Duty Motor TF Series, TG Series, TH Series. They are rugged Low Speed High Torque (LSHT) orbital motors featuring robust construction with continuous oil flow across splines for longer life, superior side load capacity, and smooth extra low speed operation. A high pressure shaft seal is standard. Dependability is based on high quality design and manufacturing.
