OMR MR BMR-500-2-A-D Hydraulic Motor 500ml/R 2 Bol Flange 25mm Shaft

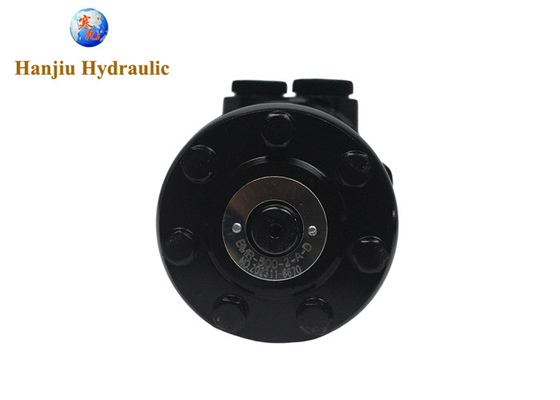

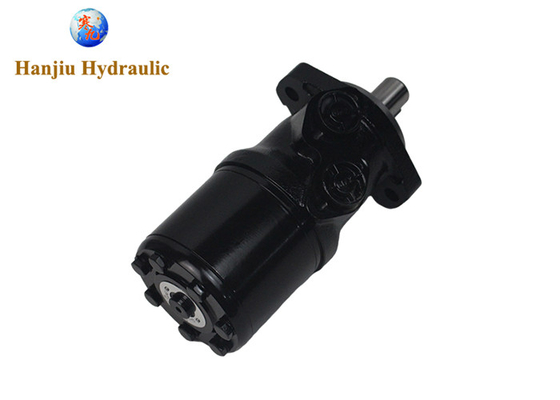

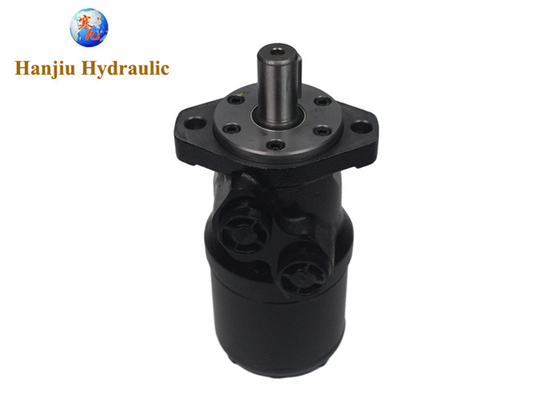

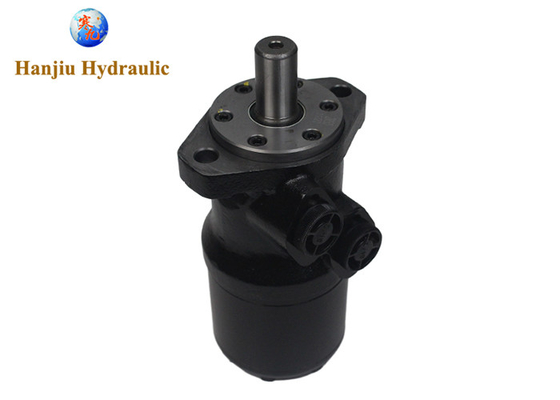

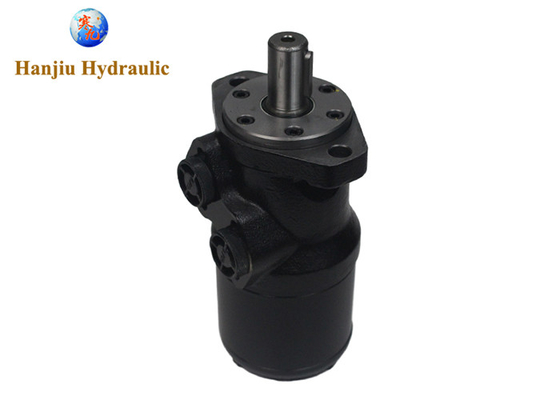

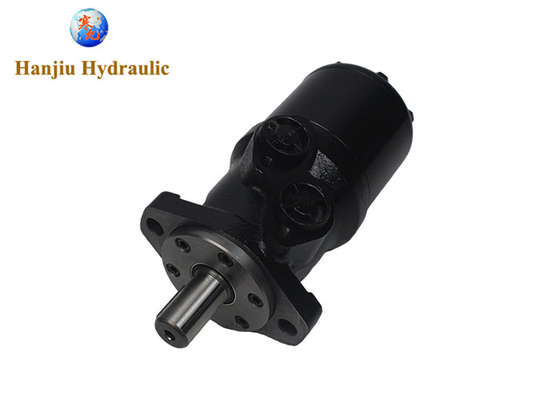

Large Image : OMR MR BMR-500-2-A-D Hydraulic Motor 500ml/R 2 Bol Flange 25mm Shaft

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE
Model Number:	BMR-500-2-A-D

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	50
Packaging Details:	Box, Pallet
Delivery Time:	55 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	10000 pieces per year

Contact Now

Detailed Product Description

Features:	Suit For OMP MP	Item:	Hydraulic Motor
OEM No.:	BMR-500-2-A-D	Manufacturer:	Hanjiu
Displacement:	500 Ml/r	Flange:	2 - Bolt
Shaft:	25mm	Port:	G 1/2
Rotation:	Standard	Paint:	Black
Highlight:	omr 500 hydraulic motor , 25mm shaft motor omr

OMR MR BMR-500-2-A-D Hydraulic Motor 500ml/r 2 bol flange 25mm shaft

Quick review:
Item, Hydraulic Motor
OEM No., BMR-500-2-A-D
Manufacturer, Hanjiu
Displacement, 500 ml/r
Flange, 2 - bolt
Shaft, 25mm
Port, G 1/2
Rotation, standard
Paint, Black
Features, Suit for OMP MP

Main Specifications:

Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:

Type		BMR BMRS 36	BMR BMRS 50	BMR BMRS 80	BMR BMRS 100	BMR BMRS 125	BMR BMRS 160	BMR BMRS 200	BMR BMRS 250	BMR BMRS 315	BMR BMRS 375
Geometric displacement (cm3 /rev.)		36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4
Max. speed (rpm)	cont.	1085	960	750	600	475	378	310	240	190	155
Max. speed (rpm)	int.	1220	1150	940	750	600	475	385	300	240	190
Max. torque (N·m)	cont.	72	100	195	240	300	360	360	390	390	365
	int.	83	126	220	280	340	430	440	490	535	495
	peak	105	165	270	320	370	460	560	640	650	680
Max. output (kW)	cont.	8.5	9.5	12.5	13	12.5	12.5	10	7	6	5
Max. output (kW)	int.	9.8	11.2	15	15	14.5	14	13	9.5	9	8
Max. pressure drop (MPa)	cont.	14	14	17.5	17.5	17.5	16.5	13	11	9	7
	int.	16.5	17.5	20	20	20	20	17.5	15	13	10
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	20	17.5	15
Max. flow (L/min)	cont.	40	50	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	45	60	75	75	75	75	75	75	75	75
Weight (kg)		6.5	6.7	6.9	7	7.3	7.6	8	8.5	9	9.5

Technical data for BMR with 31.75 and 32 shaft:

Type		BMR BMRS 36	BMR BMRS 50	BMR BMRS 80	BMR BMRS 100	BMR BMRS 125	BMR BMRS 160	BMR BMRS 200	BMR BMRS 250	BMR BMRS 315	BMR BMRS 375
Geometric displacement (cm3 /rev.)		36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4
Max. speed (rpm)	cont.	1250	960	750	600	475	378	310	240	190	155
Max. speed (rpm)	int.	1520	1150	940	750	600	475	385	300	240	190
Max. torque (N·m)	cont.	72	100	195	240	300	380	450	540	550	580
	int.	83	126	220	280	340	430	500	610	690	690
	peak	105	165	270	320	370	460	560	710	840	830
Max. output (kW)	cont.	8.5	9.5	12.5	13	12.5	12.5	11	10	9	7.5
Max. output (kW)	int.	9.8	11.2	15	15	14.5	14	13	12	10	9
Max. pressure drop (MPa)	cont.	14	14	17.5	17.5	17.5	17.5	17.5	17.5	13.5	11.5
	int.	16.5	17.5	20	20	20	20	20	20	17.5	15
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	22.5	21	17.5
Max. flow (L/min)	cont.	45	50	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	55	60	75	75	75	75	75	75	75	75
Weight (kg)		6.5	6.7	6.9	7	7.3	7.6	8	8.5	9	9.5

* Continuous pressure:Max.value of operating motor continuously.
* Intermittent pressure:Max.value of operating motor in 6 seconds per minute .
* Peak pressure:Max.value of operating motor in 0.6 second per minute.

A variety of mounting flange types, a variety of output shaft types, and a variety of displacements can meet all your installation and use requirements. For BMM, BMP, BMR, BMH, BMS, BMSY, BMT, BMV, BMK2, BMK4, BMK6, BMK10 hydraulic motors, call our sales team

on +86-311-68123061 or WhatsApp 008613831101542.
