| Product: | Hydraulic Motor | Model No.: | BMER2-300-MD-G2-R |
|---|---|---|---|
| Size: | 300 Ml/r | Flange: | 4 Bolt Mount |
| Shaft: | Key Shaft | Rotation: | Counter Clockwise |
| Speed: | 250 - 315 Ml/r | Torque: | 810 - 1120 Rpm |
| Pressure Drop: | 20.5 - 27.6 MPa | Max Flow: | 80 - 95 Lpm |
| Highlight: | BMER torqmotor hydraulic motor,4 Bolt torqmotor hydraulic motor,TG torque motor parker |
||

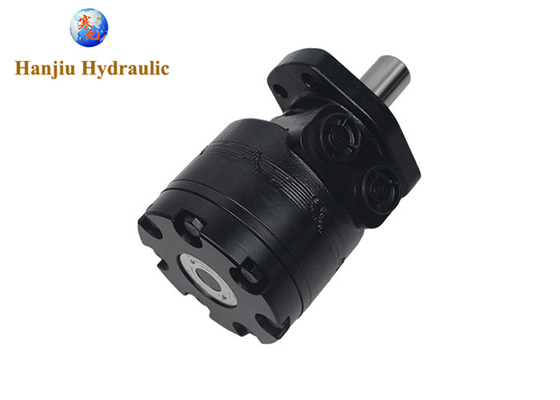

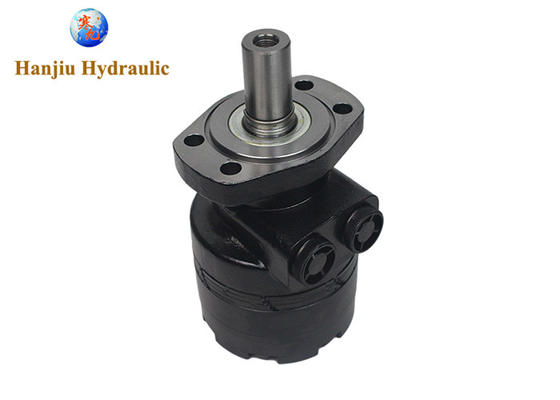

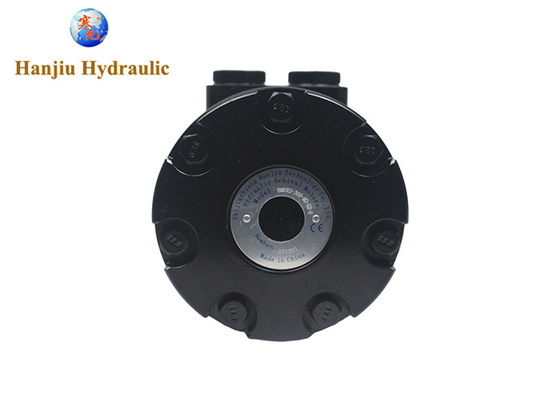

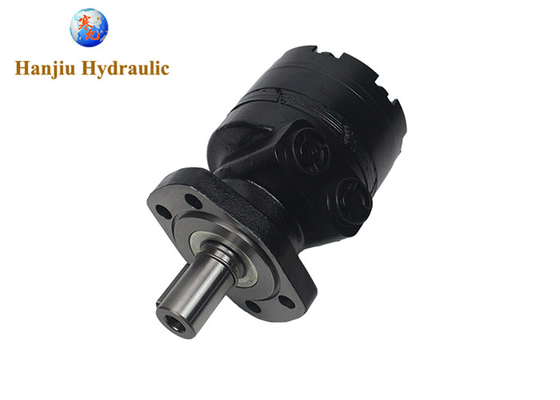

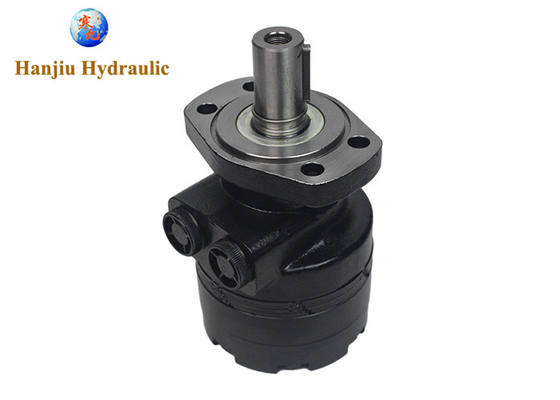

Parker TG TF BMER series Torque Motor 4 Bolt flange replacement 300ml/r
Quick review:
Product, Hydraulic Motor
Model No., BMER2-300-MD-G2-R
Size, 300 ml/r
Flange, 4 bolt mount
Shaft, Key shaft
Rotation, Counter clockwise
Speed, 250 - 315 ml/r
Torque, 810 - 1120 rpm
Pressure Drop, 20.5 - 27.6 MPa
Max flow, 80 - 95 Lpm
Specification:
| Type | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | |
| 125 | 160 | 200 | 230 | 250 | 300 | 350 | 375 | 475 | 540 | 750 | ||
| Geometric displacement (cm3/rev.) | 118 | 156 | 196 | 228 | 257 | 296 | 345 | 371 | 462 | 540 | 745 | |
| Max. speed (rpm) | cont. | 360 | 375 | 330 | 290 | 290 | 250 | 220 | 200 | 160 | 140 | 100 |
| int. | 490 | 470 | 425 | 365 | 350 | 315 | 270 | 240 | 195 | 170 | 120 | |
| Max. torque (N•m) | cont. | 325 | 450 | 530 | 625 | 700 | 810 | 905 | 990 | 1085 | 980 | 1050 |
| int. | 380 | 525 | 600 | 710 | 790 | 930 | 1035 | 1140 | 1180 | 1240 | 1180 | |
| peak | 450 | 590 | 750 | 870 | 980 | 1120 | 1285 | 1360 | 1260 | 1380 | 1370 | |
| Max. output (kW) | cont. | 12.0 | 15.0 | 15.5 | 16.0 | 17.5 | 18.0 | 17.5 | 16.5 | 14.5 | 11.5 | 8.0 |
| int. | 14.0 | 17.5 | 18.0 | 19.0 | 20.0 | 21.0 | 20.0 | 19.0 | 16.5 | 15.0 | 10.0 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 17.5 | 14 | 10.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 19 | 17.5 | 12 | |
| peak | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 20.5 | 20.5 | 14 | |
| Max. flow (L/min) | cont. | 45 | 60 | 70 | 70 | 75 | 80 | 80 | 75 | 75 | 75 | 75 |
| int. | 60 | 75 | 85 | 85 | 90 | 95 | 95 | 90 | 90 | 90 | 90 | |
When Parker motor users come to us looking for TG or TF hydraulic motors, we will recommend Hanjiu BMER series motors as replacements.
The reason is that BMER has a wide range of displacement, flange, oil port, shaft and hundreds of options to match the installation and application needs of different Parker motor users. This BMER motor features selectable valve cavacity in flange position. The valve cavacity of ParkerTG and TF motors is under the motor, while Hanjiud’s design is at the flange position. Compatible with Parker TG valve cavacity function in terms of performance. More compact and concise in design. Better cost control from a cost perspective. This motor is suitable for customers who pursue quality without paying too much for brand premiums. If you are an OEM, this motor can help you obtain the necessary performance while saving unnecessary expenses. If you are a hydraulic motor importer, this motor can complement the shortcomings of your existing products, provide your customers with another choice, demonstrate your professionalism in the field of hydraulic motors, and meet the needs of your target customer groups.
More BMER series to match Parker TF series
More Parker replacement motor available:
Hanjiu Technology Company production of LSHT hydraulic motors, a wide variety of types, their production of motors for the main markets of hydraulics including construction, agriculture, traditional industry, metallurgy, mining, shipbuilding and horticulture and other fields, Hanjiu company relies on its strong global distribution network to sell their products to various countries and regions, in many places can appreciate the Hanjiu technology hydraulic motors to provide fast and convenient services.
