Product Details:
Payment & Shipping Terms:
|
| Product: | Low Speed, High Torque (LSHT) Motor | Model No.: | BMER-3-240 |
|---|---|---|---|
| Displacement: | 240cc | Flange: | 4 Bolt Wheel Mount |
| Shaft: | Tappered Shaft | Port: | SAE Ports |
| Rotation: | Standard | Color: | Black |
| Highlight: | 103-6988 hydraulic wheel motor,TF0240US081AADD hydraulic wheel motor,TF0240US081AADD parker wheel motor |
||

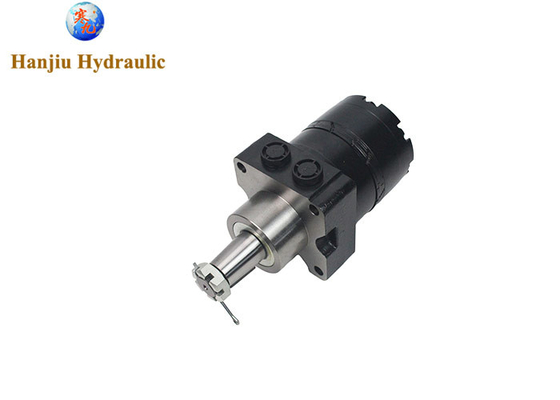

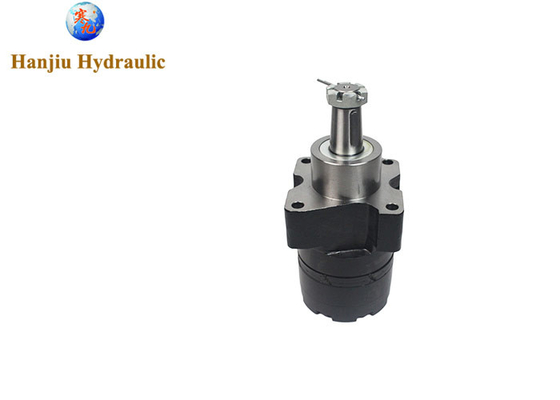

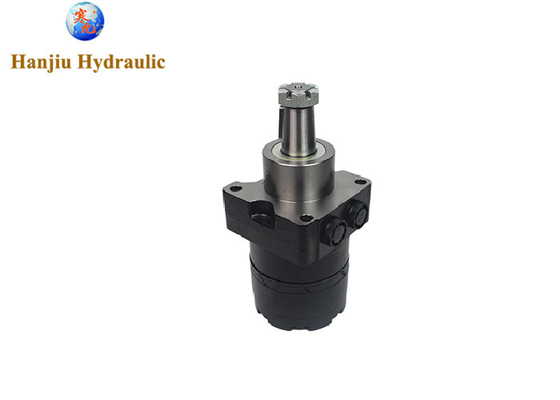

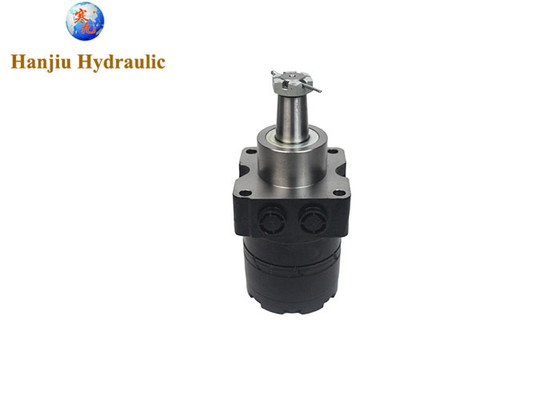

Wheel Motor Replacement for Exmark 1-523328 Toro 103-6988 Oregon 27-500 Parker TF0240US081AADD Stens 025-503
Quick review:
| Product | torqmotor, wheel drive motor |
| Model No. | BMER-2-250-WS-T31-R |
| Displacement | 250CC |
| Flange | 4 bolts wheel shaft, 147.6mm |
| Shaft | tappered shaft |
| Port |
7/8-14 UNF
|
| Rotation | Standard |
| Color | Black |
| Brand | Hanjiu |
Replaces part number:
For Exmark 1-523328 1523328
For Toro 103-6988 1036988
For Oregon 27-500 27500
For Parker TF0240US081AADD
For Stens 025-503 025503
Application:
Lazer Z Serial No. 102,000-370,000 52", 60" and 72" decks;
Lazer Z HP Serial No. 160,000-370,000, 44", 48" and 52" decks, Z 500's Z Master, 2004 & Newer 60" and 72" ;
Z 250's Z Master 742XX Series, 1999-2040, 52", 62" and 72" decks
Specification:
| Type | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | |
| 125 | 160 | 200 | 230 | 250 | 300 | 350 | 375 | 475 | 540 | 750 | ||
| Geometric displacement (cm3/rev.) | 118 | 156 | 196 | 228 | 257 | 296 | 345 | 371 | 462 | 540 | 745 | |
| Max. speed (rpm) | cont. | 360 | 375 | 330 | 290 | 290 | 250 | 220 | 200 | 160 | 140 | 100 |
| int. | 490 | 470 | 425 | 365 | 350 | 315 | 270 | 240 | 195 | 170 | 120 | |
| Max. torque (N•m) | cont. | 325 | 450 | 530 | 625 | 700 | 810 | 905 | 990 | 1085 | 980 | 1050 |
| int. | 380 | 525 | 600 | 710 | 790 | 930 | 1035 | 1140 | 1180 | 1240 | 1180 | |
| peak | 450 | 590 | 750 | 870 | 980 | 1120 | 1285 | 1360 | 1260 | 1380 | 1370 | |
| Max. output (kW) | cont. | 12.0 | 15.0 | 15.5 | 16.0 | 17.5 | 18.0 | 17.5 | 16.5 | 14.5 | 11.5 | 8.0 |
| int. | 14.0 | 17.5 | 18.0 | 19.0 | 20.0 | 21.0 | 20.0 | 19.0 | 16.5 | 15.0 | 10.0 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 17.5 | 14 | 10.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 19 | 17.5 | 12 | |
| peak | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 20.5 | 20.5 | 14 | |
| Max. flow (L/min) | cont. | 45 | 60 | 70 | 70 | 75 | 80 | 80 | 75 | 75 | 75 | 75 |
| int. | 60 | 75 | 85 | 85 | 90 | 95 | 95 | 90 | 90 | 90 | 90 | |
