| Product Name: | Hydraulic Orbital Motors | Displacement: | 36cc,50cc,80cc,100cc,125cc,160cc......500cc |
|---|---|---|---|
| Applications: | Auger,trench,agricultural Machine | Replacement: | OMR, M+S MR |
| Max.torque: | Peak 840 N.M | Max.flow: | Cont 60/int.75 L/min |
| Highlight: | BMRWN315 orbit hydraulic motor,danfoss hydraulic motor mr 315,BMRWN315 danfoss hydraulic motor |
||

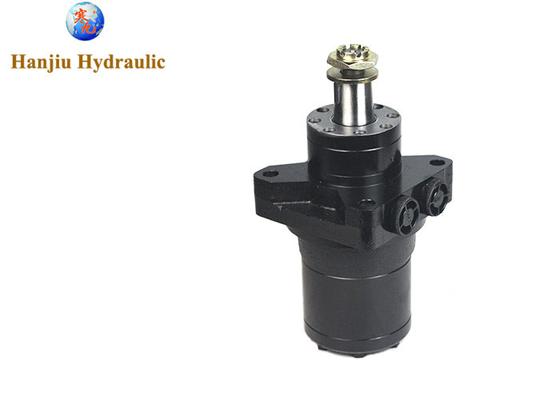

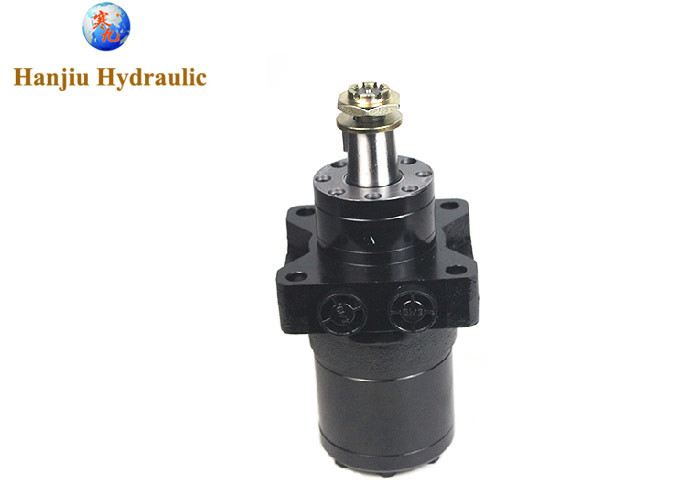

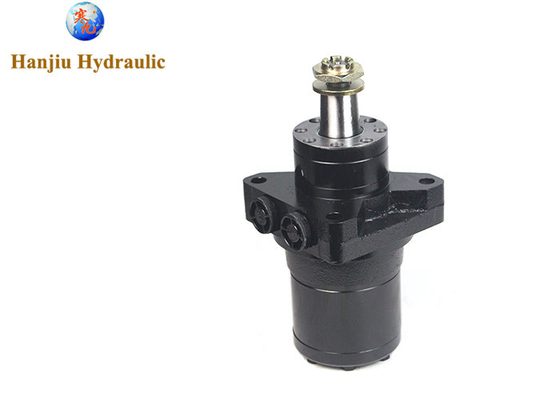

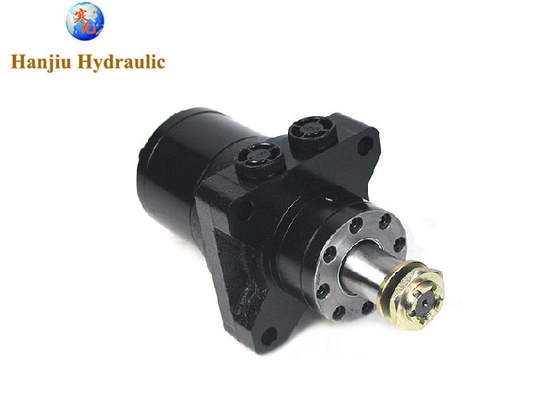

Danfoss 151H3052 OMEW 315,11070954 HYDROMOTOR, MR 315 Orbital motor
Product details:
| product type | BMR motors |
| displacement | 315cc |
| flange | 4-Ø13.5 Wheel Mount , Ø82.5×9.4 |
| shaft |
1:10Cone shaft Ø35, parllel key B6×6×20
|
| oil ports | G1/2 manifold mount 4-M8,G1/4 |
Main Specifications:
Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:
| Type | BMR BMRS 36 |
BMR BMRS 50 |
BMR BMRS 80 |
BMR BMRS 100 |
BMR BMRS 125 |
BMR BMRS 160 |
BMR BMRS 200 |
BMR BMRS 250 |
BMR BMRS 315 |
BMR BMRS 375 |
|
| Geometric displacement (cm3/rev.) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 | |
| Max. speed (rpm) | cont. | 1085 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
| int. | 1220 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 | |
| Max. torque (N·m) | cont. | 72 | 100 | 195 | 240 | 300 | 360 | 360 | 390 | 390 | 365 |
| int. | 83 | 126 | 220 | 280 | 340 | 430 | 440 | 490 | 535 | 495 | |
| peak | 105 | 165 | 270 | 320 | 370 | 460 | 560 | 640 | 650 | 680 | |
| Max. output (kW) | cont. | 8.5 | 9.5 | 12.5 | 13 | 12.5 | 12.5 | 10 | 7 | 6 | 5 |
| int. | 9.8 | 11.2 | 15 | 15 | 14.5 | 14 | 13 | 9.5 | 9 | 8 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 17.5 | 17.5 | 17.5 | 16.5 | 13 | 11 | 9 | 7 |
| int. | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 15 | 13 | 10 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 17.5 | 15 | |
| Max. flow (L/min) | cont. | 40 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 45 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8 | 8.5 | 9 | 9.5 | |
The orbital hydraulic motor also has the advantage of being compact and lightweight, which facilitates its integration into equipment and machines. Additionally, it is easy to maintain and repair, reducing maintenance costs.
In industry, orbital hydraulic motor is used in many fields such as agriculture, construction, mining and automobile. It is used to power equipment such as cranes, bulldozers, drills and agricultural machinery.
In conclusion, the orbital hydraulic motor is an essential device in many industrial sectors. With its efficiency, durability and versatility, it contributes to optimizing machine performance and increasing productivity in various applications.
HANJIU manufactures economical hydraulic motors, hydraulic directional valves and Orbitrol steering for all over the world.
