Product Details:
Payment & Shipping Terms:
|
| Product: | Low Speed, High Torque (LSHT) Motor | Model No.: | BMER-2-240-WH-B |
|---|---|---|---|
| Displacement: | 240cc | Flange: | 4 Bolt Wheel Mount |
| Shaft: | STRIGHT KEY SHAFT | Port: | Manifold Ports |
| Rotation: | Standard | Color: | Black |
| Highlight: | TG0240HK460 gerotor motor,Marine Equipments gerotor motor,Marine Equipments char lynn gerotor motor |
||

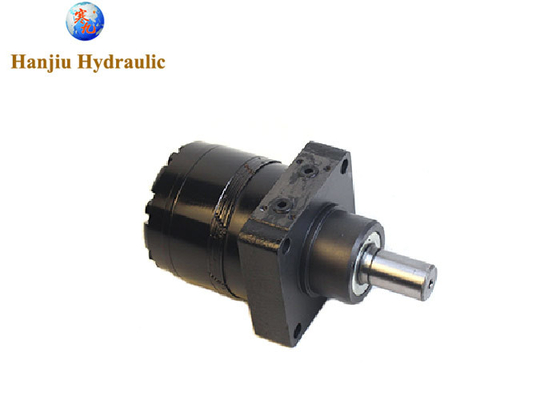

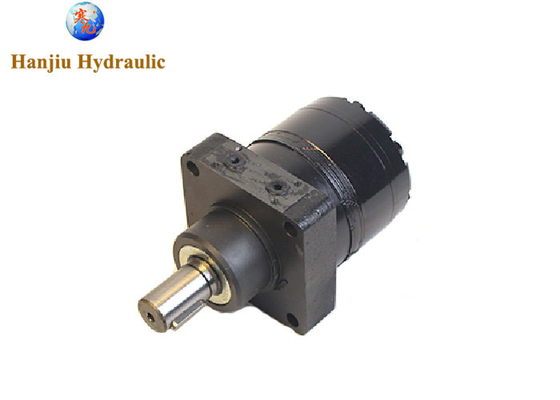

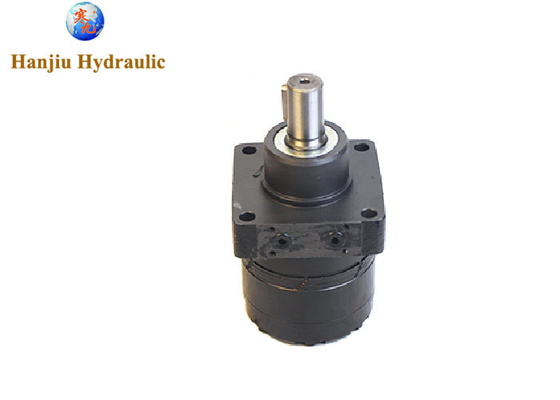

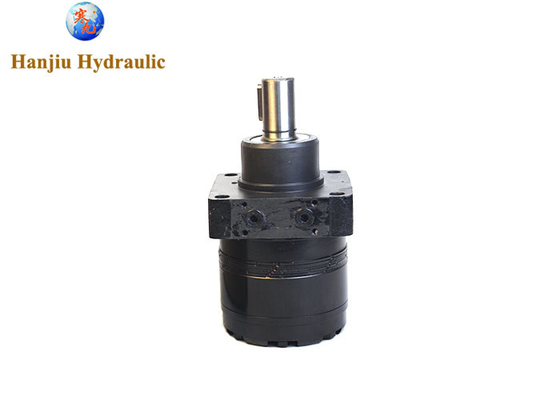

TG0240HK460 gerotor motor,4 bolt wheel mount,manifold port threads for marine equipments
Quick review:
| Product | Low Speed, High Torque (LSHT) Motor |
| Model No. | BMER-2-240-WH-B-R |
| Displacement | 240CC |
| Flange | 4 bolts wheel shaft, 147.6mm |
| Shaft | 32mm,key shaft |
| Port | manifold M6X12 |
| Rotation | Standard |
| Color | Black |
| Brand | Hanjiu |
Specification:
| Type | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | |
| 125 | 160 | 200 | 230 | 250 | 300 | 350 | 375 | 475 | 540 | 750 | ||
| Geometric displacement (cm3/rev.) | 118 | 156 | 196 | 228 | 257 | 296 | 345 | 371 | 462 | 540 | 745 | |
| Max. speed (rpm) | cont. | 360 | 375 | 330 | 290 | 290 | 250 | 220 | 200 | 160 | 140 | 100 |
| int. | 490 | 470 | 425 | 365 | 350 | 315 | 270 | 240 | 195 | 170 | 120 | |
| Max. torque (N•m) | cont. | 325 | 450 | 530 | 625 | 700 | 810 | 905 | 990 | 1085 | 980 | 1050 |
| int. | 380 | 525 | 600 | 710 | 790 | 930 | 1035 | 1140 | 1180 | 1240 | 1180 | |
| peak | 450 | 590 | 750 | 870 | 980 | 1120 | 1285 | 1360 | 1260 | 1380 | 1370 | |
| Max. output (kW) | cont. | 12.0 | 15.0 | 15.5 | 16.0 | 17.5 | 18.0 | 17.5 | 16.5 | 14.5 | 11.5 | 8.0 |
| int. | 14.0 | 17.5 | 18.0 | 19.0 | 20.0 | 21.0 | 20.0 | 19.0 | 16.5 | 15.0 | 10.0 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 17.5 | 14 | 10.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 19 | 17.5 | 12 | |
| peak | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 20.5 | 20.5 | 14 | |
| Max. flow (L/min) | cont. | 45 | 60 | 70 | 70 | 75 | 80 | 80 | 75 | 75 | 75 | 75 |
| int. | 60 | 75 | 85 | 85 | 90 | 95 | 95 | 90 | 90 | 90 | 90 | |
Hanjiu Technology Co., Ltd. is the first factory in North China to produce and export hydraulic swing motors and steering devices, and since 13 years ago, Hanjiu has been carrying out the production of hydraulic foreign trade orders. There are stable raw materials, sales, transportation and other channels, we have our own factory, for special orders OEM, but also innovative production of Hanjiu's own hydraulic motor, one of the characteristics of Hanjiu hydraulic motor is that it has a wealth of optional specifications, users can flexibly adjust according to specific application needs. Another highlight is the high power density, which provides a strong power delivery in a compact size. The superiority of total efficiency is also one of the highlights of Hanjiu hydraulic motor, which maximizes the use of hydraulic energy and ensures that the energy utilization of the system is optimized. At the same time, high initial efficiency makes the motor more rapid and efficient when starting, provides fast response ability for the equipment, with the most advanced technology, the motor and steering unit structure is more compact, smaller size, low noise, in all kinds of work scenarios can play excellent performance, can be with Danfoss, Char Lynn, M+S, Rexroth series interchangeable, high quality, so that we enjoy the trust of customers, enjoy a good reputation at home and abroad. In addition to the complete range of hydraulic motor models with displacement from 50ml/r to 1000ml/r, steering displacement from 80ml/r to 1000ml/r, cylindrical bore up to 1200mm, length to 10000mm, pressure to 40MPa, they can be perfectly used in light, medium and heavy vehicles.
As Orbital Motor Manufacturers, Hanjiu Technology Company and our factories are committed to building international brands, for the quality requirements of Orbital Motor, we have not the slightest slack, with high-quality products and price advantages, we have reached different degrees of cooperative relations with dealers in Southeast Asia, the Middle East, South America, North America, Northern Europe, Africa, India and other countries and regions. Overall, working with Hanjiu must be a good decision.
