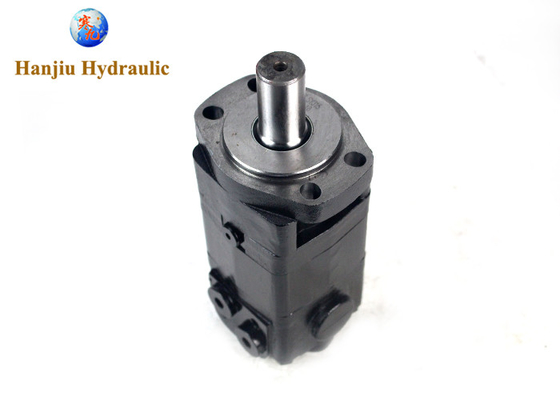

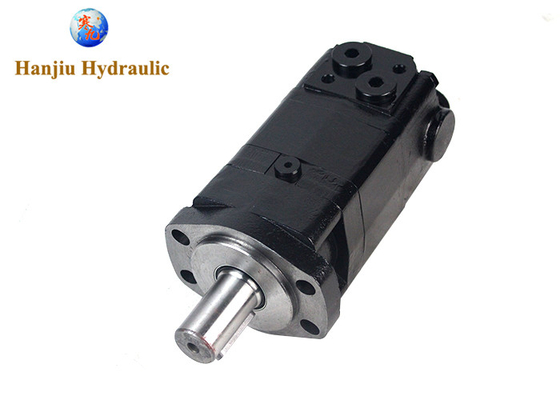

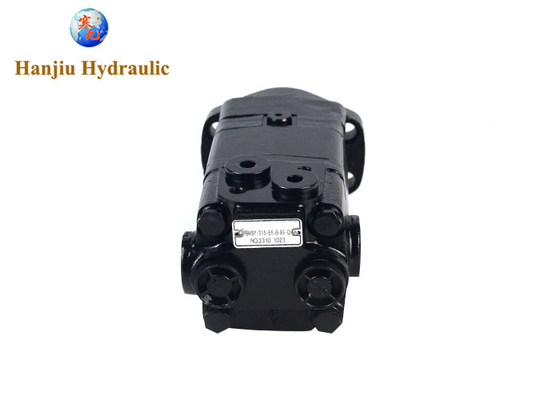

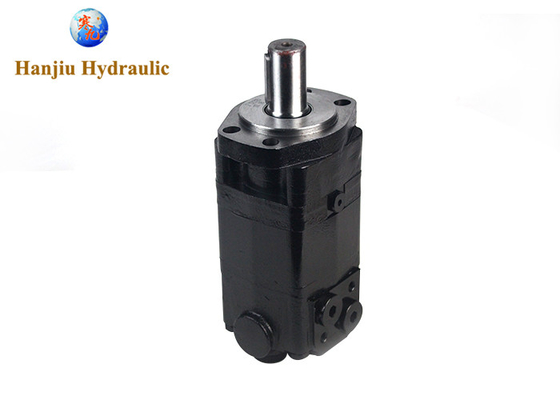

MS Series Orbit Hydraulic Motor 315 Cc/Re Straight Keyed Shaft 32 Mm With High Pressure Shaft Seal

MS series orbit hydraulic motor, 315 cc/re ,straight keyed shaft 32 mm with high pressure shaft seal

 Details as below:

type code :MLHS 315 M/R 6

• Port Size:rear port G1/2
• flange: 4 holes mageneto flange
• displacement:315cc
• Shaft:32mm straight key shaft
• Port Location:bottom ported
• Flow Rating :75l/min
• Max Speed:cont.240rpm,int.280 rpm
• Shaft seal:High pressure seal Kit
• function:low leakage
• Country of Manufacture China


Main Specifications:



* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

Application:

Conveyors

Metal working machines

Road building machines

Mining machinery

Food industries

Agricultural machines

Special vehicles etc

Orbital motor is widely used in daily life, although a variety of working environments are different, but maintenance skills are similar, here Hanjiu for you to introduce some rail motor maintenance skills, hope that you in the process of use to minimize the failure caused by human factors.

Starting from the operation, we need to check whether the hydraulic pump and hydraulic motor are installed correctly and firmly, whether the coupling installation meets the requirements, and whether the coupling is stuck by turning the coupling by hand. After the first system operation or long-term storage, clean hydraulic oil should be filled into the pump and motor housing as designed before start-up. Otherwise, you will not be able to make sure that the product components need to use rotation correctly and accurately at startup. Adjust the overflow in the system to a small size and do not start with the load. Before the first run, the spring housing must be filled with oil. When the pump is first run, an open circuit must be used and the system must be operated under pressure. Pressure can usually be established when the hydraulic oil pump and circuit are quickly injected and drained and when the air is completely empty. After jogging at startup, continue to develop and operate after normal work. After running for a certain amount of time, it will not lead to some undesirable social phenomena, and gradually adjust to its own required pressure and flow. The larger adjustable value of the safety pressure relief valve shall not exceed the national regulations. If you want to use the motor again that has not been used for more than 3 months, let it dry for 30 minutes first. If it is found that the normal temperature rise, leakage, vibration or sound are found in the process of enterprise operation and management, it should be stopped immediately for inspection. When the motor is stopped, it must be unloaded first, and then stopped. Regular inspection is equally important to confirm the correct operating status and function of each component, such as observation, measurement, trial operation, etc.; This includes cleaning and replacing parts such as changing oil, replacing seals, etc.

After reading the above content, I believe that you have a certain understanding of the maintenance of Orbital motor, please allow me to recommend an orbital motor product from Hanjiu company, Hanjiu is BMPW400% compatible, and can be interchangeable with Danfoss, Eaton and M+S. Widely used in forklifts, lawn mowers, lifts, loaders and excavators and other machinery. Compact design with spool valve motor and Gerol and interchangeable with Danfoss, Eaton and M+S. Competitive price and durable quality, in addition we will provide you with a one-year warranty to escort your production throughout the process!
