Product Details:
Payment & Shipping Terms:
|
| Type: | Hydraulic Heavy Disc Motor | Model No.: | BMK6-500 |
|---|---|---|---|
| Max.torque(N.m): | Cont.1480N.m/int.1890N.m | Max.speed(rpm): | Cont.240rpm/int.360rpm |
| Max Pressure Drop: | Cont.17.5Mpa/int.22.5Mpa | Max Flow: | Cont.150l/min/int.225l/min |
| Highlight: | 112-1068-006 Char Lynn Hydraulic Motor,Heavy Disc Char Lynn Hydraulic Motor,112-1068-006 Char Lynn Motors |
||

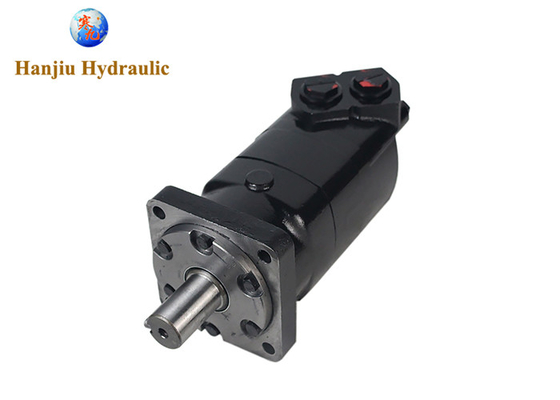

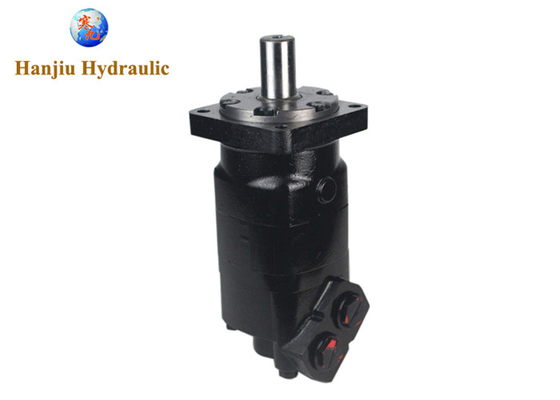

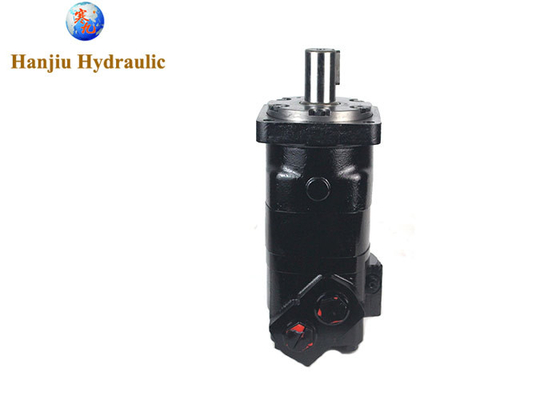

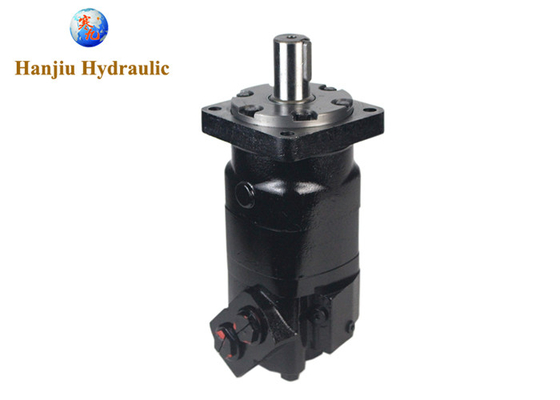

Danfoss geroler motor 112-1068-006 Char Lynn Hydraulic Motor,1 1/2 inch Straight key shaft,1 5/16 O-ring ports
Hanjiu BMK6 = EATON CHAR-LYNN 6000 = EATON CHAR-LYNN 6K = OMT = M+S MT
Charlynn code 112-1068-006
Sauer danfoss 1121068006
Model number: BMK6-500
Displacement: 30.00
Flange: 4x13.5 Square flange
Pilot: 127x12.5mm
Mounting distance: 161.9mm
Shaft:38.1mm key shaft
Port:1 5/16 O-ring
Drain port: 7/16-20 UNF
Paint: Black
Main Specification
| Type |
|
BMK6 200 |
BMK6 250 |
BMK6 315 |
BMK6 400 |
BMK6 500 |
BMK6 630 |
BMK6 800 |
BMK6 1000 |
|
| Geometric displacement (cm3 /rev.) |
195.6 | 246.1 | 311.6 | 391.3 | 490.8 | 623 | 802.4 | 981.6 | ||
| Main speed(rpm) |
cont. |
765 |
610 | 480 | 382 | 304 | 240 | 186 | 152 | |
| int. | 865 | 830 | 690 | 570 | 455 | 360 | 280 | 230 | ||
| Max torque N.M |
cont. |
565 | 710 | 920 | 1160 | 1445 | 1480 | 1580 | 1675 | |
| int. | 840 | 1080 | 1325 | 1625 | 1880 | 1890 | 1880 | 1860 | ||
| Max pressure drop (Mpa) | cont. | 20 | 20 | 20 | 20 | 20 | 17.5 | 14 | 14 | |
| int. | 30 | 30 | 30 | 30 | 27.5 | 22.5 | 15.5 | 14 | ||
| Weight (kg) | 26.3 | 26.8 | 27.3 | 28 | 28.8 | 29.6 | 30.5 | 32 | ||
The Orbital Motor BMK6 series motor offers numerous benefits to its users. Firstly, its high efficiency ensures minimal energy loss during operation, resulting in reduced fuel consumption and lower operating costs. This advantage is especially significant in industries that heavily rely on hydraulic systems, such as mining and forestry.
Moreover, the Orbital Motor BMK6 series motor is highly reliable and durable. Its robust construction and advanced sealing technology make it resistant to harsh operating conditions, including extreme temperatures, dust, and moisture. This reliability ensures extended lifespan and reduced maintenance requirements, enhancing overall productivity and cost-effectiveness.
Application:Mobile equipment, Snow Removal, Mowing, Spayer, Trencher, Wood products
The Orbital Motor BMK6 series motor is a game-changer in the field of hydraulic systems. Its innovative features, such as orbital principle, high torque density, and reliability, make it an ideal choice for a wide range of applications. With its ability to enhance efficiency, reduce operating costs, and improve productivity, the Orbital Motor BMK6 series motor is undoubtedly a revolutionary hydraulic solution.
HANJIU Technology’s Orbital Motor is internationally renowned
