| Features: | White 500/501 Interchangeable | Product: | Low Speed-High Torque Hydraulic Motors |
|---|---|---|---|
| Model No.: | BMER-2-650-FD-B1-TRB | Size: | 650 Ml/r |
| Flange: | 6-Ø13.5 Magneto Mount,Pilot Ø82.55×2.8 | Shaft: | ShaftØ32, Parallel Key 10×8×45 |
| Rotation: | Clockwise | Port: | Ports G1/2 |
| Highlight: | 650 ML/R White Hydraulic Motor,Clockwise Orbit Hydraulic Motor,650 ML/R Orbit Hydraulic Motor |
||

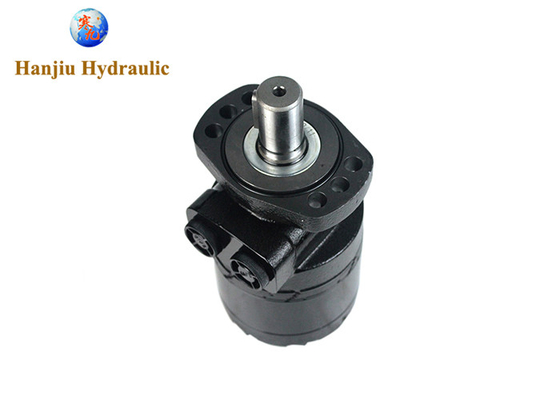

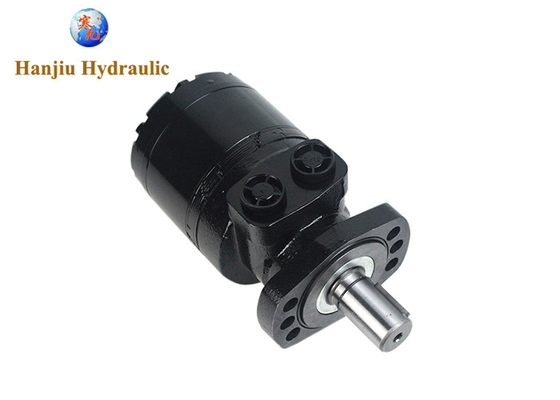

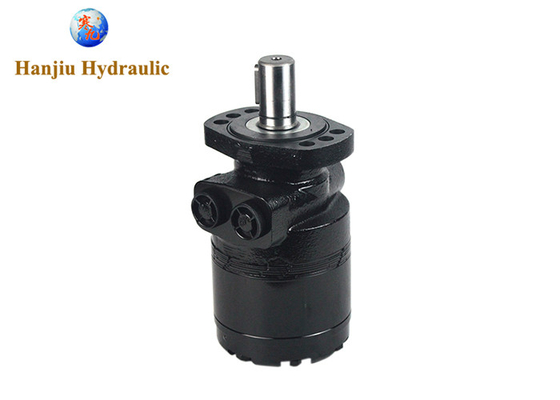

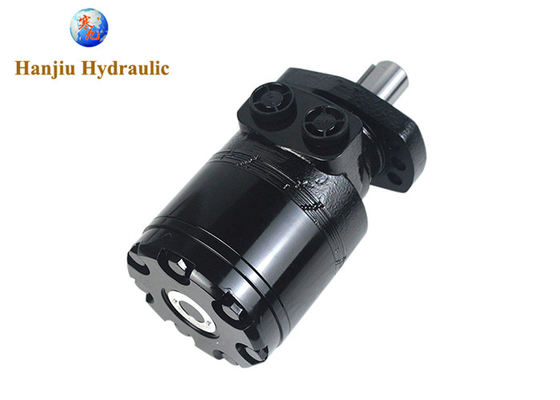

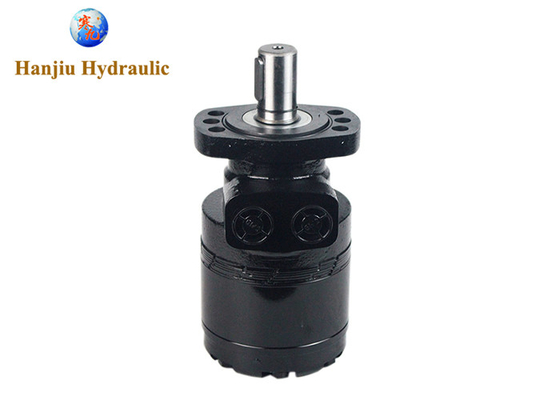

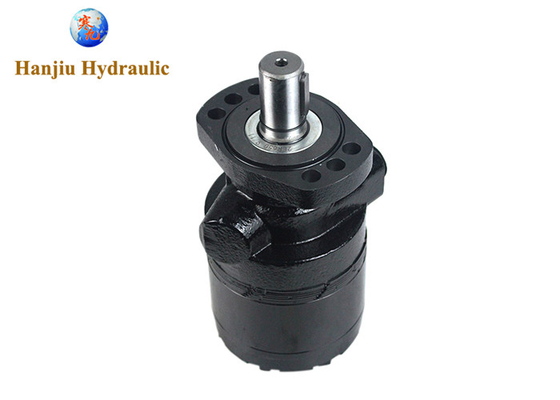

Hydraulic Orbital Motors BMER White 500/501 interchangeable Low Speed-High Torque Hydraulic Motors
Quick review:
Hanjiu BMER = White 500 / 501
Model Number:
BMER-2-650-FD-B1-TRB
Details:
| Product | Low Speed-High Torque Hydraulic Motors |
| Model No. | BMER-2-650-FD-B1-TRB |
| Size | 650 ml/r |
| Flange | 6-Ø13.5 Magneto Mount,Pilot Ø82.55×2.8 |
| Shaft | ShaftØ32, Parallel key 10×8×45 |
| Rotation | Clockwise |
| Port | Ports G1/2 |
| Features | White 500/501 interchangeable |
Specification:
| Type | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | ||
| 125 | 160 | 200 | 230 | 250 | 300 | 350 | 375 | 475 | 540 | 650 | 750 | |||
| Geometric displacement (cm3/rev.) | 118 | 156 | 196 | 228 | 257 | 296 | 345 | 371 | 462 | 540 | 647 | 745 | ||
| Max. speed (rpm) | cont. | 360 | 375 | 330 | 290 | 290 | 250 | 220 | 200 | 160 | 140 | 115 | 100 | |
| int. | 490 | 470 | 425 | 365 | 350 | 315 | 270 | 240 | 195 | 170 | 138 | 120 | ||
| Max. torque (N•m) | cont. | 325 | 450 | 530 | 625 | 700 | 810 | 905 | 990 | 1085 | 980 | 1015 | 1050 | |
| int. | 380 | 525 | 600 | 710 | 790 | 930 | 1035 | 1140 | 1180 | 1240 | 1250 | 1180 | ||
| peak | 450 | 590 | 750 | 870 | 980 | 1120 | 1285 | 1360 | 1260 | 1380 | 1380 | 1370 | ||
| Max. output (kW) | cont. | 12.0 | 15.0 | 15.5 | 16.0 | 17.5 | 18.0 | 17.5 | 16.5 | 14.5 | 11.5 | 10.0 | 8.0 | |
| int. | 14.0 | 17.5 | 18.0 | 19.0 | 20.0 | 21.0 | 20.0 | 19.0 | 16.5 | 15.0 | 12.0 | 10.0 | ||
| Max. pressure drop (MPa) | cont. | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 17.5 | 14 | 12.0 | 10.5 | |
| int. | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 19 | 17.5 | 15.5 | 12 | ||
| peak | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 20.5 | 20.5 | 17.5 | 14 | ||
| Max. flow (L/min) | cont. | 45 | 60 | 70 | 70 | 75 | 80 | 80 | 75 | 75 | 75 | 75 | 75 | |
| int. | 60 | 75 | 85 | 85 | 90 | 95 | 95 | 90 | 90 | 90 | 90 | 90 | ||
The BMER-2 series motor adapts the GEROLER gear set design with high speed distribution flow and high pressure. These motors can be supplied with various options for multifunctional operations in accordance with the application requirements. The output shaft tapered roller bearings permit high axial and radial forces offering a smooth operation during low pressure start up and high pressure
operation. These low weight advanced construction design motors are manufactured in accordance with the requirements of ISO 9001-2000 quality system.
More BMER series to match White drive motors
Hanjiu Technology Company production of LSHT hydraulic motors, a wide variety of types, their production of motors for the main markets of hydraulics including construction, agriculture, traditional industry, metallurgy, mining, shipbuilding and horticulture and other fields, Hanjiu company relies on its strong global distribution network to sell their products to various countries and regions, in many places can appreciate the Hanjiu technology hydraulic motors to provide fast and convenient services.
