Product Details:
Payment & Shipping Terms:
|
| Model No.: | 2P40 | Warranty: | 12-18 Months |
|---|---|---|---|
| Spool: | 1, 2, 3, 4, 5, 6, ... | Flow: | 40lt, 50lt, 60lt, 80lt, 100lt, 120lt, 140lt, ... |
| Spool Function: | O/Y/A | Oil Ports: | G1/2 |
| Highlight: | p40b-qtw-ot monoblock hydraulic directional control valve,manual monoblock hydraulic directional control valve,40 liters monoblock valve hydraulic |
||

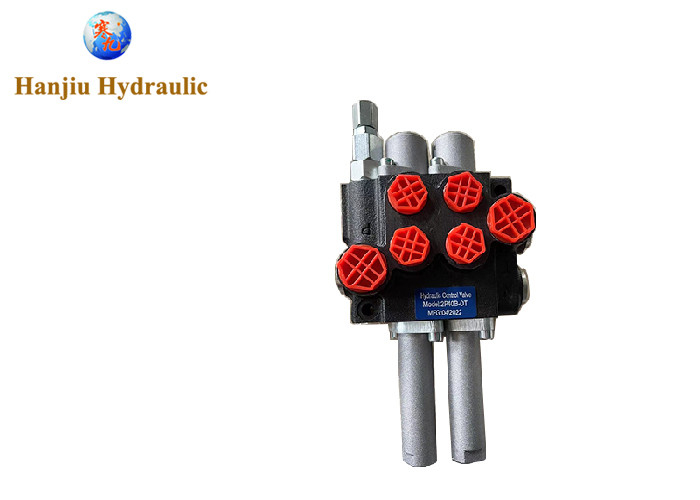

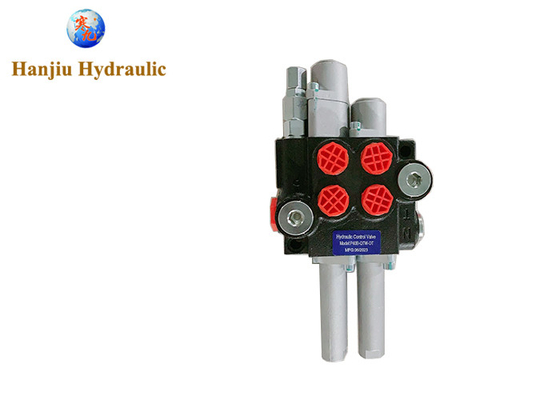

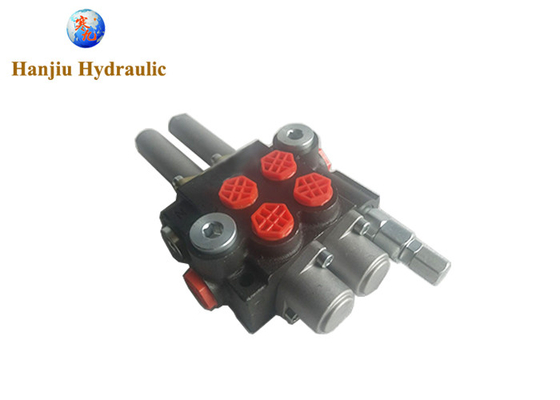

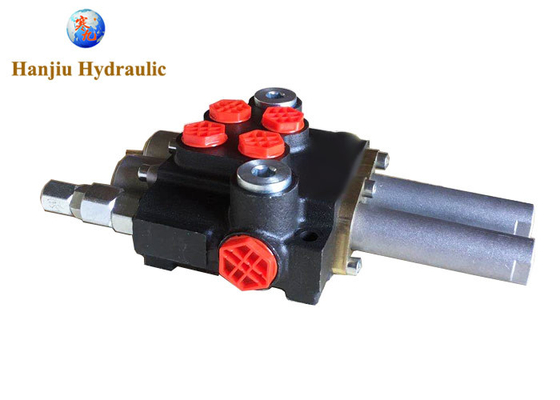

Hydraulic Control Valves 40Liters Directional Manual Valves monoblock valves P40B-QTW-OT
| Ambient temperature | -40C...+60C |
| Viscosity | 12 ...800 mm2/s |
| Fluid temperature | -15C...+80C |
| Filtration | 10 to NAS 1638 |
| Max operating pressure | 250 bar |
| Back pressure | 50 bar |
| Nominal flow | 40 l/min |
| Leakage(A,B-T) | 15cm3/min at 120bar |
| Spool stroke | 6 mm |
| Actuating force | < 200 N |
| Modification/ Spools | with 1 to 7 |
Details:
flow rate:40liters
control type: one with 3 position , the other is 4 position
application:front loader, agricultural machines
type code:P40B-QTW-OT
In the market, there are many directional valve manufacturers, each manufacturer's production advantages are not exactly the same, let me introduce you to the advantages of HANJIU company:
1. The company has more than ten years of production experience, and is now the largest hydraulic products production company in northern China.
2. There are three professional production lines, using German advanced production equipment, and a professional young production and R&D team.
3. Adhere to the business philosophy of quality first and customer first, ensure that all product quality is worry-free, and have a very perfect after-sales service, the product has a one-year warranty period, during which technical support is provided.
4. The products are cost-effective, good quality, preferential price, and excellent quantity.
5. Developed sales network, good reputation, many repeat customers, customers in more than 30 countries in the world.
6. There are many types of products, many types, many models, and the models on the market are produced.
The directional valve is widely used, if you have relevant needs, you can contact us, if you need other hydraulic products, please feel free to contact us.
