Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Valve Type: | Directional Control Valve |
|---|---|---|---|
| Valve Body Material: | Brass, Stainless Steel, Carbon Steel | Port Size: | G3/4 |
| Rated Flow: | 80 Lpm | Operating Pressure: | 250 Bar |
| Operating Range: | 15 - 75 Mm2/s | Temperature Range: | -40° ~ 80° |
| Highlight: | 6 spool hydraulic control valve,80 lpm hydraulic control valve,80 lpm hydraulic directional control valve |
||

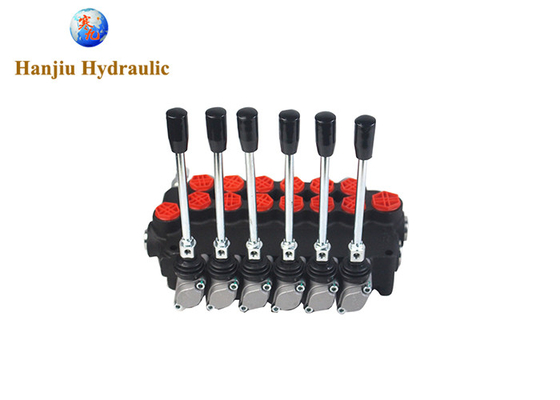

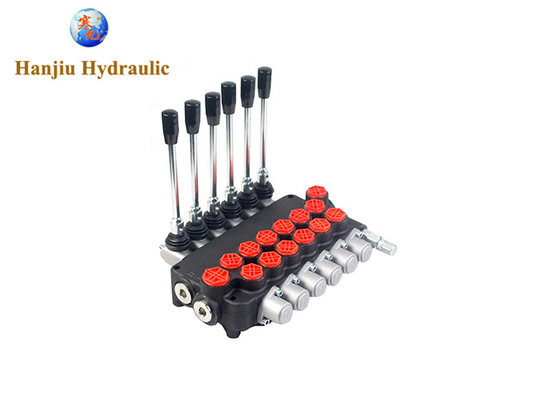

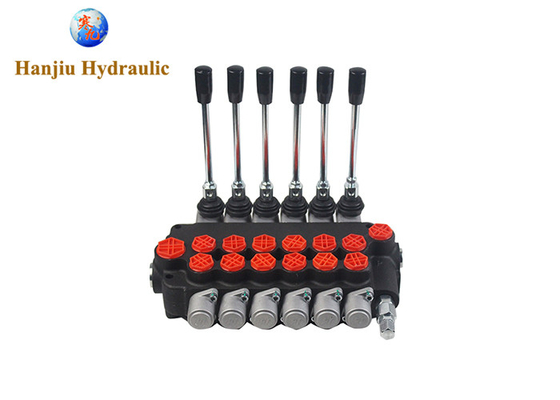

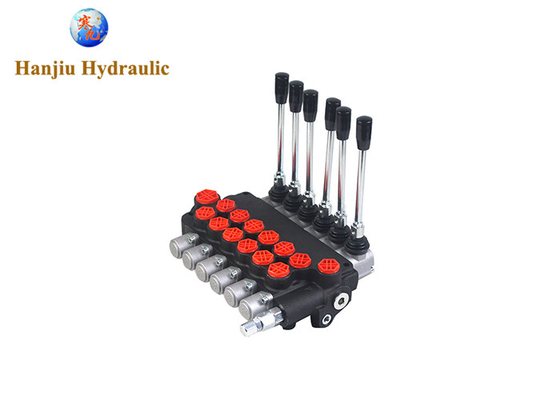

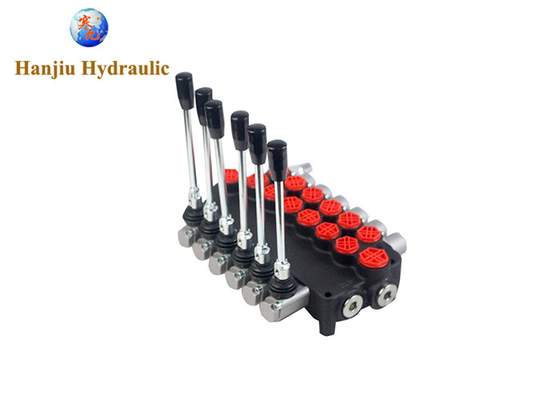

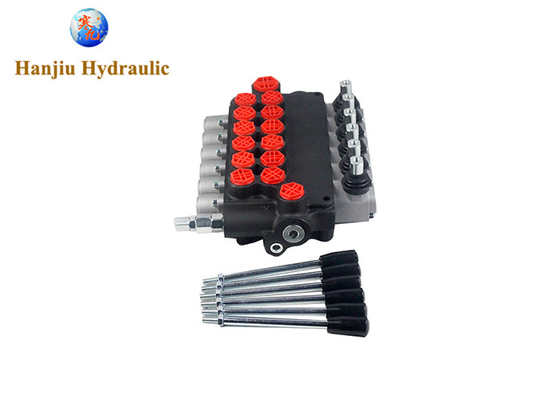

6P80 Directional Control Valve is a type of hydraulic valve used to control the direction of flow. It is designed to help the user control the flow of liquids and gases for various industrial purposes. This valve is available in a wide variety of Connection Types such as Thread, Flange, and Quick Connector. The Valve Seal Material used in this type of valve includes NBR, FKM, and PTFE. It is also available in various Number of Positions including 2-way, 3-way, 4-way. This valve is manufactured with high quality materials for long term durability and reliability. It is also designed to offer excellent performance in the toughest conditions. This valve can be used in various applications.
| Control type | Manual |
| Working fluid flow, l/min | 80 |
| Number of sections/spools | 6 |
| Design | Without fixation, With fixation |
| Type | 06P80 A1A1A1A1A8A8 |
| Air temperature, °C | -40...+60 |
| Working fluid temperature, °C | -18...+80 |
| Maximum operating pressure, bar | P=250; T=50; A, B=300 |
| Threaded connection | Metric (M) |
| Opening size for working fluid inlet - P | 22 |
| Hole sizes for connection to other hydraulic devices - A and B | 22 |
| The size of the hole for the outlet of the working fluid into the tank is T | 22 |
| Fastening | 3 holes for M8 bolts |
| Weight, kg | 11.4 |
| Delivery length, m | 0.3 |
| Delivery width, m | 0.33 |
| Delivery height, m | 0.15 |
The Directional Control Valve from Hanjiu offers superior performance and reliable operation. It is available in 2-way, 3-way and 4-way models, suitable for different applications. The valve body is made of brass, stainless steel or carbon steel.
The Hanjiu P80 Monoblock Hydraulic Valve is certified by CE and ISO, and the minimum order quantity is 100 pcs. The price is from 92 usd, and the standard export package ensures safe delivery. The delivery time is 25 to 35 days with 30% deposit and balance before shipping. The supply ability is 20000 pcs/month.
The Directional Control Valve of Hanjiu provides superior performance with reliable operation and long life. It is an ideal choice for fluid control applications.
Hanjiu's Directional Control Valve is certified by CE and ISO, and available for P40, P80, P120. Its valve body material is Brass, Stainless Steel, Carbon Steel, and valve seal material is NBR, FKM, PTFE. The minimum order quantity is 100 pcs, and its delivery time is 25 - 35 days. The payment terms are 30% deposit, balance before shipping, and the price is from 16.5 usd.
We provide technical support and services for our Directional Control Valves, to ensure that your product works as intended and provides you with the maximum benefit.
Our technical support staff are available to answer any questions you may have and provide advice on installation, maintenance and troubleshooting of the product. We also offer a comprehensive range of spare parts and accessories for our Directional Control Valves.
We are committed to providing the best possible service to our customers and strive to ensure that our products are reliable and of the highest quality.
